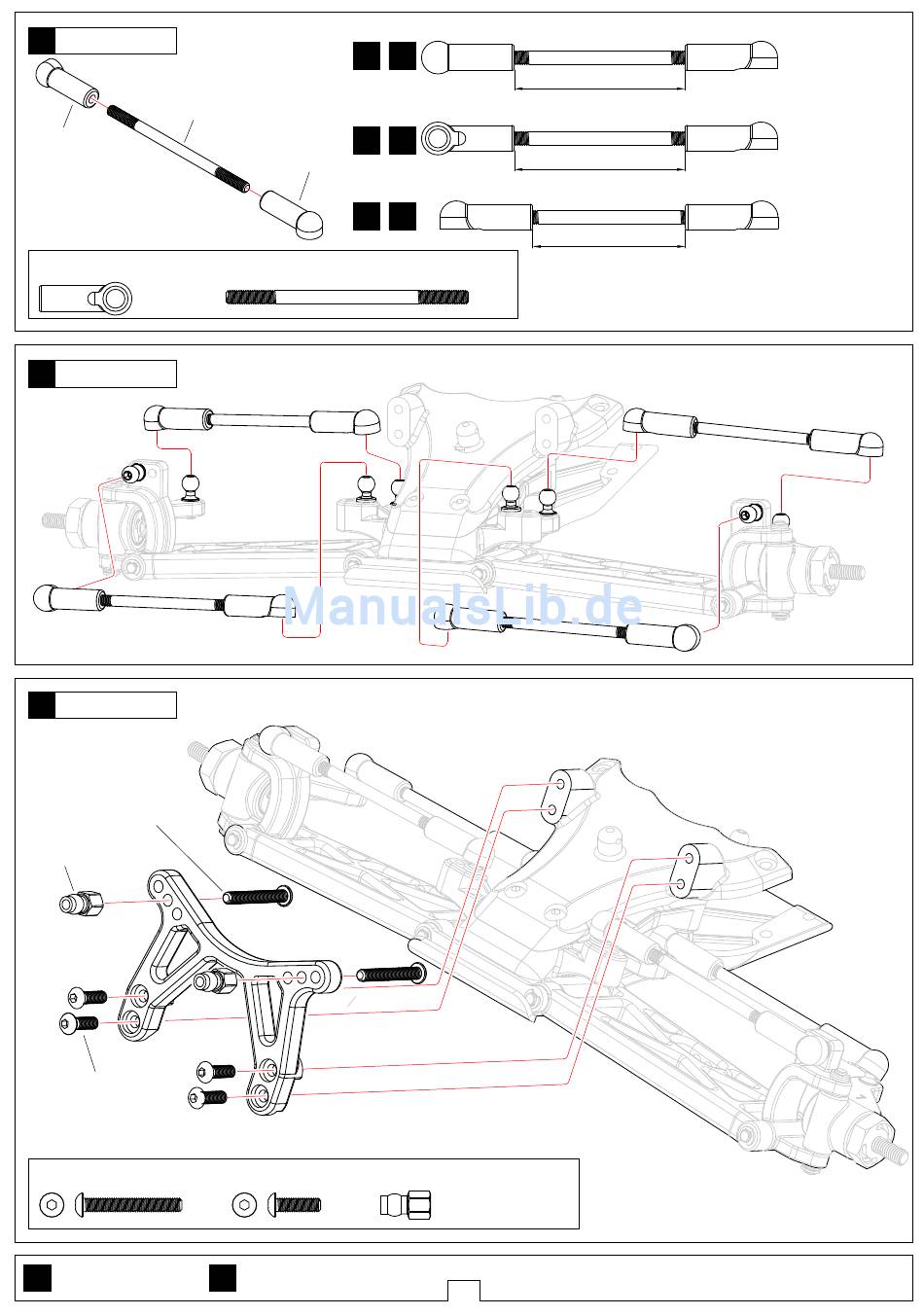

ANSMANN Racing MAD MONKEY Anleitung Seite 7

7 Front Suspension
125000518
125000512
125000512
4.8mm Ball End(Long)
............8
8 Front Suspension
Front Suspension
9
125000480
(M3x22)
125000462
125000480
(M3x10)
125000480 M3x22 Screw
......2
Ture-to -scale diagram
1:1
1:1
1:1
125000512
1:1
125000518 3x54 Turnbuckle
125000480
125000462 5mm Plastic Ball stud
M3x10 Screw
......4
Assemble as many times as specified
x2
x1
approx.38mm
x1
approx.38mm
x2
......4
..................2
4
approx.34mm
Front Upper(Right)
Front Upper (Left)
Steering Tip
