USINg THE WIN42 CONTROL CENTER SOFTWARE:
ZOOM IN
7
Click here to zoom in on a section of the scan results. Use the mouse to mark the area to be enlarged.
AUTO COORDINATE
8
Click here to toggle the automatic adjustment of the coordinates on or off.
DEFAULT COORDINATE
9
Click her to leave the zoom view and return to the default view.
SCAN TABLE

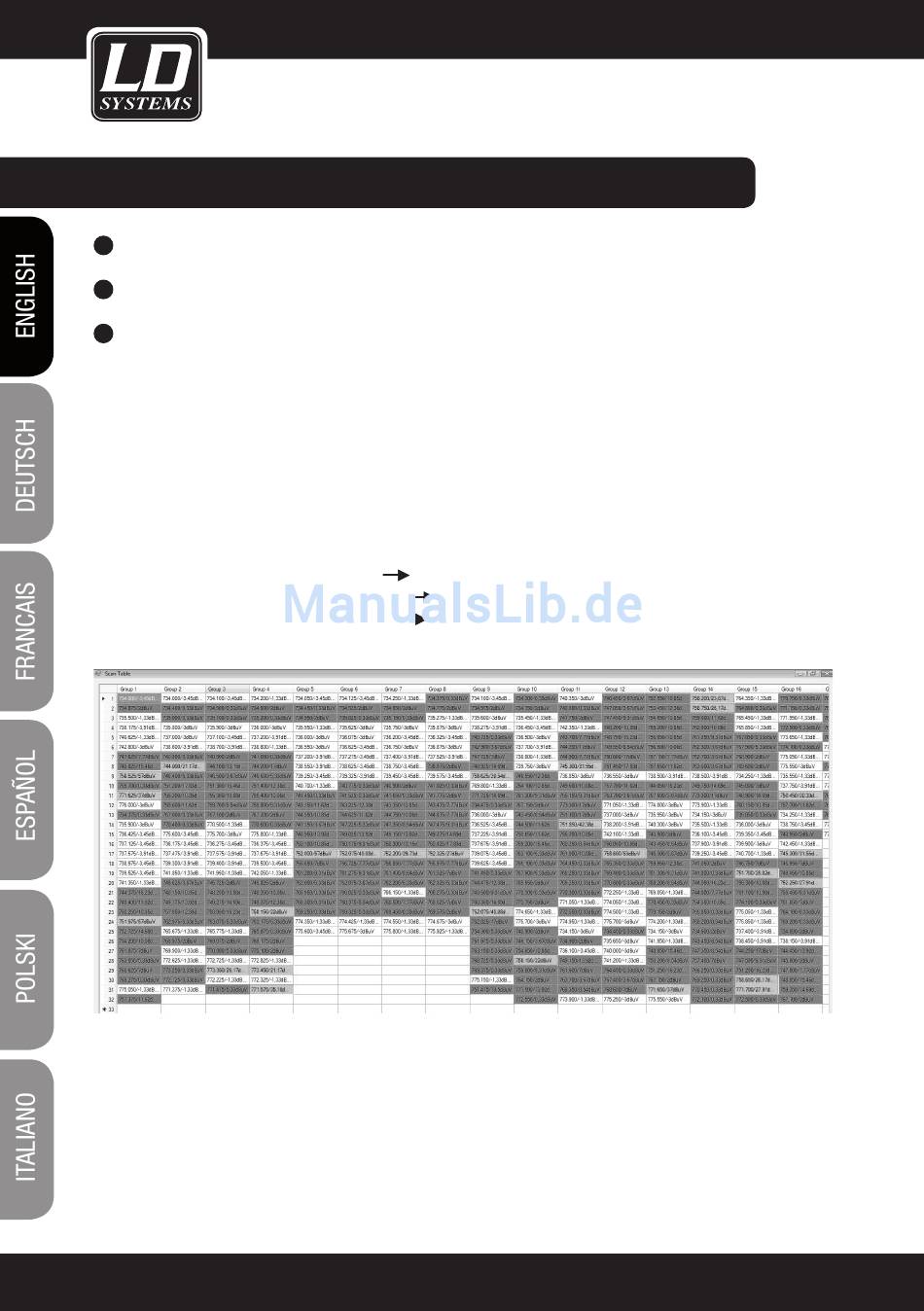

(Sample depiction of scan table)
In this view, you can find frequencies and assign them to the connected receivers.
Carry out the environment scan as described above and click on Scan Table to view the scan results in tabular
form. Here you will find all available frequency groups with the associated frequencies. The results of the
environment scan are shown for each frequency as the value of the measured field strength. The available
frequencies in the desired group are also identified by coloured markings.
White: Receiver field strength 0dBuV or less
Yellow: receiver field strength 0dBuV to 20dBuV
Red: Receiver field strength 20dBuV or greater
To be able to access the results at a later point in time, save the scan table by clicking on the Save button at the
lower right edge of the screen.
To open a previously saved scan table , select the menu item Open RF File in the File menu in the main menu.
FREqUENCy ALLOCATION
Double-click on a frequency that you want to assign to one of the connected receivers. Afterwards, you will be
returned to the main screen automatically.
22
unused frequency
frequency possibly in use
frequency in use
