If necessary, turn the inside knob with the shaft,
thus enabling free access of the screwdriver to the
set screw.
Hand-tighten the set screw M3 (Torx T6) to the
right with the screwdriver (approx. 4 revolutions).
Check that both knobs turn freely without scraping
Fig. 5: Tighten inside knob
on the fitting.
Tighten the screw.


Tapkey Smart Lock with core pulling protection




14
Caution: Do not tighten the screw with
a cordless screwdriver without torque
control, because you could damage the
Tapkey Smart Lock with the tool.
Please note: Keep the original packaging
so that you can store the Tapkey Smart Lock
safely at any time.
Please note: Always make sure that you insert
a cylinder with core pulling protection into the
cylinder hole from the inside to the outside.
The side with core pulling protection belongs
on the outside.
Caution: In general, you should always install
the knob electronics first and then connect
the battery in order to prevent damage to the
electronics.
Please note: The installation of protective fit-
tings or rosettes with round hole is described
below; their core covers generally have to be
removed before installation.
Measure the thickness of the door with fitting.
Ensure that the basic length of the cylinder is adap-
ted to the measured thickness: Note the division into
inside (a) and outside (b).

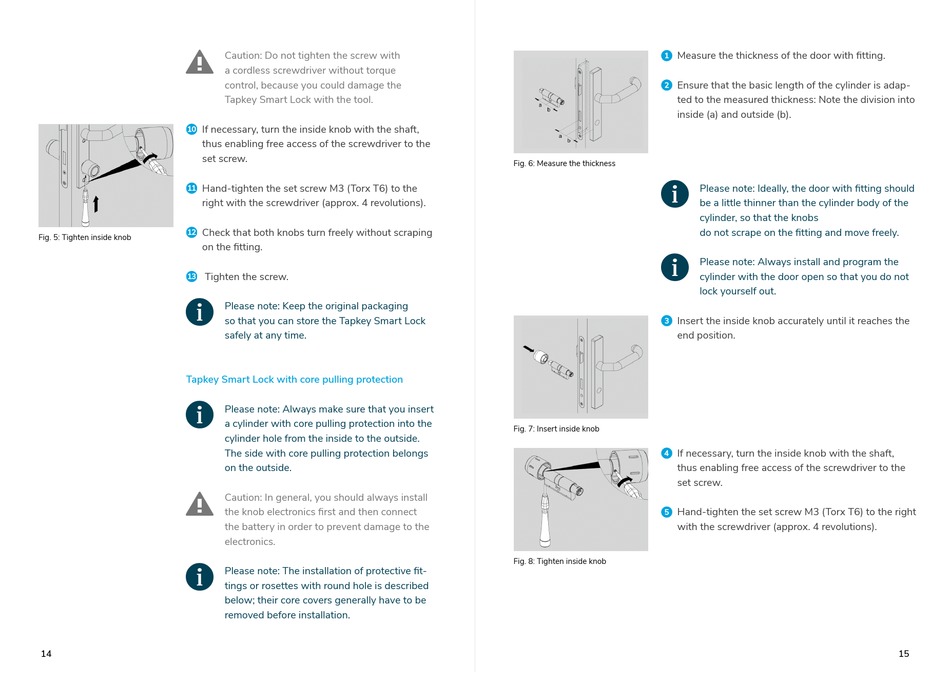

Fig. 6: Measure the thickness


Insert the inside knob accurately until it reaches the
end position.
Fig. 7: Insert inside knob
If necessary, turn the inside knob with the shaft,
thus enabling free access of the screwdriver to the
set screw.
Hand-tighten the set screw M3 (Torx T6) to the right
with the screwdriver (approx. 4 revolutions).
Fig. 8: Tighten inside knob
Please note: Ideally, the door with fitting should
be a little thinner than the cylinder body of the
cylinder, so that the knobs
do not scrape on the fitting and move freely.
Please note: Always install and program the
cylinder with the door open so that you do not
lock yourself out.
