Fast Ethernet Office Switch • User Manual
Thank you for purchasing the Intellinet Network Solutions Fast Ethernet
Office Switch, Model 523301 (5-port metal housing) or Model 523318
(8-port metal housing).

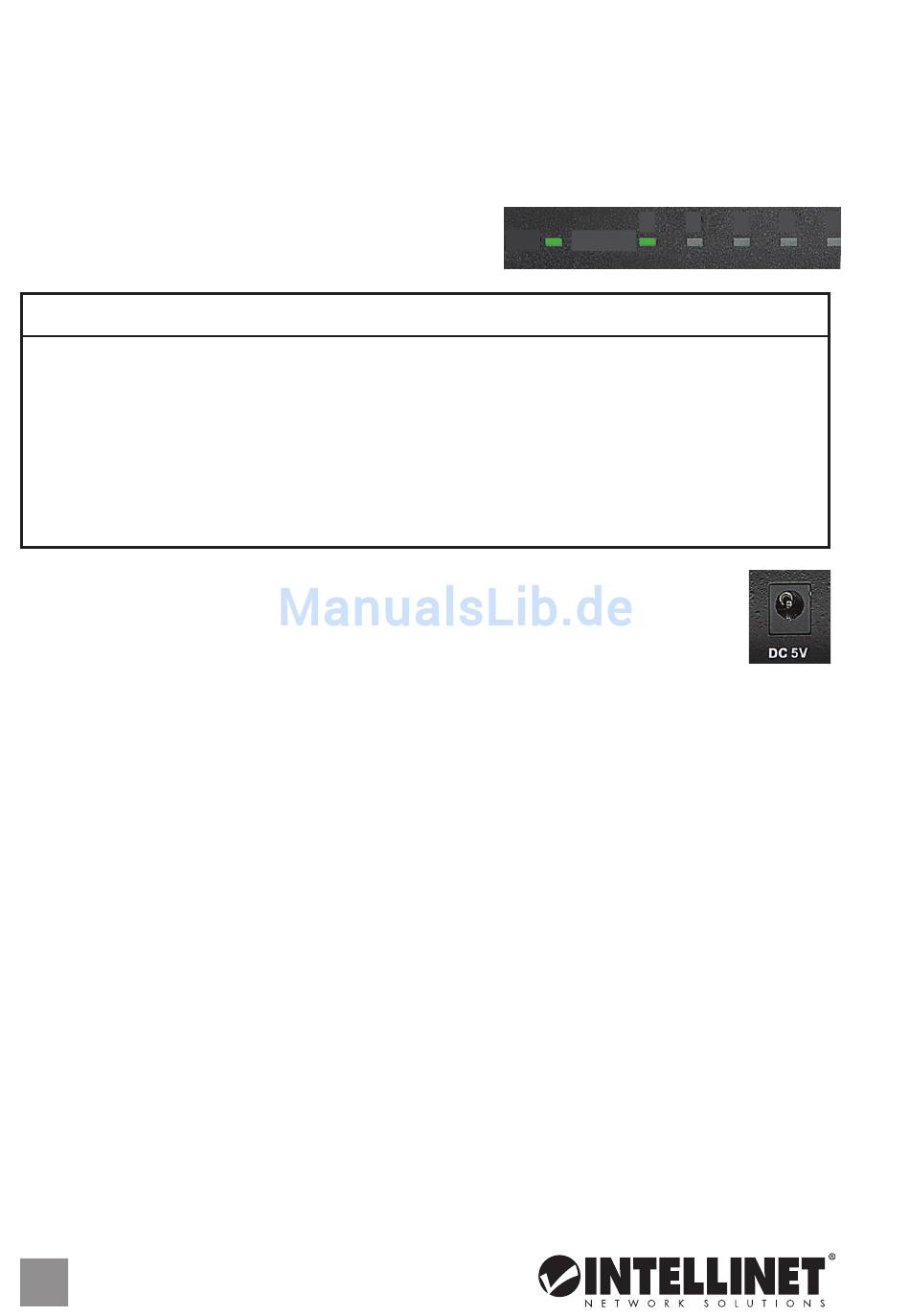

LEDS
The LED indicators—Power, Link/Activity—
make monitoring and troubleshooting easier.
LED
PWR
LNK/ACT
cOnnEctiOnS
Power
Plug the female end of the power adapter firmly into the 5V jack
and the other end into an electrical outlet. Confirm that the power LED is lit.
NOTE: To ensure proper operation, use only the included power adapter.
All ports on the switch support Auto-MDI/MDI-X functionality, so
crossover cables and uplink ports are not needed for connections to
PCs, routers, hubs, other switches, etc. Cat5/5e UTP/STP cables provide
optimal performance; if a status LED doesn't indicate a link or activity,
check the corresponding device for proper setup and operation.
inStALLAtiOn
Prior to use, it is recommended that the switch be placed/positioned:
• on a level surface that can support the weight of the switch
(and any other items that need to be considered);
• with a minimum of 25 mm (approx. 1") of clearance on the
top and sides for adequate ventilation;
• away from sources of electrical noise: radios, transmitters,
broadband amplifiers, etc.;
• where it cannot be affected by excessive moisture; and
• within 100 m (approx. 328') of network devices it's to be connected to.
2
ENGLISH
Status
On
Off
On
Blinking
Off
PWR
LINK/ACT
Operation
Power on
Check the AC connection; turn the
power on
Valid port connection
Valid port connection;
data transmitted/received
No link established
English
1
2
3
4
5
