1)

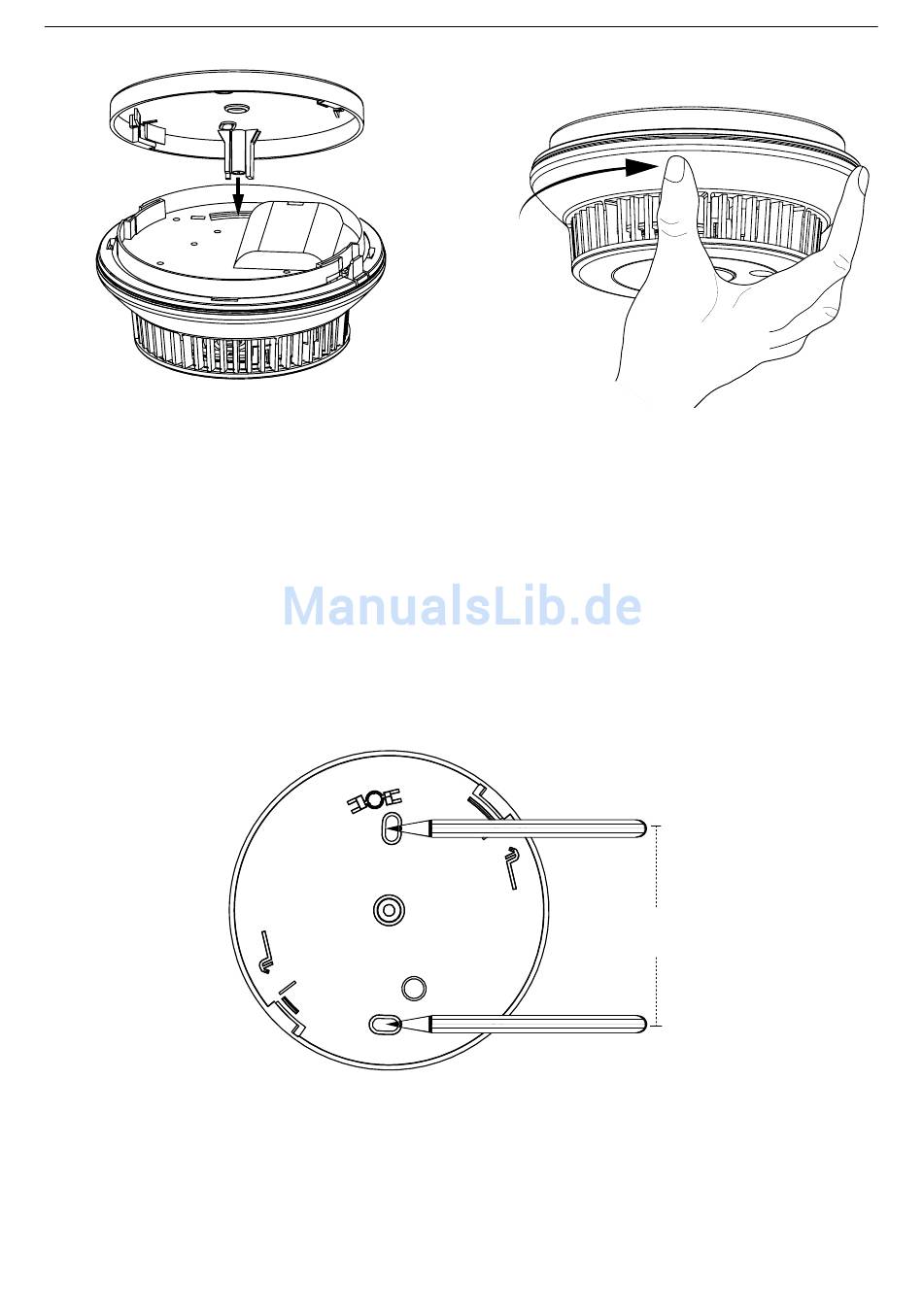

Fig. 7: Latching the smoke alarm
The device is now ready for operation.
5.2.2 Screw fastening with two screws
For the installation e.g. with a standard installation box, use the two bore
holes at a distance of 60 mm.
• Use the opposite bore holes to fasten the ceiling bracket with two
screws.
Fig. 8: Marking two bore holes
• Use two appropriate screws and plugs to fasten the ceiling bracket.
• Therefore, drill the corresponding bore holes.
• Before latching the device into the ceiling bracket, press the operating
button shortly.
2)
distance:
60 mm
Start-up
