• Do not place open flames, such as burning candles, on or near the device.
• Do not leave the device in operation when it is unattended. For reasons of safety,
unplug from the mains socket after use.
• Do not use the device in a tropical climate.
• If you are unsure about how to connect the product properly, or should you have any
questions that are not answered in these operating instructions, please contact our
technical service or consult a professional.
• Also observe any other safety instructions in the individual chapters of these operat-
ing instructions.

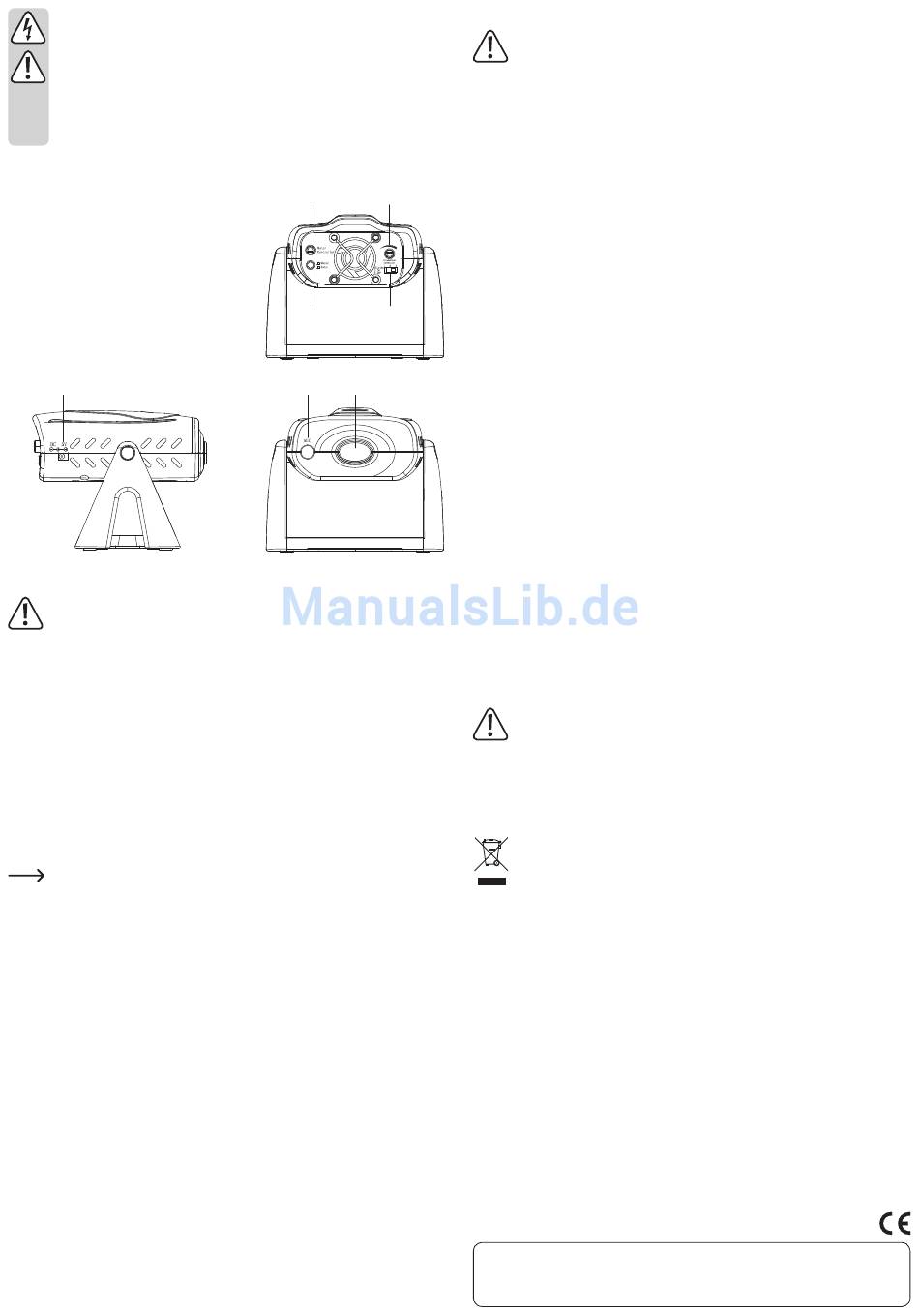

Individual parts and controls
(1) MOTOR CONTROLLER
(2) STROBOFLASH CONTROLLER
(3) MUSIC/AUTO switch
(4) Function switch
(5) Low-voltage connector
(6) Microphone (MIC)
(7) Laser exit opening - Warning
laser radiation exits from here
5
Assembly
The assembly and the installation of the device must be carried out by a specialist
who is familiar with the hazards and the relevant regulations.
location for your device, make sure to avoid vibration, dust, hot and cold temperatures
and dampness. Furthermore, keep the product away from strong transformers or mo-
tors.
The device must be mounted out of normal reach.
When installing the product ensure that the power supply unit's power cord is not
jammed or damaged by sharp edges.
During installation and service work, the area below the installation location must be
cordoned off.
The installation surface, or mounting fixture, must be designed so that it can withstand
10 times the loading capacity for at least 1 hour without permanent damaging defor-
mation.
It is also essential that the device is secured by means of a second safety restraint,
which is independent of the proper mounting supports, when the device is installed
in an elevated position. If the main supports fail, no part of the installation should be
able to fall down.
Observe all the relevant regulations when installing the device.
Installation acceptance:
Before first use and after any significant modifications, the installation (including the
electrical connections) must be checked by a specialist.
An annual check by a technical expert is required.
At least every four years the device should be checked and approved by a specialist.
The laser is fastened to the mounting surface using the mounting bracket.
• For mounting, a screw is drilled into the mounting surface, the head of which protrudes a few
millimetres from the surface.
• The laser is then suspended from this screw head using the corresponding hole at the bottom of
the mounting bracket.
• Make sure that the device cannot swing freely when installing it.
• Secure the device with mounting material that is compatible with the fastening surface and
suitable for carrying the weight of the laser.
• When mounting in an elevated location, secure the laser with an additional suitable safety re-
straint cable or safety net. The safety restraint cable or net must be able to support the light
effect device in the event of a fault in the main support system.
• After fastening the device, adjust the desired inclination angle.
Connecting the power adapter
• Plug the enclosed power adapter's low-voltage plug into the low voltage connection (5) of the
• Plug the power adapter into a wall socket.
1 2

Operation

The desired operation mode is selected by means of the function switch (4) and the MUSIC/AUTO
(3) switch:
• Function switch (4) in switch position 1:
3 4
• Function switch (4) in switch position 2:
6 7
• Function switch (4) in switch position 3:
• MUSIC/AUTO Switch (3):
Handling
• Never switch the laser effect device on and off at short intervals. This will considerably reduce
• The device is not suitable for continuous use. Maintaining pauses during operation (every
• Do not operate the device immediately when you take it from a cold room into a warm room
When choosing a
• Do not cover the device in any way, this ensures sufficient ventilation . In addition, air circula-

Maintenance

The outside of the device should be cleaned with a soft, slightly damp cloth or dry brush.
Do not use aggressive cleaning agents or chemical solutions; this may damage the surface of the
case.
Disposal
Technical data
Operating voltage of power adapter.........100-240 V/50/60 Hz
Power consumption.....................................3 W max.
Operating voltage of laser ..........................5 V/DC
Laser output ..................................................<5 mW
Wave length ..................................................450 nm
Laser Class ....................................................3R
Operating conditions ...................................+15 to +35 °C / 20-80 % rel. humidity
Storage conditions.......................................-10 to +60 °C / 10-90 % rel. humidity
Dimensions....................................................110 x 129 x 137 mm
Weight ............................................................425 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent
the technical status at the time of printing.
© Copyright 2016 by Conrad Electronic SE.
The mains socket to which the transformer is connected must be easily accessible,
thus in the event that a fault occurs, the device can be disconnected from the mains
voltage quickly.
Do not let the mains cable come into contact with other cables.
Be careful when handling mains cables and mains connectors. Mains voltage may
cause fatal electric shocks.
Do not leave the cables trailing free; route them in an orderly and professional way to
prevent accidents.
device.
The laser effect flashes.
Use the STROBOFLASH CONTROLLER (2) to set the flashing frequency.
Use the MOTOR CONTROLLER (1) to set the rotational speed of the motor.
The laser effect device remains switched on.
Use the MOTOR CONTROLLER (1) to set the rotational speed of the motor.
The device is switched off.
MUSIC: The laser effect is controlled by the beat of the music.
AUTO: The laser effect is now controlled via the integrated controller.
the service life of the device.
2 hours) will increase the product's service life.
environment. The condensation that forms might damage the device.
Leave the device disconnected and wait until it has reached room temperature. Wait until the
condensation has evaporated.
tion must not be obstructed by objects such as magazines, tablecloths, curtains or similar items.
Before cleaning, disconnect the laser from the power supply (disconnect the power
adapter).
Absolutely prevent wetness or dampness from penetrating into the device.
Electronic devices are recyclable and must not be disposed of in the household waste!
Please dispose of the product, when it is no longer of use, according to the current
statutory requirements.
