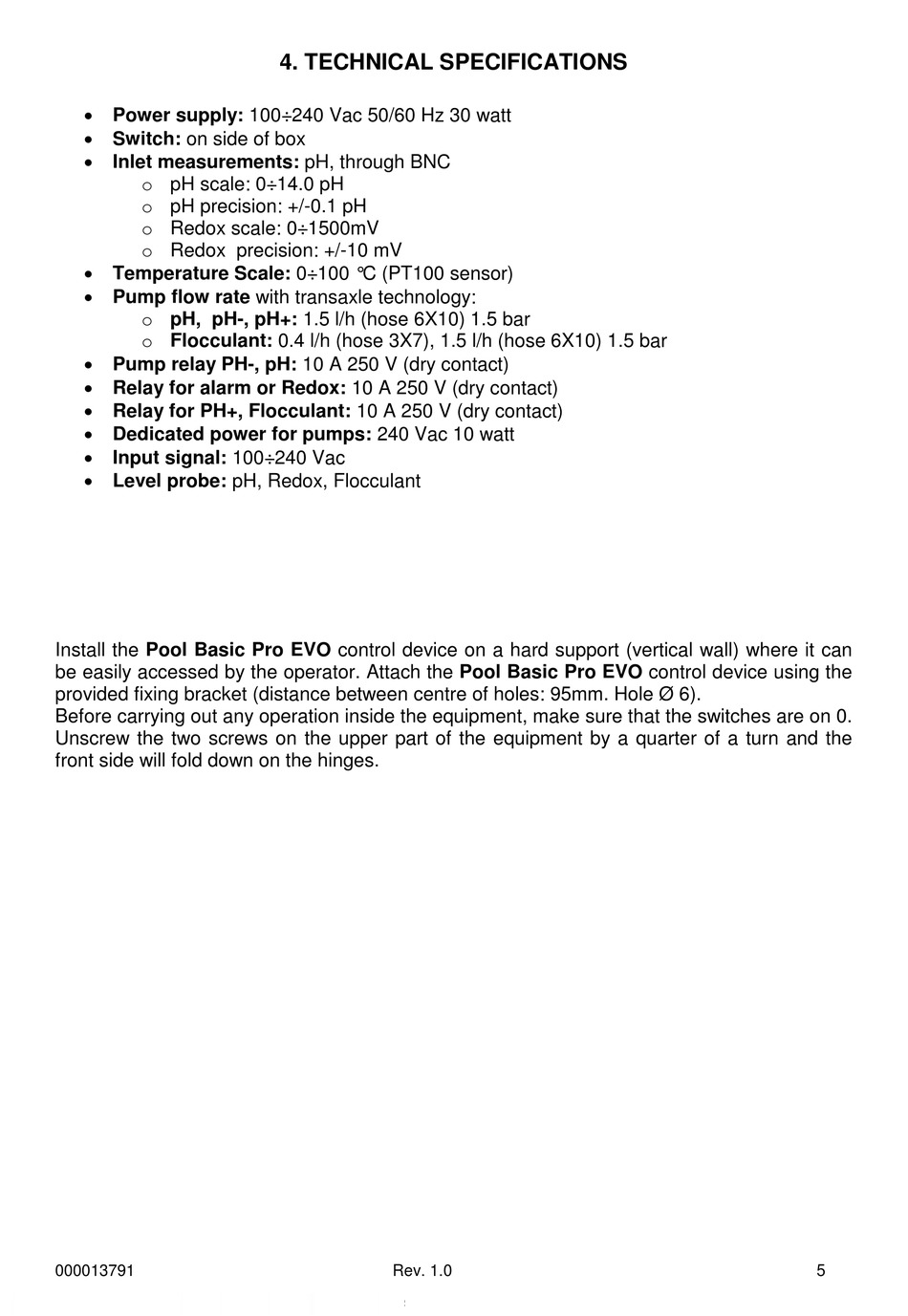

Technical Specifications - seko Pool Basic Pro Evo Handbuch

 Power supply: 100÷240 Vac 50/60 Hz 30 watt
 Switch: on side of box
 Inlet measurements: pH, through BNC
o pH scale: 0÷14.0 pH
o pH precision: +/-0.1 pH
o Redox scale: 0÷1500mV
o Redox precision: +/-10 mV
 Temperature Scale: 0÷100 °C (PT100 sensor)
 Pump flow rate with transaxle technology:
o pH, pH-, pH+: 1.5 l/h (hose 6X10) 1.5 bar
o Flocculant: 0.4 l/h (hose 3X7), 1.5 l/h (hose 6X10) 1.5 bar
 Pump relay PH-, pH: 10 A 250 V (dry contact)
 Relay for alarm or Redox: 10 A 250 V (dry contact)
 Relay for PH+, Flocculant: 10 A 250 V (dry contact)
 Dedicated power for pumps: 240 Vac 10 watt
 Input signal: 100÷240 Vac
 Level probe: pH, Redox, Flocculant
Install the Pool Basic Pro EVO control device on a hard support (vertical wall) where it can
be easily accessed by the operator. Attach the Pool Basic Pro EVO control device using the
provided fixing bracket (distance between centre of holes: 95mm. Hole Ø 6).
Before carrying out any operation inside the equipment, make sure that the switches are on 0.
Unscrew the two screws on the upper part of the equipment by a quarter of a turn and the
front side will fold down on the hinges.
