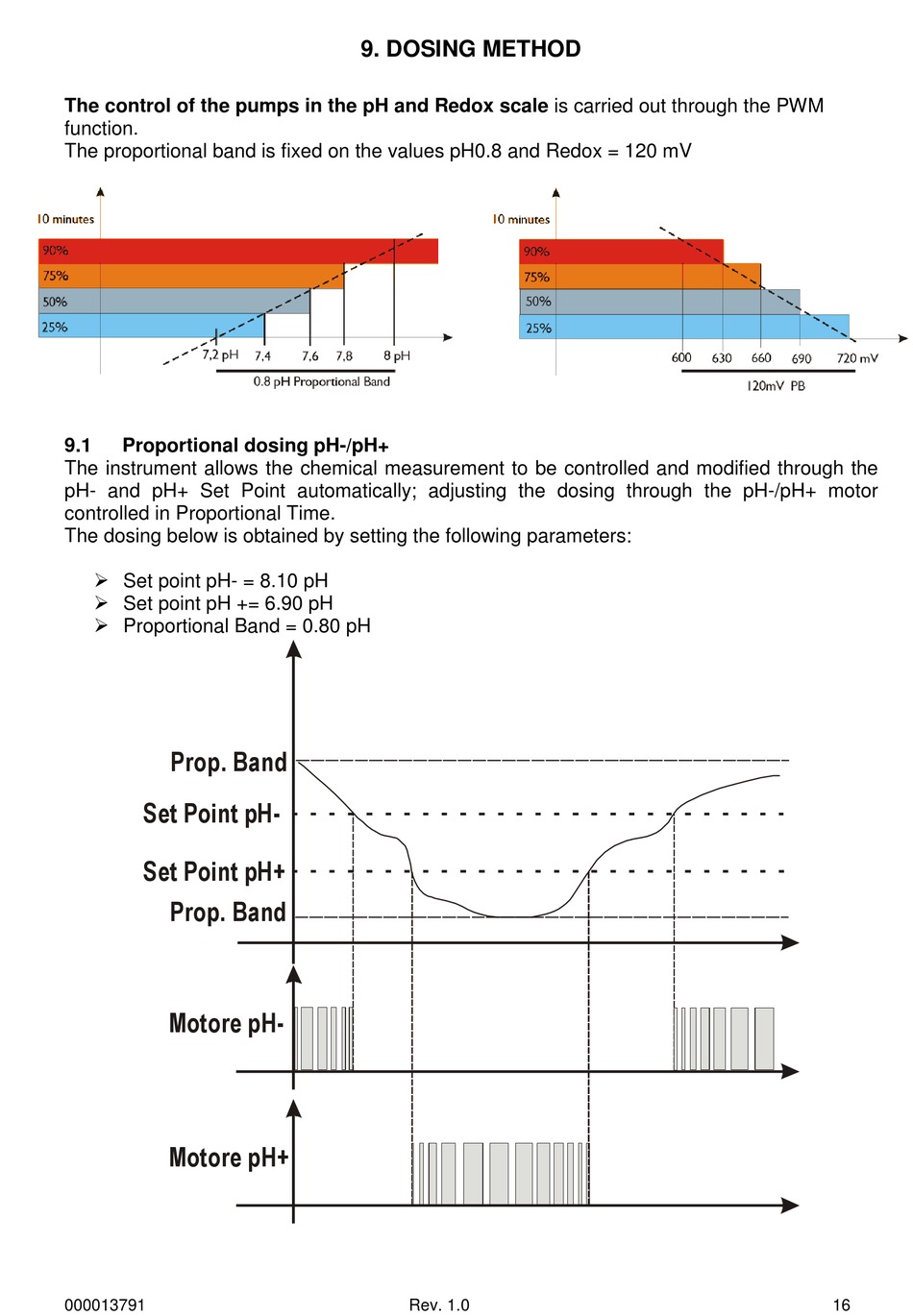

Dosing Method - seko Pool Basic Pro Evo Handbuch

The control of the pumps in the pH and Redox scale is carried out through the PWM
function.
The proportional band is fixed on the values pH0.8 and Redox = 120 mV
9.1 Proportional dosing pH-/pH+
The instrument allows the chemical measurement to be controlled and modified through the
pH- and pH+ Set Point automatically; adjusting the dosing through the pH-/pH+ motor
controlled in Proportional Time.
The dosing below is obtained by setting the following parameters:
 Set point pH- = 8.10 pH
 Set point pH += 6.90 pH
 Proportional Band = 0.80 pH
Prop. Band
Set Point pH-
Set Point pH+
Prop. Band
Motore pH-
Motore pH+
000013791

9. DOSING METHOD

Rev. 1.0
16
