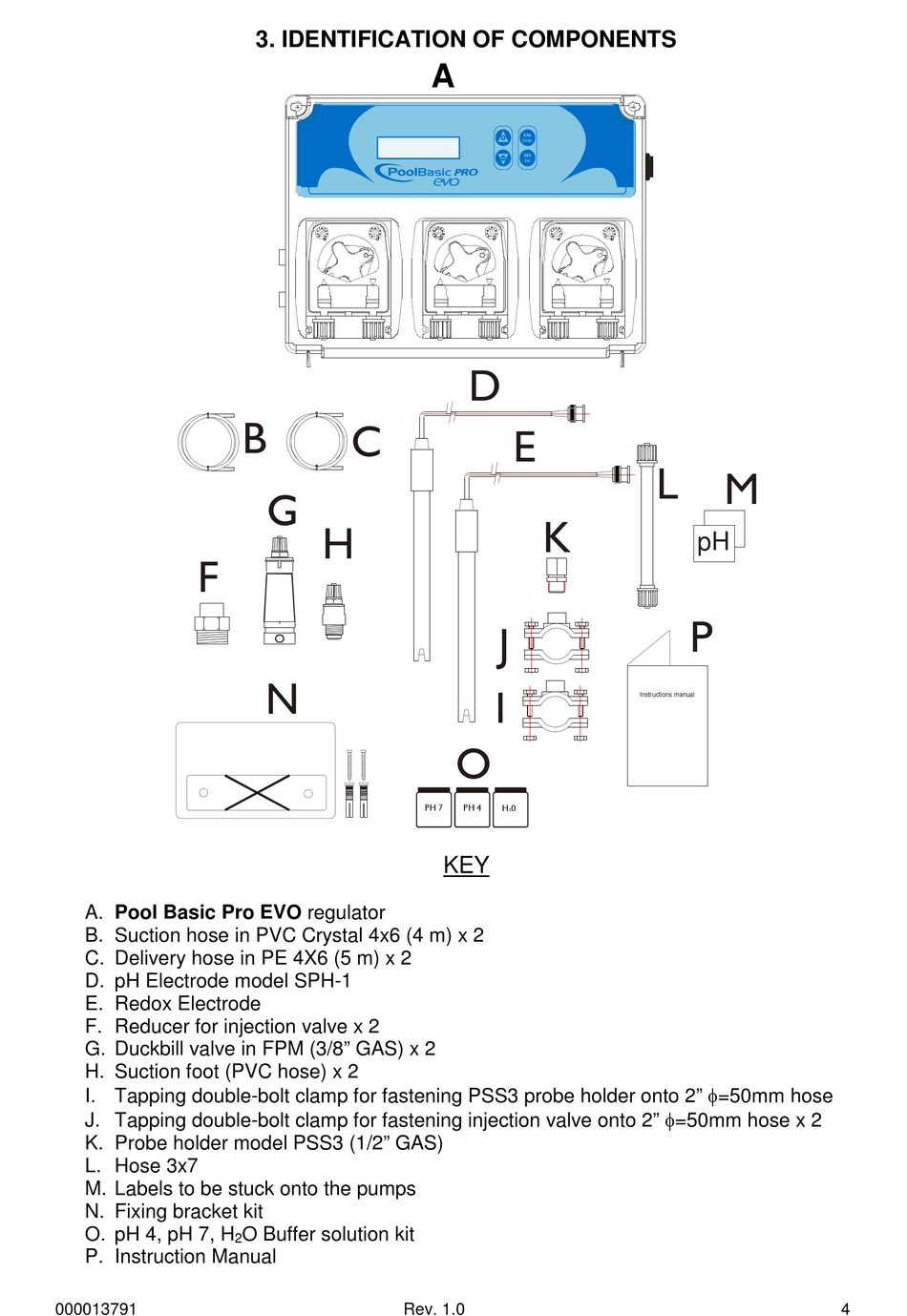

3. IDENTIFICATION OF COMPONENTS

A
D
B
C
E
L
M
G
K
H
pH
F
P
J
N
I
Instructions manual
O
PH 7 PH 4 H 0
2
KEY
A. Pool Basic Pro EVO regulator
B. Suction hose in PVC Crystal 4x6 (4 m) x 2
C. Delivery hose in PE 4X6 (5 m) x 2
D. pH Electrode model SPH-1
E. Redox Electrode
F. Reducer for injection valve x 2
G. Duckbill valve in FPM (3/8" GAS) x 2
H. Suction foot (PVC hose) x 2
I. Tapping double-bolt clamp for fastening PSS3 probe holder onto 2" =50mm hose
J. Tapping double-bolt clamp for fastening injection valve onto 2" =50mm hose x 2
K. Probe holder model PSS3 (1/2" GAS)
L. Hose 3x7
M. Labels to be stuck onto the pumps
N. Fixing bracket kit
O. pH 4, pH 7, H O Buffer solution kit
2
P. Instruction Manual
4
000013791 Rev. 1.0
