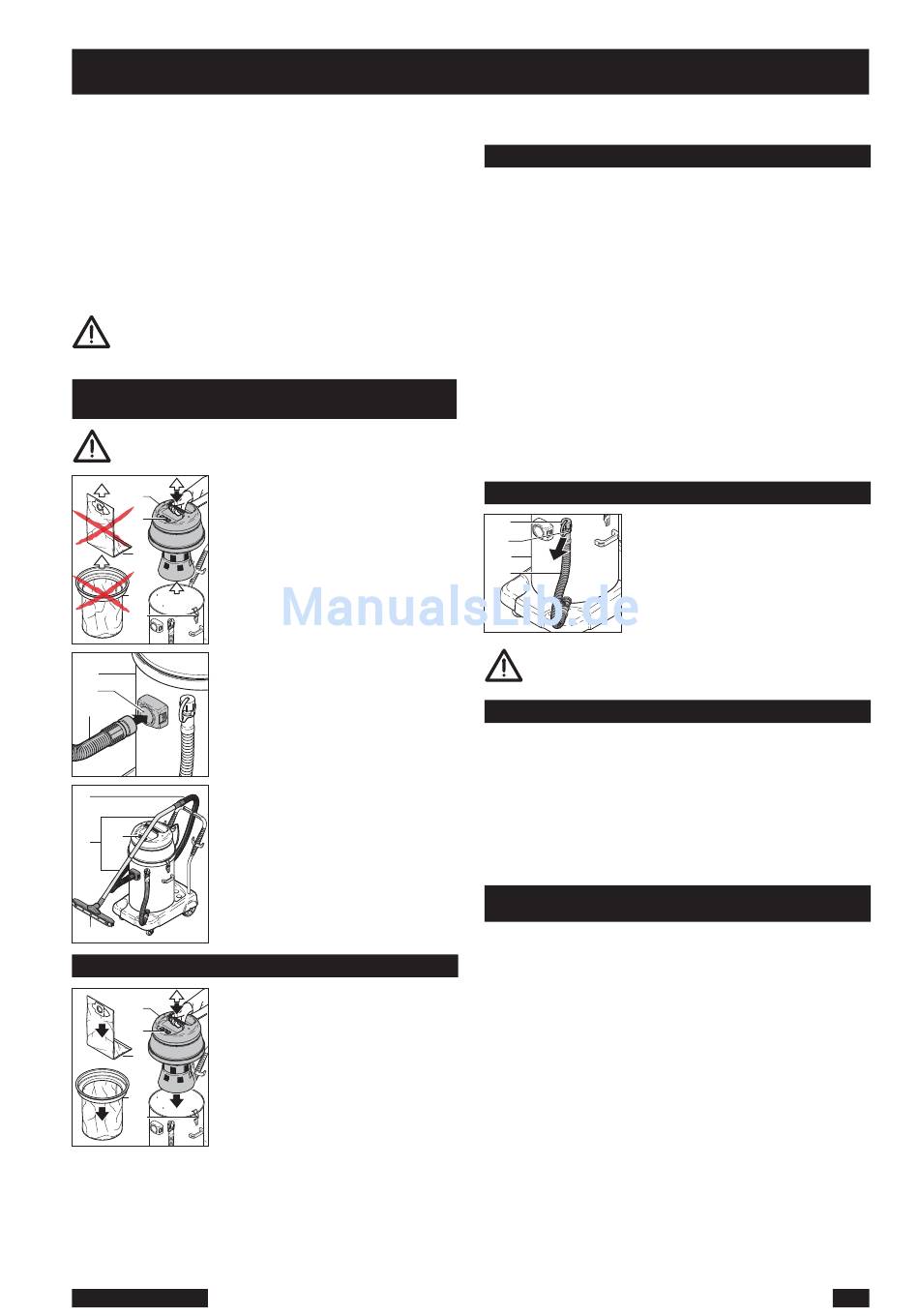

Commissioning / Operation
Make sure that the voltage indicated on the identi-
●
fication plate is the same as that available in the buil-
ding and that the socket has an earth wire. The machine
is to be connected to a 230V 1N-, 16A socket.
Depending on working location, equip machine with
●
its best possible vacuum-combination.
Depending on the surface to be cleaned, you can use
●
1, 2 or 3 motors I. II or III. Switch to run.
When used as a water vacuum cleaner, must always
before the appliance is put into operation; the
Cloth dust filter (16) and Dustbags (h) must be removed.
1. Equipment as a water vacuum cleaner
with flexible nozzle
Do not suck water with large Cloth dust filter
or paper filter bag. Capital losses can result.
☞
4
3
☞
h
☞
16
10
☞
5
6
☞ Suction hose (a) in the hose
a
connection (6) to the boiler (5)
connect.
☞ The stainless steel tubes (b)
together and connect to the
a
suction hose (a).
☞ Wrap
3
b
completely. Install the required
accessories (eg water suction (c).
☞ Now you may proceed with
c
2. Conversion to a dust vacuum cleaner
☞
4
3
h
☞
☞
16
10
☞
Depending on working location, equip machine with its
☞
best possible vacuum-combination ( d, e, f oder g ).
Now you may proceed with vacuum cleaning by
☞
pressing the main switch (3) on, 1, 2 or 3
Motors.
SW 60 - Englisch
Switch off vacuuming (3). Open
the tank clips (10) and take out
the motor bonnet(4).
Remove the cloth dust filter (16)
and the paper dust bag (h).
The tank should be empty and
clean before wet vacuuming.
Place the motor housing (4) back
into position and adjust by and
close the boiler clips
the power cord
vacuum cleaning by pressing
the main switch (3) on, 1, 2 or 3
Motors.
Switch off vacuuming (3). Open
the tank clips (10) and take out
the motor bonnet (4).
Insert the cloth filter (16).
For hygiene reasons it is adviced
to use the paper dust bag (h).
Place the motor housing (4) back
into position and adjust by and
close the boiler clips
3. Emptying the tank
When the fluids have reached the highest permitted
☞
level in the tank float valve automatically blocks
suction and the motor gets noisier. In this case, switch
off the vacuum cleaner immediately, pull the plug, re-
move the motor bonnet from the tank and empty the tank.
After each operation empty the tank of the vacuum
☞
cleaner.
Switch off vacuuming (3). Open the tank clips (10) and
☞
take out the motor bonnet (4).
Disconnect the suction hose (a) from the hose
☞
connector (6).
Empty the tank by tilting.
☞
Connect the hose (a) to the hose connector (6).
☞
Place the motor housing (4) back into position and
☞
adjust by and close the boiler clips (10).
The appliance is ready again for operation.
☞
4. Dirt Water emptying with drain hose
13
X
5
12
After emptying the tank screw the cap (13) tight
(10).
on the drain hose (12).
5. Important instructions for maintenance
Be sure that the motor bonnet is inserted to the tank
●
tightly.
Check the sealing on the motor bonnet regularly.
●
Keep the wheels (14+15) clean as required use oil or
●
grease for the bearings.
(9)
After using the vacuum cleaner, clean the float valve (7)
●
and the tank (5) and dry it.
Shake out dust filter - do not wash.
●
6. Information on commissioning, use and
maintenance
If the appliance used commercially, it should only be
●
operated by
The cleaner must be protected with a circuit breaker of
●
the type "L" with a rated current of 10 A or fuse 10 A.
Keep your vacuum cleaner sources of heat such as an
●
oven, hob, etc. away.
Do not suck razor blades and nails or flammables and
●
explosives.
In order to clean and maintain the machine, replace
●
parts or convert to alternative functioning, the motor
should be switched off and the plug removed from the
mains socket.
The mains cable must not be damaged by running
●
(10).
over it, crushing or similar activities. It should be
regulary checked for signs of damage or ageing. If ist
condition is not impeccable, the machine should not
be used.
When employing or replacing connection or extensi-
●
on cables, one must adhere strictly to the instructions
of the appliance manufacturer.
Remove drain hose (12) from the
☞
support.
Unscrew cap (13).
☞
Empty the tank (5).
☞
persons instructed in use.
8
