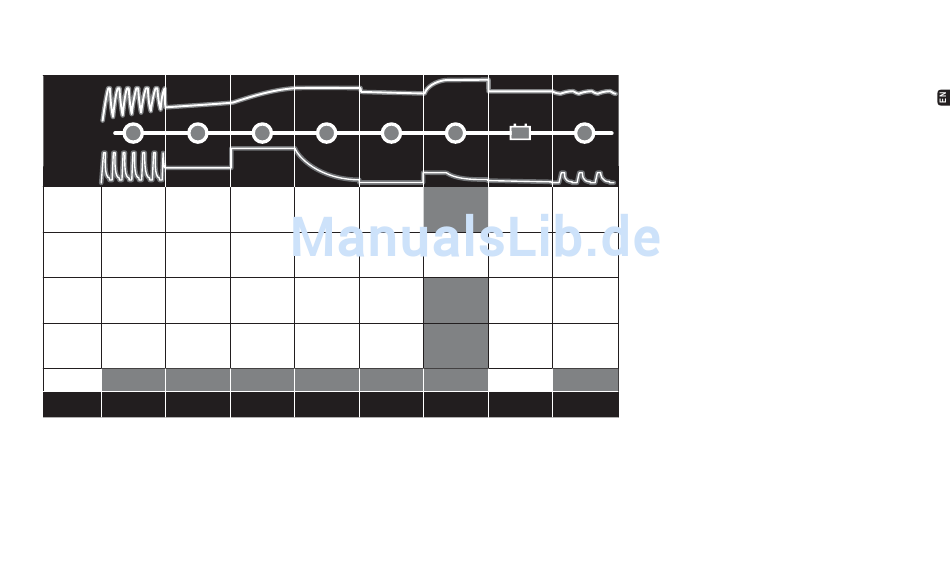

ChARGING PROGRAMS
DESULPHATION SOFT START
VOLTAGE (V)
1 2
1
CURRENT (A)
15.8V 50A until 12.6V
NORMAL
31.6V 25A until 25,2V
15.8V 50A until 12.6V
Ca/Ca
31.6V 25A until 25,2V
15.8V 50A until 12.6V
AGM/GEL
31.6V 25A until 25,2V
15.8V 50A until 12.6V
AGM POWER
31.6V 25A until 25,2V
SUPPLY
Max 4h Max 4h
Limit:
*) SUPPLY program is not time or voltage limited
BULK ABSORPTION ANALYSE
3 4 5
Increasing voltage to: 14.4V Checks if voltage
14.4V 28.8V drops to:
28.8V Declining current 12V
50A 24V
25A
Increasing voltage to: 14.7V Checks if voltage
14.7V 29.4V drops to:
29.4V Declining current 12V
50A 24V
25A
Increasing voltage to: 14.4V Checks if voltage
14.4V 28.8V drops to:
28.8V Declining current 12V
50A 24V
25A
Increasing voltage to: 14.9V Checks if voltage
14.9V 29.8V drops to:
29.8V Declining current 12V
50A 24V
25A
Max 30h Max 10h 3 minutes
RECOND FLOAT PULSE
6 7 8
13.6V 12.7V‒14.4V
27.2V 25.4-28.8V
Max 50A 50‒5A
Max 25A 25-2,5A
Max 15.8V 13.6V 12.7V‒14.7V
Max 31.6V 27.2V 25.4-29.4V
1.5A Max 50A 50‒5A
Max 25A 25-2,5A
13.6V 12.7V‒14.4V
27.2V 25.4-28.8V
Max 50A 50‒5A
Max 25A 25-2,5A
13.6V 12.7V‒14.9V
27.2V 25.4-29.8V
Max 50A 50‒5A
Max 25A 25-2,5A
13.6V/Max 70A
27.2V/Max 35A *
30 min or 4h 10 days Charge cycle restarts
depending on Charge cycle restarts if voltage drops
battery voltage if voltage drops
STEP 1 DESULPhATION
Detects sulphated batteries. Pulsing current and voltage, removes sulfates
from the lead plates of the battery restoring the battery capacity.
STEP 2 SOFT START
Tests if the battery can accept charge. This step prevents charging a defect
battery.
STEP 3 BULK
Charging with maximum current until approximately 80% battery capacity.
STEP 4 ABSORPTION
Charging with declining current to maximize up to 100% battery capacity.
STEP 5 ANALySE
Tests if the battery can hold charge. Batteries that can not hold charge may
need to be replaced.
STEP 6 RECOND
Choose the Ca/Ca program to add the Recond step to the charging process.
During the Recond step voltage increases to create controlled gasing in the
battery. Gasing mixes the battery acid and gives back energy to the battery.
STEP 7 FLOAT
Maintaining the battery voltage at maximum level by providing a constant
voltage charge.
STEP 8 PULSE
Maintaining the battery at 95–100% capacity. The charger monitors the
battery voltage and gives a pulse when necessary to keep the battery fully
charged.
