INSTALLATION MANUAL

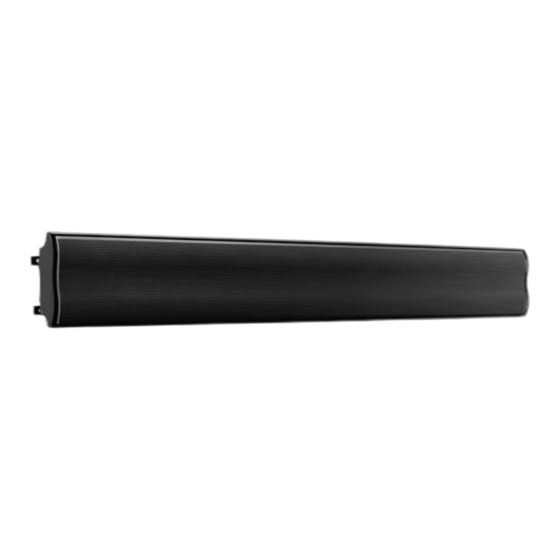

Sundirect Infrared Space Heaters
The mounting kit included in this box contains:
!
Part A: 2x mounting handles
Step 1: Slide the mounting handles (part A) into the rail on the back of the heater from the opposite side of the cables. Make sure both handles face into the same direction.
Step 2: Drill four holes into the wall, two for each mounting handle (part B). Use the mounting handles as stencils and level them to make sure the heater will hang straight on
the wall/ceiling. You can chose the distance between the two handles to your liking but make sure the distance doesn't exceed the length of the heater. Remove the nut form
!
the wall anchors (part E) and place the wall anchors into the drilled wholes.
!
Step 3: Place the mounting handles (part B) onto the wall anchors and secure them with the wall anchor's nut (part E) using a wrench.
Step 4: Place the heater against the wall/ceiling and attach each of the mounting handles that are mounted on the wall (part B) with the mounting handles attached on the
heater (part A). Secure them with two screws (part C) and two wing nuts (part D) on each side. Chose the mounting holes according to the way you want the heater to be
!
directed.
Step 5: Finally secure the mounting handle (part A) to the heater using two screws and two wing nuts on each side. Make sure everything is safely mounted and secured.
! Sundirect Technology Ltd.
info@sundirect-heater.com
www.sundirect-heater.com

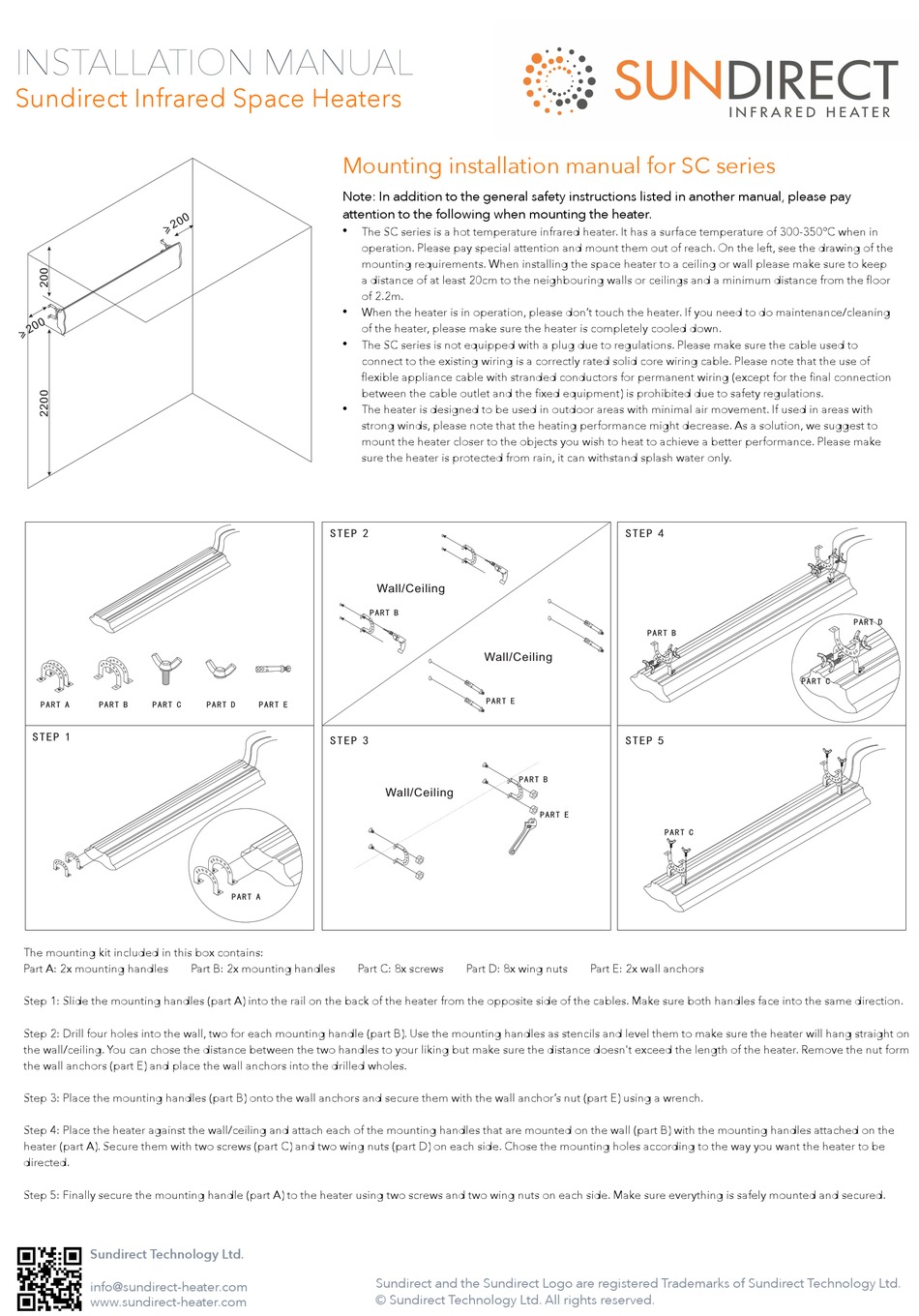

Mounting installation manual for SC series
Note: In addition to the general safety instructions listed in another manual, please pay
attention to the following when mounting the heater.
• The SC series is a hot temperature infrared heater. It has a surface temperature of 300-350°C when in
operation. Please pay special attention and mount them out of reach. On the left, see the drawing of the
mounting requirements. When installing the space heater to a ceiling or wall please make sure to keep
a distance of at least 20cm to the neighbouring walls or ceilings and a minimum distance from the floor
of 2.2m.
• When the heater is in operation, please don't touch the heater. If you need to do maintenance/cleaning
of the heater, please make sure the heater is completely cooled down.
• The SC series is not equipped with a plug due to regulations. Please make sure the cable used to
connect to the existing wiring is a correctly rated solid core wiring cable. Please note that the use of
flexible appliance cable with stranded conductors for permanent wiring (except for the final connection
between the cable outlet and the fixed equipment) is prohibited due to safety regulations.
• The heater is designed to be used in outdoor areas with minimal air movement. If used in areas with
strong winds, please note that the heating performance might decrease. As a solution, we suggest to
mount the heater closer to the objects you wish to heat to achieve a better performance. Please make
sure the heater is protected from rain, it can withstand splash water only.
!
Part B: 2x mounting handles Part C: 8x screws Part D: 8x wing nuts
Sundirect and the Sundirect Logo are registered Trademarks of Sundirect Technology Ltd.
© Sundirect Technology Ltd. All rights reserved.
Part E: 2x wall anchors
