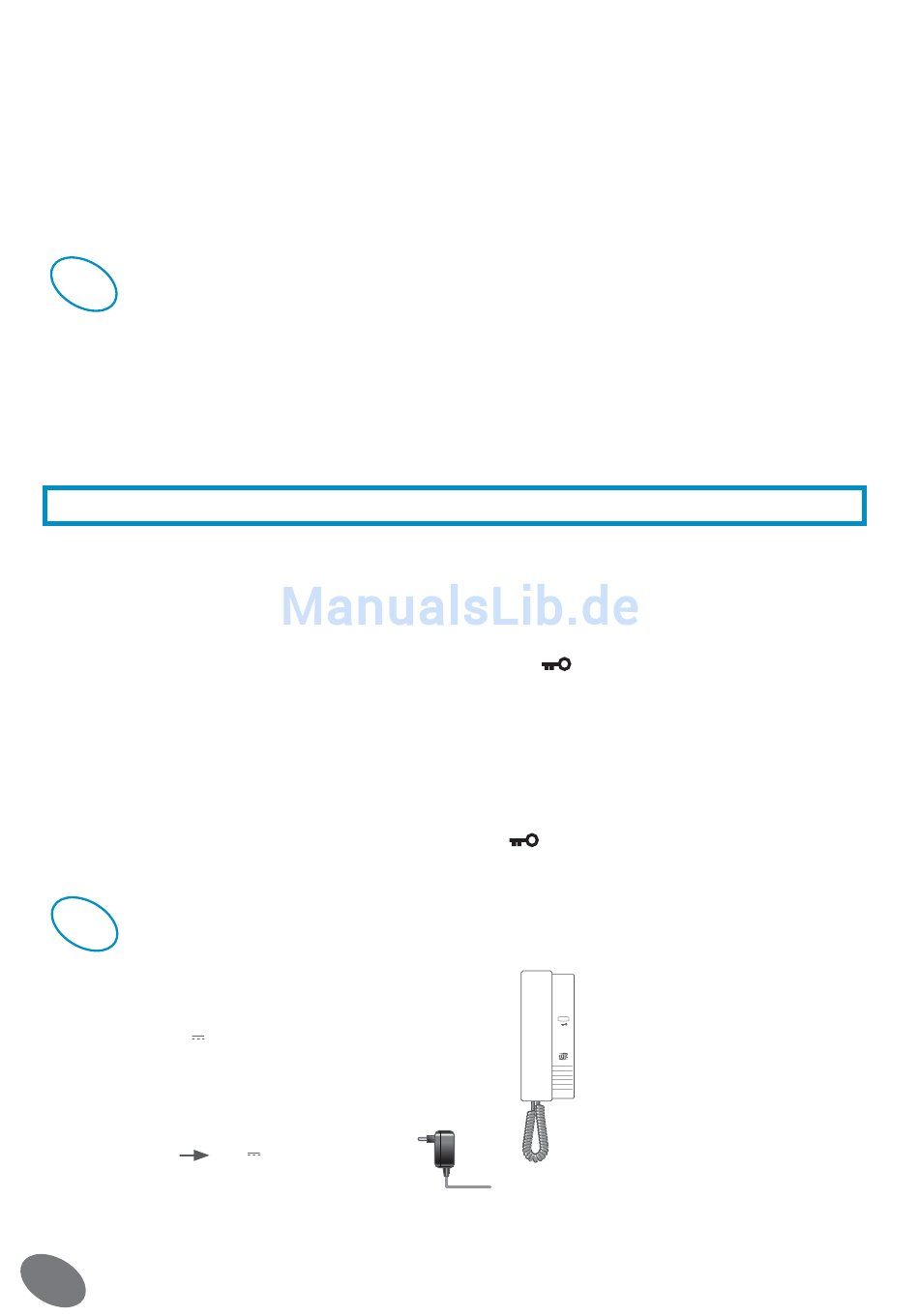

b. Mounting the handset (
1. Fix 2 screws to hang the handset.
2. Connect the wires from the external station observing the wiring diagram (Fig. 6)
3. Once the roadside panel connected, connect the power plug.
4. After being sure the installation is completed, connect the adapter power supply plug to mains outlet.
5. Install the handset on the wall.
Note : if the power supply cord is cut, respect polarity
5

WIRING

See the wiring diagram (fig. 6)
a. Connecting the interphone
Use the following wires:
- Connect the wires securely following the wiring diagram below fig.6.
- To connect the roadside panel 2 wires are needed
Caution: under no circumstances should the wires be doubled to make them thicker
•Terminal "1" on the handset to terminal "1" of the roadside panel.
•Terminal "2" on the handset to terminal "2" of the roadside panel
b. Connection of an electric catch, lock and of a gate motor
- An electric lock or strike may be connected to terminals 3 and 4 on the outdoor unit.
The strike or lock will be controlled by a short press (1 sec.) on the
Important : It is essential that the electric latch or lock installed has a mechanical memory like all products
marketed by Extel. For the wiring diagram please consult the label on the back of the handset and the back of the
roadside panel.
For controlling an automatic gate opener insert the option WE 8111 BIS SER.R4. Connect it directly to terminals
3 and 4 on the back of the outdoor unit (no polarity is to be observed).
The automatic opening mechanism is controlled by pressing key
6

TECHNICAL SPECIFICATIONS

a. Indoor unit
(PACB 201 LC SER.R1)
• Reference: 811201
• Power supply: 17 V
• Consumption: 2,8W
• Dimensions (mm): 210x90x60
b. Power supply
• Tension : 230V~
If the power supply cable is cut, check the polarity
3GB
fig.5)
• lengths up to 25 metres: 2 x 6/10 wires
• lengths between 25 and 100 metres: 2 x 1.5 mm2 wires
17 V 1400 mA
CFI EXTEL WEPA 201 LC SER.R1 - 07/2011 - V1
key on the handset.
on the handset for 1 seconds.
