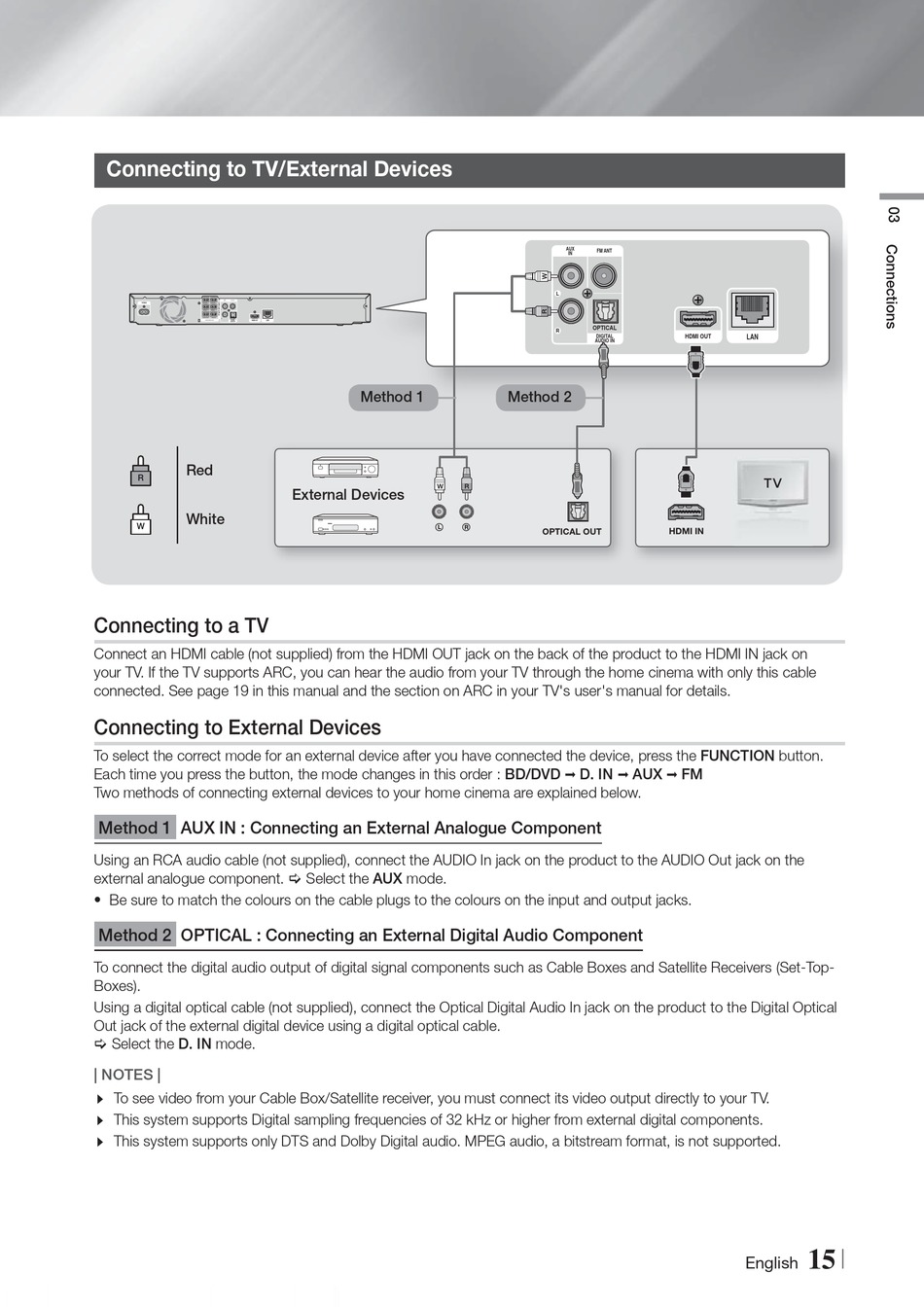

Connecting to TV/External Devices

AUX FM ANT
IN
POWER SURROUND R SURROUND L
FRONT R FRONT L L
SUBWOOFER CENTER
OPTICAL
R
SPEAKERS OUT DIGITAL HDMI OUT LAN
AUDIO IN
Red
R
White
W
Connecting to a TV
Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on
your TV. If the TV supports ARC, you can hear the audio from your TV through the home cinema with only this cable
connected. See page 19 in this manual and the section on ARC in your TV's user's manual for details.
Connecting to External Devices
To select the correct mode for an external device after you have connected the device, press the FUNCTION button.
Each time you press the button, the mode changes in this order : BD/DVD
Two methods of connecting external devices to your home cinema are explained below.
Method 1 AUX IN : Connecting an External Analogue Component
Using an RCA audio cable (not supplied), connect the AUDIO In jack on the product to the AUDIO Out jack on the
external analogue component.  Select the AUX mode.
• Be sure to match the colours on the cable plugs to the colours on the input and output jacks.
Method 2 OPTICAL : Connecting an External Digital Audio Component
To connect the digital audio output of digital signal components such as Cable Boxes and Satellite Receivers (Set-Top-
Boxes).
Using a digital optical cable (not supplied), connect the Optical Digital Audio In jack on the product to the Digital Optical
Out jack of the external digital device using a digital optical cable.
 Select the D. IN mode.
| NOTES |
\
To see video from your Cable Box/Satellite receiver, you must connect its video output directly to your TV.
\
This system supports Digital sampling frequencies of 32 kHz or higher from external digital components.
\
This system supports only DTS and Dolby Digital audio. MPEG audio, a bitstream format, is not supported.
Method 1
External Devices
AUX
FM ANT
IN
L
OPTICAL
R
DIGITAL
AUDIO IN
Method 2
HDMI IN
OPTICAL OUT
D. IN AUX FM
HDMI OUT
LAN
15
|
