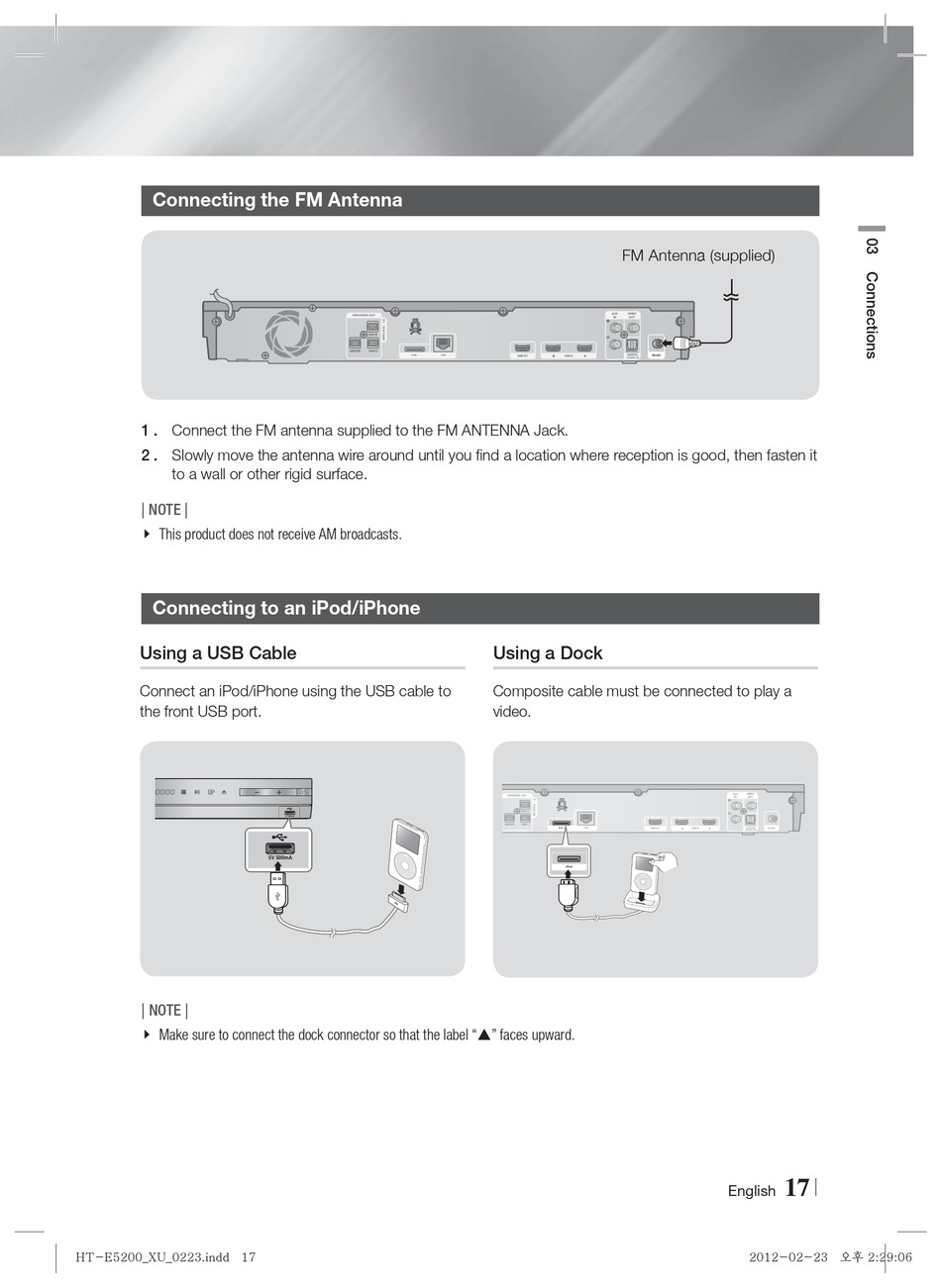

Connecting the FM Antenna

1 . Connect the FM antenna supplied to the FM ANTENNA Jack.
2 . Slowly move the antenna wire around until you find a location where reception is good, then fasten it
to a wall or other rigid surface.
| NOTE |
\ This product does not receive AM broadcasts.

Connecting to an iPod/iPhone

Using a USB Cable

Connect an iPod/iPhone using the USB cable to
the front USB port.
| NOTE |
\ Make sure to connect the dock connector so that the label "" faces upward.
HT-E5200_XU_0223.indd 17 HT-E5200_XU_0223.indd 17
SPEAKERS OUT SPEAKERS OUT
iPod iPod LAN LAN
5V 500mA
5V 500mA
FM Antenna (supplied)
AUX AUX VIDEO VIDEO
IN IN OUT OUT OUT
OPTICAL OPTICAL
DIGITAL DIGITAL FM ANT
HDMI OUT HDMI OUT 1 1 HDMI IN HDMI IN 2 2
AUDIO IN AUDIO IN N

Using a Dock

Composite cable must be connected to play a
video.
SPEAKERS OUT SPEAKERS OUT
iPod LAN LAN
HDMI OUT HDMI OUT
iPod
AUX AUX VIDEO VIDEO
IN IN OUT OUT OU
OPTICAL OPTICAL
DIGITAL DIGITAL FM ANT FM ANT
1 1 HDMI IN HDMI IN 2 2
AUDIO IN AUDIO IN N N
17
|
