Index BEFORE USING THE APPLIANCE ..............2 General warnings ......................2 Old and out-of-order fridges ..................... 4 Safety warnings ........................4 Installing and operating your fridge ................. 5 Before Using your Fridge ....................6 THE VARIOUS FUNCTION AND POSSIBILITIES ..........6 Thermostat Setting ......................
PART- 1. BEFORE USING THE APPLIANCE General warnings WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Seite 5
- staff kitchen areas in shops, offices and other working environments - farm houses and by clients in hotels, motels and other residential type environments - bed and breakfast type environments; - catering and similar non-retail applications • If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
Old and out-of-order fridges • If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident. • Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.
• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts. • Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you take them out of the freezer department! •...
Before Using your Fridge • When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor. •...
Accessories “Door Open” Indicator; • The « Door Open » indicator on the handle shows whether the door has closed properly or whether it is still open. • If the indicator is red, the door is still open. • If the indicator is white, the door is properly closed. •...
PART- 3. CLEANING AND MAINTENANCE • Disconnect unit from the power supply before cleaning. • Do not clean the appliance by pouring water. • The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water. •...
Defrosting For cooler compartment ; • Defrosting occurs automatically in refrigerator compartment during operation ; the defrost water is collected by the evaporating tray and evaporates automatically. • The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.
Replacing The Light Bulb When replacing the light of the refrigerator compartment; 1. Unplug the unit from the power supply, 2. Press the hooks on the sides of the light cover top and remove the light cover 3. Change the present light bulb with a new one of not more than 15 W. 4.
PART- 5. BEFORE CALLING YOUR AFTER SALES SERVICE If your refrigerator is not working properly,it may be a minor problem, therefore check the following, before calling an electrician to save time and money. What to do if your refrigerator does not operate ; Check that ;...
Seite 14
Recommendations • In order to increase space and improve the appearance,the « cooling section » of refrigerators is positioned inside the back wall of the refrigerator compartment. When the appliance is running, this wall is covered with frost or water drops,according to weather the compressor is running or not.

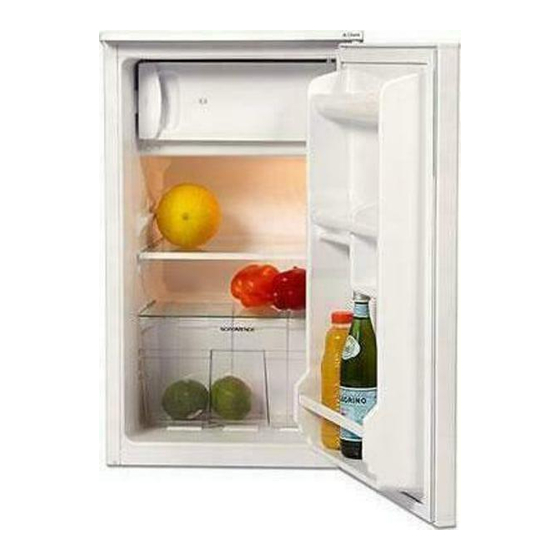

THE PARTS OF THE APPLIANCE AND THE PART- 6. COMPARTMENTS This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. 1) REFRIGERATOR SHELF 2) CRISPER COVER (SAFETY GLASS -In some models- ) 3) CRISPER 4) LEVELING FEET 5) THERMOSTAT BOX...
PART - 7. ELECTRICAL CONNECTION (UK ONLY) For your safety please read the following information Warning: This appliance must be earthed. This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug. The appliance is supplied with a standard 13 amp 3-pin mains plug fi tted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.
Seite 17
Inhalt AUFSTELLUNG ....................16 Allgemeine W arnungen ....................16 Sicherheits Information ....................18 Hinweise ........................... 18 Installation und Anschluss des Gerätes ............... 19 Vor Inbetriebnahme ......................19 FUNKTIONEN ....................20 Temperaturregelung ......................20 Zubehör ..........................21 “Tür geöffnet” Anzeige; ......................21 Eiswürfel bereiten ........................
TEIL -1. AUFSTELLUNG Allgemeine Warnungen WARNUNG: Belüftungsöffnungen in der Geräteverkleidung oder in der integrierten Struktur, frei von Hindernissen halten. WARNUNG: Verwenden Sie keine mechanischen Werkzeuge oder andere Mittel als vom Hersteller vorgeschlagen, um den Abtauvorgang zu beschleunigen. WARNUNG: Verwenden Sie keine elektrischen Geräte innerhalb der Kühlfächer des Gerätes, sofern sie nicht vom Hersteller empfohlenen sind.
Seite 19
- Bauernhäusern und von Kunden in Hotels, Motels und anderen Unterkünften - Bett and Frühstück-Typ-Umgebungen; - Gastronomie und ähnliche Non-Retail-Anwendungen • Wenn die Steckdose nicht mit dem Kühlschrank Stecker zusammenpasst, muss es, um Gefahren zu vermeiden durch den Hersteller, dessen Kundendienst oder einer ähnlich qualifizierten Personen ersetzt werden.
Sicherheits Information • In dem Kühlschrank dürfen keine elektrischen Geräte benutzt werden. • Falls das Gerät einen alten Kühlschrank ersetzen soll, empfehlen wir als Sicherheitsvorkehrung, das Türschloß des alten Gerätes zu zerstören oder zu entfernen. Diese Maßnahme verhindert, daß spielende Kinder sich selbst darin einsperren.
Installation und Anschluss des Gerätes • Der Kühlschrank wird am Stromnetz mit 220-240V~ 50 Hz angeschlossen. • Bevor Sie das Gerät an das Stromnetz anschließen, überprüfen Sie die Stromart und Spannung am Aufstellort mit den Angaben auf dem Typenschild des Gerätes. •...
TEIL - 2. FUNKTIONEN Temperaturregelung • Die Temperatur im Kühlteil und Gefrierfach wird durch ein Thermostat automatisch konstant gehalten. Die Regelung der Temperatur erfolgt durch einen Drehschalter. W enn der Handgriff in der rechten Endposition /Position 5/ steht, sind die Temperaturen relativ niedrig ;...
Zubehör “Tür geöffnet” Anzeige; • Die geöffnete “ Anzeige “ der Tür auf dem Handgriff zeigt, ob die Tür richtig geschlossen hat, oder ob sie noch geöffnet ist. • wenn die Anzeige rot ist, die Tür ist noch geöffnet • wenn die Anzeige weiß ist, die Tür wird richtig geschlossen. •...
TEIL - 3. REINIGUNG UND PFLEGE • Grundsätzlich vor dem Reinigen Netzstecker ziehen bzw. Sicherung abschalten . • Gießen Sie kein Wasser in das Gerät. • Zur regelmäßigen Pflege eignet sich lauwarmes Wasser mit einem leicht desinfizierendem Reinigungsmittel (Handspülmittel). • Das Zubehör separat mit Seifenwasser reinigen. Diese dürfen nicht in der Spülmaschine gewaschen werden.
Gefrierfach; Entfernen Sie regelmäßig die im Gefrierfach entstandene Reifschicht. Reinigen Sie das Gefrierfach mindesten 2 x jährlich, wie bereits im Kühlteil beschrieben. Abtauen: • Prüfen Sie die korrekte Plazierung der Wasserauffangschale. • 1 Tag vor dem Abtauen, Thermostat auf 5. Position stellen, um die Güter komplett einzufrieren.
TEIL - 4. TRANSPORT UND STANDORTÄNDERUNG Transport und Änderung des Standortes • Die Orginalverpackung muss nicht verwendet werden. • W ährend des Transportes Gerät mit einem festen Seil sichern. Die Transportbestimmungen auf dem Welllpappkarton müssen befolgt werden. • Vor Transport alle beweglichen Teile aus dem Gerät entnehmen oder mit Klebstreifen befestigen.
TEIL - 5. BEVOR SIE DEN KUNDENDIENST RUFEN Ihr Gerät ist so konstruiert und hergestellt, daß Störungsfreiheit und lange Lebensdauer gegeben sind. Sollte dennoch während des Betriebs eine Störung auftreten, so wenden Sie sich bitte an die nächste Kundendienststelle. Prüfen Sie vorher jedoch, ob die Störung evtl.
Seite 28
• Ihr Kühlgerät wurde gemäß seiner Klimaklasse zum Einsatz bei bestimmten Umgebungstemperaturen entwickelt; entsprechende Angaben finden Sie auf dem Typenschild. Wenn Sie das Kühlgerät bei Umgebungstemperaturen außerhalb des empfohlenen Bereiches betreiben, kann die Kühlleistung darunter leiden. Klimaklasse Umgebungstemperatur (°C) zwischen 16 und 43 zwischen 16 und 38 zwischen 16 und 32 zwischen 10 und 32...
TEIL - 6. BAUTEILE UND VORRATSFÄCHER Diese Abbildung dient lediglich der Veranschaulichung. Die Teile und Komponenten können je nach Modell variieren. 1) KÜHLTEIL-ROST 2) GLASREGAL 3) GEMÜSEFACH 4) VERSTELLBARE FÜßE 5) THERMOSTATDECKEL 6) GEFRIERFACH 7) KÜHLSCHRANK 8) EISSCHALE 9) EIERFACH 10) FLASCHEN FACH DE - 27 -...
