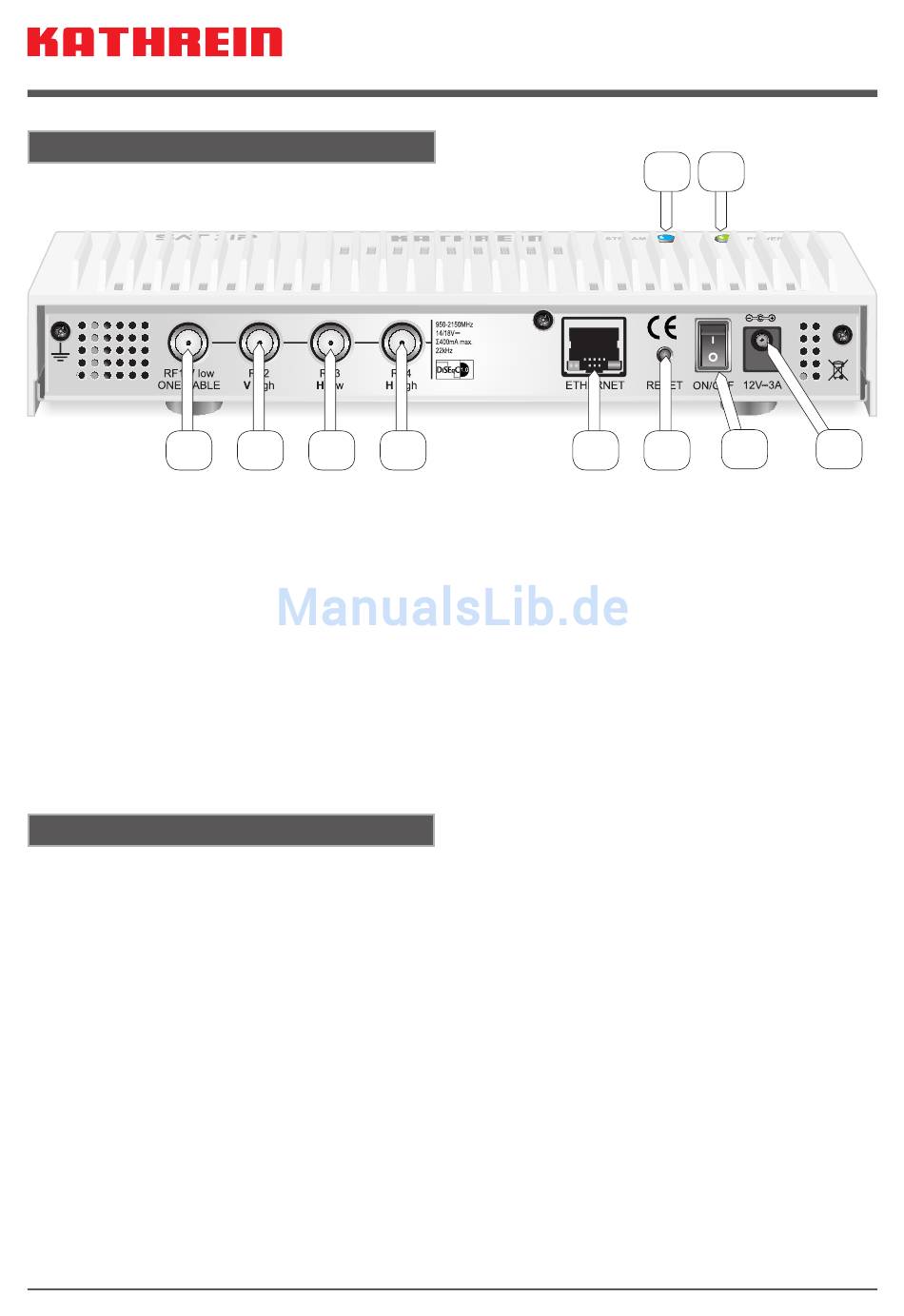

Rear panel
3
On upper part of the housing:
1.
Stream LED
2.
Power LED
Rear panel:
3.
RF1 input V low in Quatro mode;
single-cable (EN 50494) connection
4.
RF2 input V high in Quatro mode
Start-up
Proceed as follows for start-up of the EXIP 414:
1. Connection of RF inputs:
• On a Quad LNB or multi-switch: You can connect the four input cables as desired. The
device is preconfigured for this.
• On a Quatro LNB, splitter or tap:
You must connect the four input cables correctly according to the voltage assignment (Tab
2). On the Web interface, "Quatro" must be set under "LNB settings".
• On a single-cable multi-switch/single-cable LNB:
Only the RF1 connection must be connected to a multi-switch or LNB. On the Web inter-
Only the RF1 connection must be connected to a multi-switch or LNB. On the Web inter-
face, "OneCable" and the available UB slots must be selected under LNB settings.
4
5
6
7
5.
RF3 input H low in Quatro mode
6.
RF4 input H high in Quatro mode
7.
10/100/1000 MBit Ethernet
8.
Reset button
9.
On/off switch
10.
Power supply connection (12 V/3 A)
4 / 9
1
2
9
10
8
