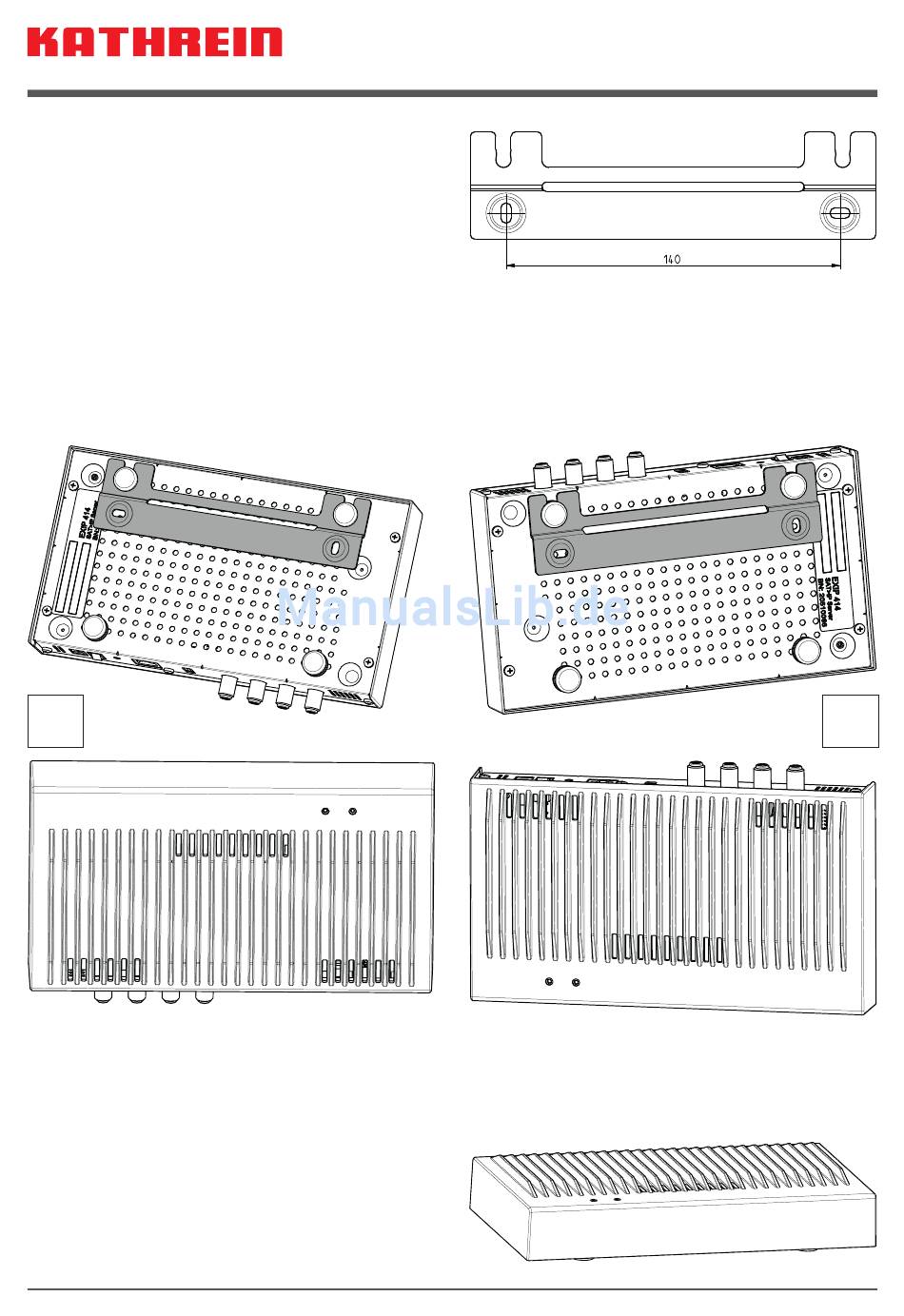

Wall mounting
• For wall mounting only use the sup- For wall mounting only use the sup-
plied bracket
cluded in
Mount wall support with two screws
(Ø 4 mm, head diameter > 7 mm)
• Screw on/attach all cables
• Insert the device from above with feet
pointing down into the wall support
A
(Note on mounting position A: to prevent the
device from being pushed out of the sup-
port, the device should be held during sub-
sequent cable installation work)
• Table mounting (no fastening required)
(screws are not
the delivery
in-
scope)
3 / 9
B
