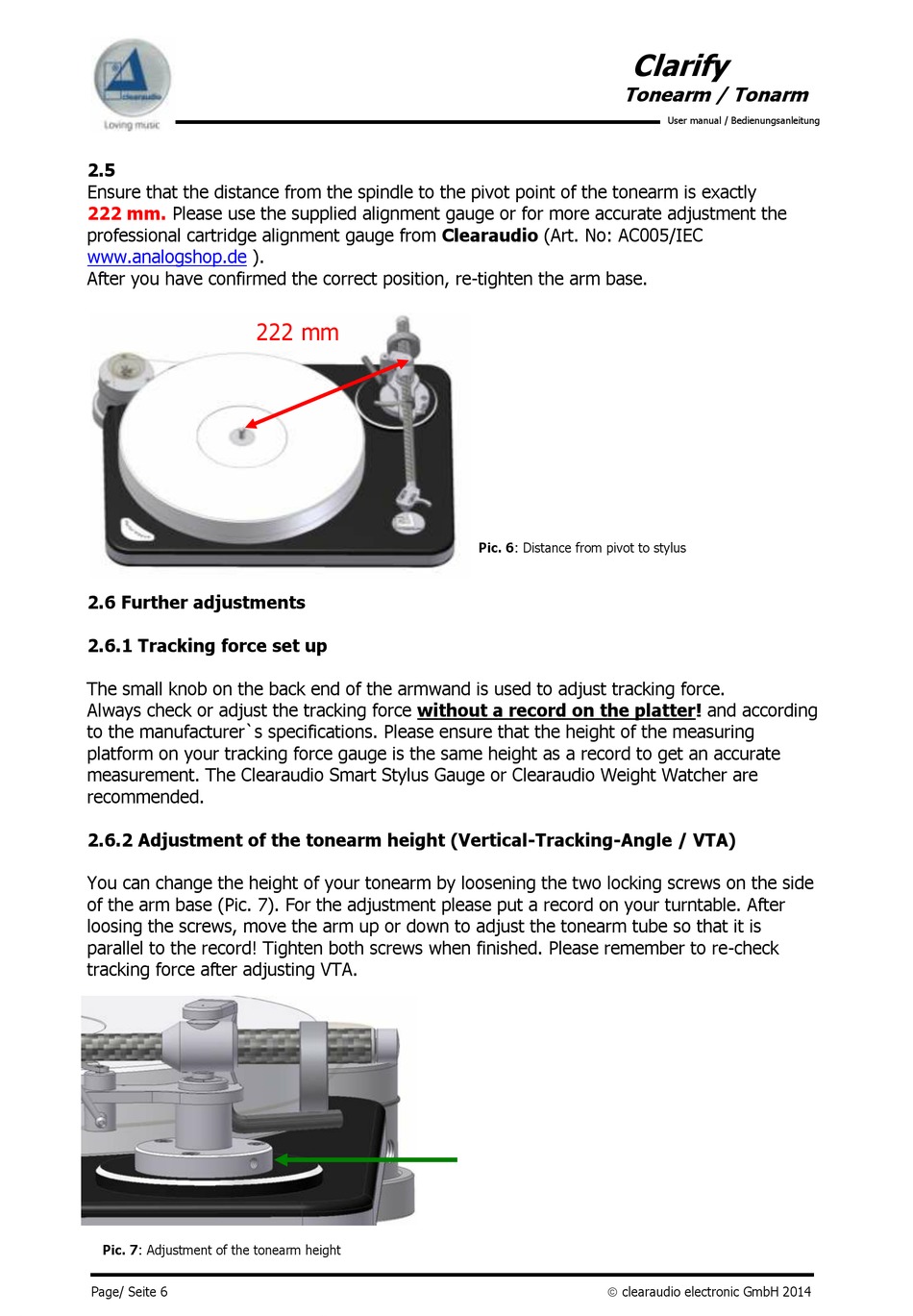

Clarify
Tonearm / Tonarm
User manual / Bedienungsanleitung
2.5
Ensure that the distance from the spindle to the pivot point of the tonearm is exactly
222 mm. Please use the supplied alignment gauge or for more accurate adjustment the
professional cartridge alignment gauge from Clearaudio (Art. No: AC005/IEC
www.analogshop.de ).
After you have confirmed the correct position, re-tighten the arm base.
222 mm
Pic. 6: Distance from pivot to stylus

2.6 Further adjustments

2.6.1 Tracking force set up
The small knob on the back end of the armwand is used to adjust tracking force.
Always check or adjust the tracking force without a record on the platter! and according
to the manufacturer`s specifications. Please ensure that the height of the measuring
platform on your tracking force gauge is the same height as a record to get an accurate
measurement. The Clearaudio Smart Stylus Gauge or Clearaudio Weight Watcher are
recommended.
2.6.2 Adjustment of the tonearm height (Vertical-Tracking-Angle / VTA)
You can change the height of your tonearm by loosening the two locking screws on the side
of the arm base (Pic. 7). For the adjustment please put a record on your turntable. After
loosing the screws, move the arm up or down to adjust the tonearm tube so that it is
parallel to the record! Tighten both screws when finished. Please remember to re-check
tracking force after adjusting VTA.
Pic. 7: Adjustment of the tonearm height
Page/ Seite 6  clearaudio electronic GmbH 2014
