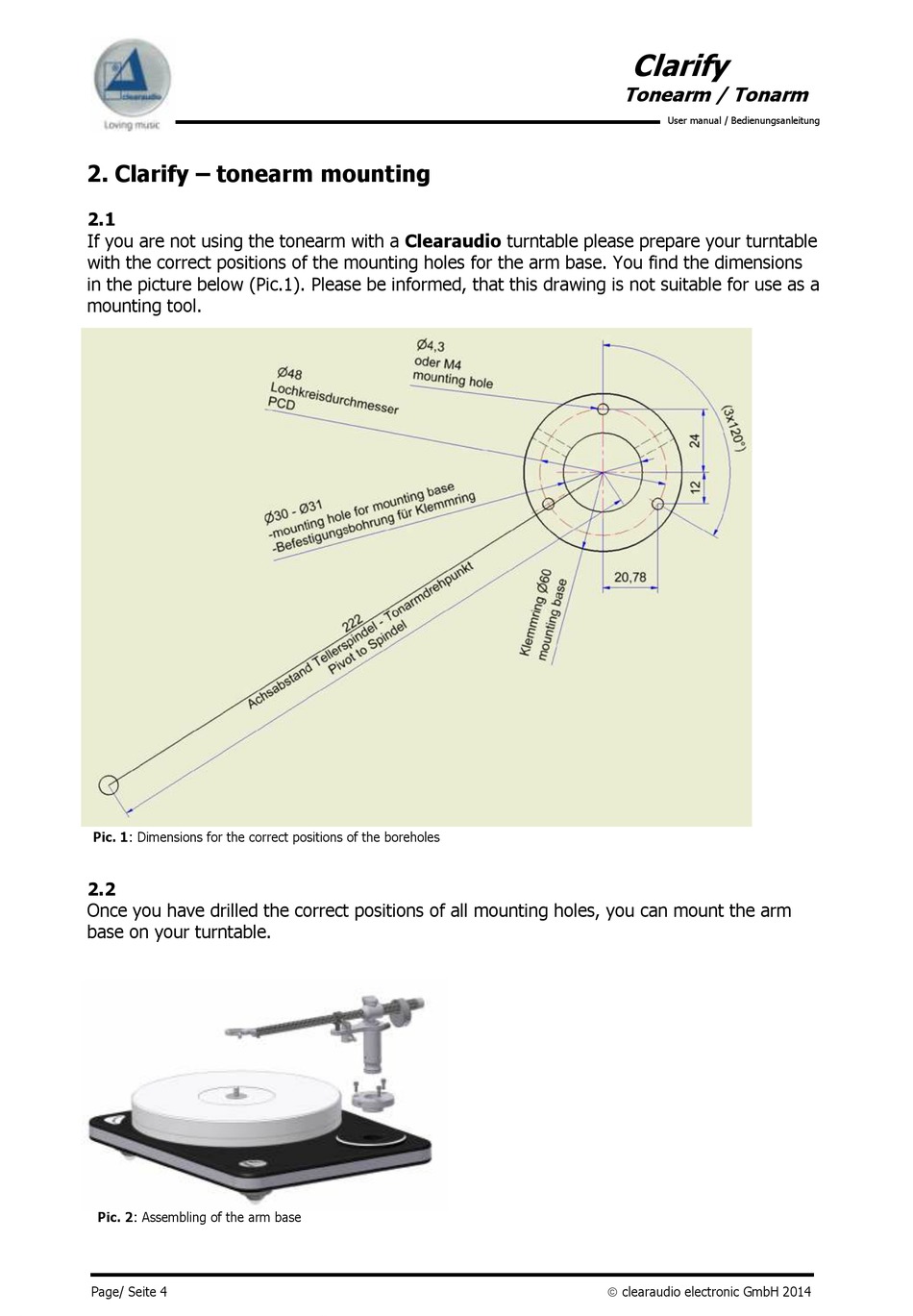

2. Clarify – tonearm mounting
2.1
If you are not using the tonearm with a Clearaudio turntable please prepare your turntable
with the correct positions of the mounting holes for the arm base. You find the dimensions
in the picture below (Pic.1). Please be informed, that this drawing is not suitable for use as a
mounting tool.
Pic. 1: Dimensions for the correct positions of the boreholes
2.2
Once you have drilled the correct positions of all mounting holes, you can mount the arm
base on your turntable.
Pic. 2: Assembling of the arm base
Page/ Seite 4
clearaudio electronic GmbH 2014
