Installation and connection

Follow the instructions in the section „Preparing installation"!
• First remove the U-shape wall mount from the LED wall lamp. In order to do so,
completely unscrew the two screws located left and right on the lower (open) end
of the LED wall lamp.
• Attach the wall mount vertically to the wall using two screws and, if necessary,
dowels. Use screws and dowels that are suitable for the installation surface.
When drilling any holes or fastening the screws, make sure not to damage
and cables or wiring.
• Open the installation box located inside the lamp. In order to do so, unscrew the four
fastening screws in the cover and then remove the cover.

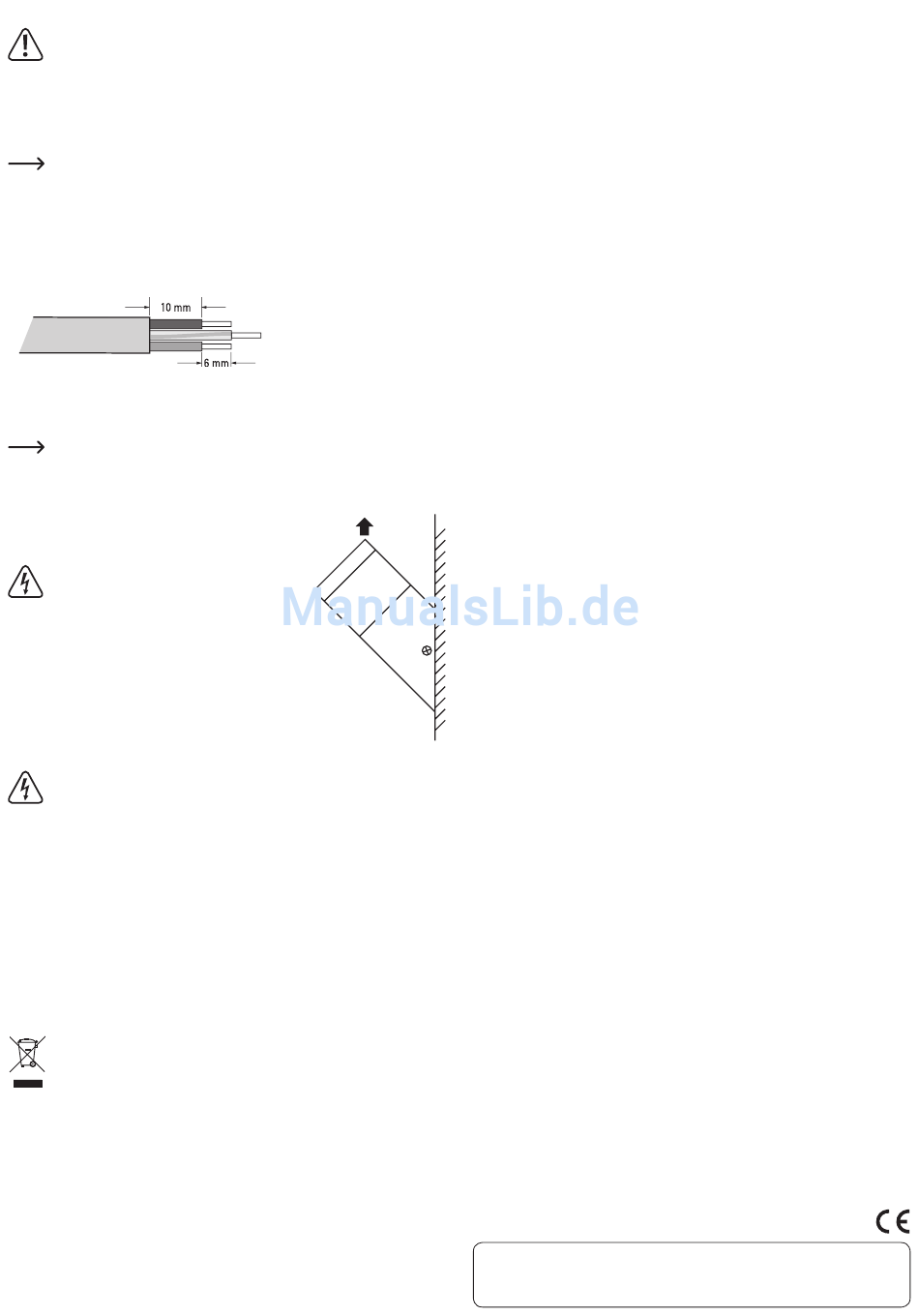

• Remove the outer insulation of the mains cable to a length of maximum 16 mm. Strip
the three wires of the mains cable to a length of approx. 6 mm. The wire of the pro-
tective ground conductor (yellow-green wire) should be at least 6 mm longer in size
in order for it to remain last in the terminal block in case of failure.
• Guide the mains cable through the rubber sealing of the installation box and con-
nect the 3 wires of the mains cable to the 3-pin terminal block located inside the
installation box (brown wire = L/phase, blue wire = N/neutral wire, yellow-green
wire = PE/protective ground conductor/earthing symbol).
Check the terminal block's other screw fastenings (the lead wires to the LED
driver) and tighten them if necessary.
• Reinstall the cover of the installation box (ensuring the correct position of the
sealing) and secure it with 4 screws.
• Put the installation box inside the LED wall lamp. Place
the LED wall lamp on the wall mount and attach it with
the two screws removed earlier.
Choose the correct installation position when
installing the LED wall lamp. The lamp must
face upwards (see picture on the right).
Any other installation position could cause wa-
ter to enter the LED wall lamp, hence damaging
the lamp.
There could also be a risk of lethal electric
shock otherwise!
• Connect the mains voltage and check the functions of the LED wall lamp.
If the LED wall lamp does not light up, disconnect the mains voltage imme-
diately (unscrew the fuse or switch off the circuit breaker accordingly, or
disconnect the residual current circuit breaker).
Then check the connection of the LED wall lamp.
In case of doubt, consult a professional electrician!

Maintenance and cleaning

This product does not require maintenance. Maintenance or repairs may be carried
out by a professional only. The LEDs are permanently installed and non-replaceable.
Use a clean, soft, dry cloth to clean the product. You can easily remove dust using a
clean, soft brush or a vacuum cleaner.
Do not use any aggressive, chemical or abrasive cleaning agents as these may cause
surface discoloration or even changes in the material.
Disposal
Do not dispose of the product with your household waste.
Please dispose of the device at the end of its service life in accordance with
legal regulations; e.g. return the device to a public collection point.

Technical data

Operating voltage............................... 220 - 240 V/AC, 50 Hz
Protection class ................................. I
Protection class ................................. IP44
Material ............................................... stainless steel
Installation location ........................... Indoors/outdoors
Power consumption........................... max. 10.5 W
Illuminants ........................................... 60 LEDs (permanently installed, non-replaceable)
Light color............................................ 2700 - 3000 K (Warm-white)
Luminous flux ...................................... 900 lm
Environmental conditions ................. Temperature -40 °C to +55 °C
Dimensions (L x Ø) ............................. 214 x 75 mm
Weight .................................................. 351 g
Top
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent the
technical status at the time of printing.
© Copyright 2014 by Conrad Electronic SE.
Relative humidity 0% to 95%
