Dorma TS 73 EMF Montageanleitung

Dorma TS 73 EMF Montageanleitung

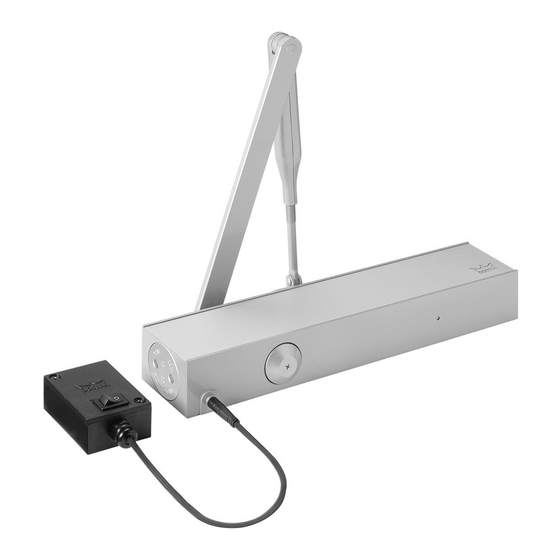

Mit elektromagnetisch-hydraulischer feststellvorrichtung
TS 73 EMF
DORMA
Deutschland
GmbH
DORMA
Deutschland
GmbH
Postfach 4009
Postfach 4009
13
58 247 Ennepetal
58 247 Ennepetal
0432-CPD-0189
EN 1154:1996+A1:2002
4 8
4/5/6
1 1
3
0432-CPD-0037
EN 115 :199 +A1:200
5
7
2
DOP_0070 / DOP_0071 / DOP_0072
DOP_0070 / DOP_0071 / DOP_0072
04
3 8
4/5/6
1 1
3
Technische Daten
Betriebsspannung:
24 V DC ± 15%
Leistungsaufnahme: 2,0 W
Schutzart:
IP 20
Temperatur:
–15°C / +40°C
Rel. Luftfeuchtigkeit: max. 93% ohne Betauung
Einschaltdauer:
100% ED
Ausrückmoment:
Größe EN 4 = ca. 55 Nm
Größe EN 5 = ca. 60 Nm
Größe EN 6 = ca. 65 Nm
