8

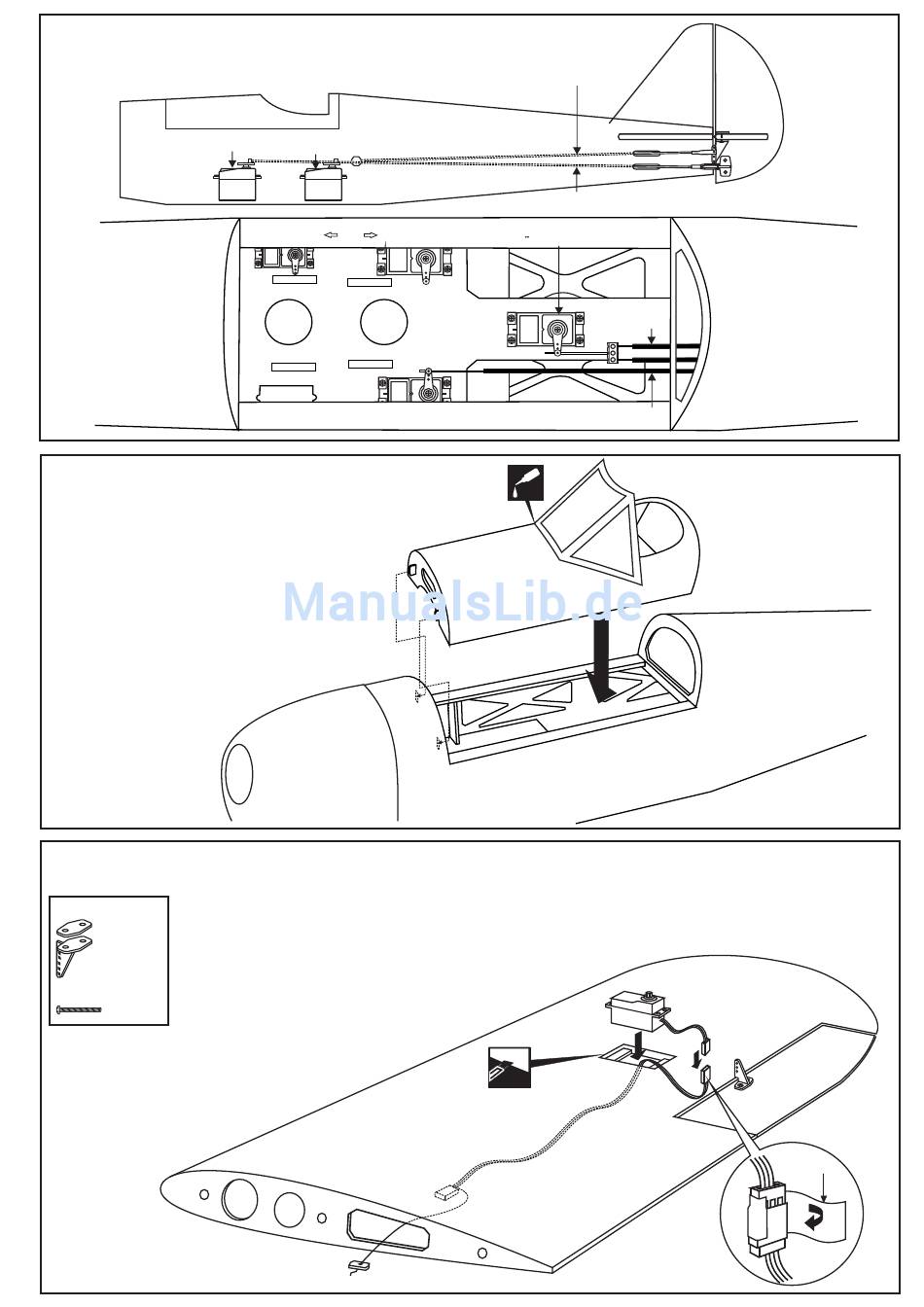

Rudder servo
Seitenruder servo
FUSELAGE
TOP VIEW
9
10
1-Connect the 30cm extension (not include) to the aileron servo and secure with the adhesive tape.
2-Using the thread (pre-installed at factory), full the extension out of the wing as shown.
3-Attach the aileron servo into the wing.
4-Depending on the position of the linkage, determine the location of the aileron control horn.
Control horn
The horn holes must be perfectly aligned with the axis of articulation.
5-Mark the position of the "foot" of the horn on the aileron.
6-Remove the control horn and drill two 5/64" holes through
................2
the aileron.
7-Attach the aileron control horn using 2x20mm screw.
2x20mm screw
Do the same way with second wing half.
..........4
BOTTOM - VIEW / Unteransicht
Elevator servo
Hohenruder servo
OR
Throttle servo
Throttle servo
Rudder servo / Seitenruder servo
Elevator pushrod (x2)
Rudder pushrod (x1)
Elevator servo
Hohenruder servo
Elevator
pushrod (x2)
Rudder pushrod (x1)
CA
Cut away only
the film.
Magnetic cockpit
Adhesive
tape
