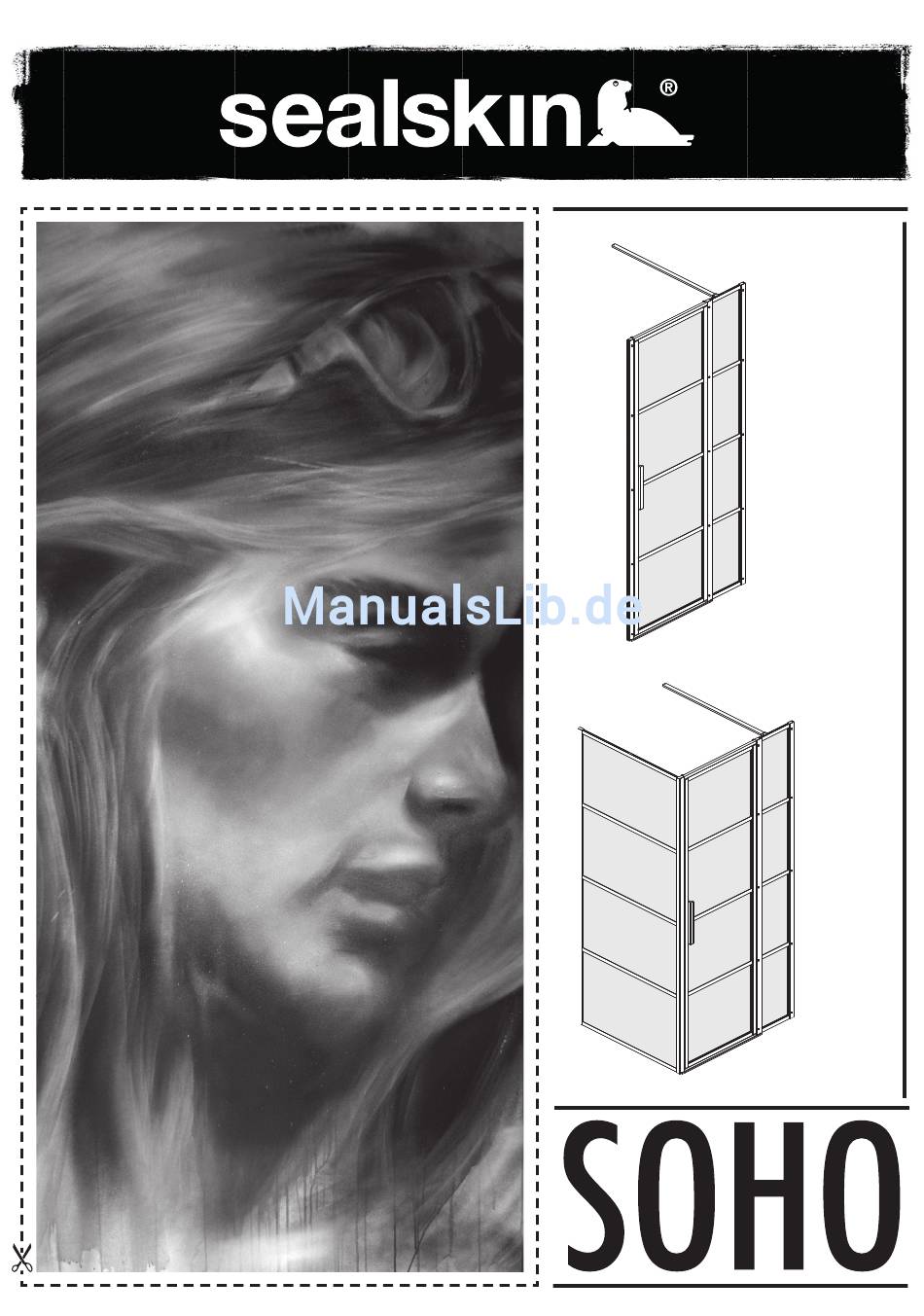

Seite 1
Update: 2017101 KB17 Update: 20171011 KB18 KB01...
Seite 2
Included MUUR PLUG SCHROEVEN INBUSSLEUTEL CHEVILLE CLÉ ALLEN WALL ANCHORS SCREWS ALLEN KEY Additional tools BOOR BOOR BITS: 3.0MM, 6.0MM PERCEUSE FORETS: 3.0MM, 6.0MM DRILL DRILL BITS: 3.0MM, 6.0MM SCHROEVENDRAAIER SILICONENKIT WATERPAS TOURNEVIS SILICONE NIVEAU SCREW DRIVER SILICONE BUBBLE LEVEL MEETLINT POTLOOD IJZER ZAAG...
Seite 3
Wall bracket M5x8 Screw Bracing bar Fixed panel profile top cover Bracing bar clip Cross head countersunk screw ST3.5X20 Fixed panel Wall profile top cover Wall profile Bracket for Horizontal bar Wall anchor Horizontal bar Magnet profile Magnet gasket Door panel Bottom gasket A 15 Phillip head hexagon screw ST4X10 Back splash...
Seite 4
SP 3 SP 1 SP 2 SP 4 SP 1 Corner profile top cover SP 2 Return panel SP 3 Wall profile top cover SP 4 Wall profile...
Seite 5
1200 (1185mm~1215mm) 1000 ( 985 mm~1015mm) 4 10...
Seite 6
4 25 4 21 inside outside inside outside 4 25 4 21 plaatsing zónder dorpel placement sans seuil mounting without threshold 4 11...
Seite 15
24 H 24 H NL Voor de reiniging dient u een PH neutraal reinigingsmiddel of de aanbevolen Sealskin douchereini- ger te gebruiken. Geen verdunner, alkalische, zuur, chloor of schurende middelen gebruiken. GB For cleaning use a pH-neutral cleaning agent or the special cleaner recommended by us. Not to use are solvents, as well as alkaline, solvent -, acid- and chloric or scrubbing agents.
Seite 17
Certifi cato di garanzia Certifi cado de garantía KB17 KB18 KB01 This Sealskin product has a warranty period of 5 years. Normal wear and tear on components such as gaskets are excluded from this warranty. Wholesale dealer: ............................ Adress: ............................
Seite 18
De producent houdt zich het recht voor, ten alle tijde zonder tegenbericht, veranderingen door te voeren. The producer reserves the right to modify the product at any time without prior notice. Der Produzent behält sich jederzeit das Recht, ohne Vorbescheid Abänderungen vorzunehmen. Le producteur se réserve le droit de modifier le produit sans aucun préavis.
