Dimensional Drawings; Technical Data; Light Fitting Dhls 85 - Ceag dHLS 85 Betriebsanleitung

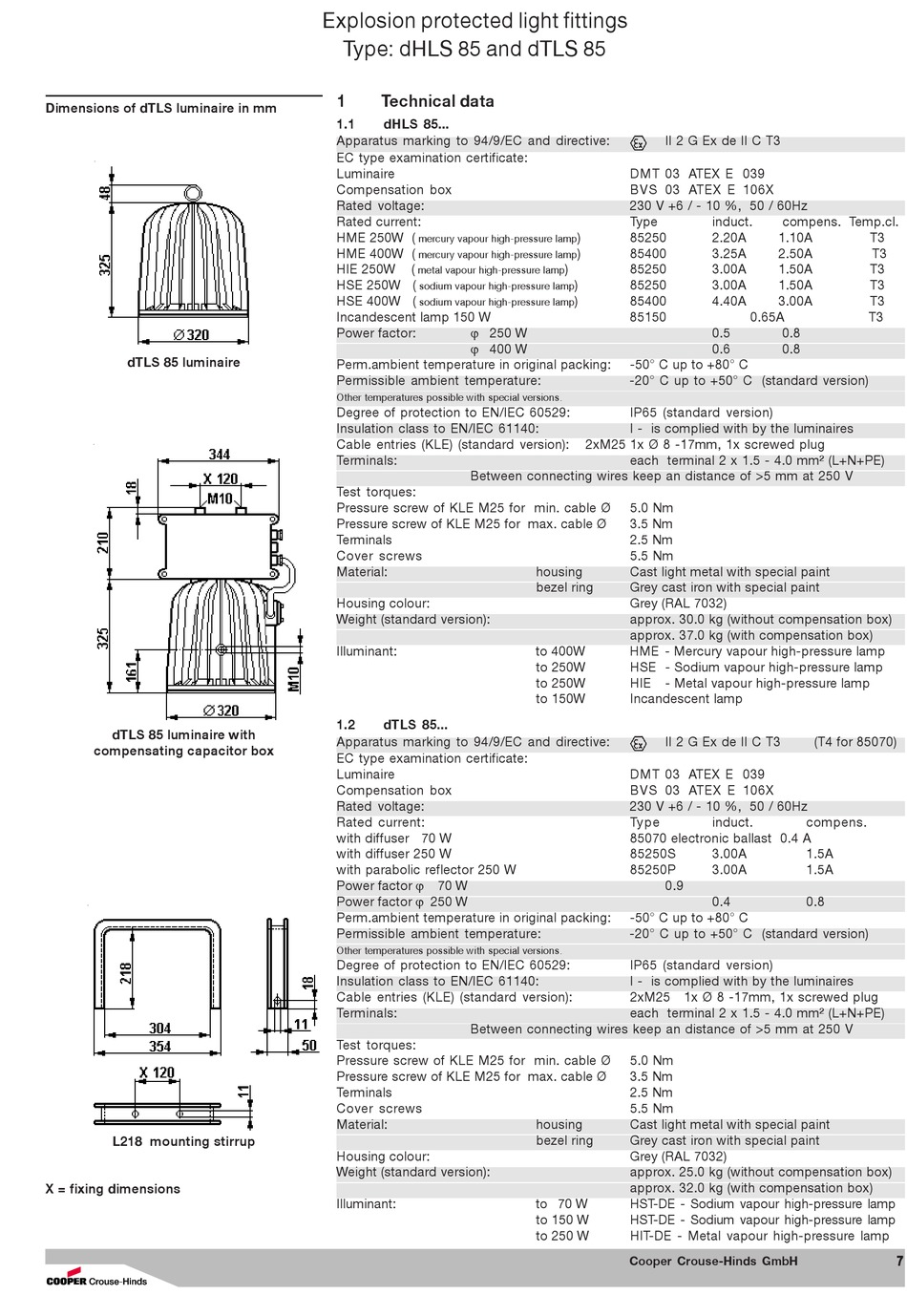

Dimensions of dTLS luminaire in mm
dTLS 85 luminaire
dTLS 85 luminaire with
compensating capacitor box
L218 mounting stirrup
X = fixing dimensions
Explosion protected light fittings
Type: dHLS 85 and dTLS 85
1

Technical data

1.1 dHLS 85...
Apparatus marking to 94/9/EC and directive:
EC type examination certificate:
Luminaire
Compensation box
Rated voltage:
Rated current:
HME 250W (
mercury vapour high-pressure lamp
HME 400W (
mercury vapour high-pressure lamp
HIE 250W (
metal vapour high-pressure lamp
HSE 250W (
sodium vapour high-pressure lamp
HSE 400W (
sodium vapour high-pressure lamp
Incandescent lamp 150 W
Power factor: ϕ 250 W
ϕ 400 W
Perm.ambient temperature in original packing:
Permissible ambient temperature:
Other temperatures possible with special versions.
Degree of protection to EN/IEC 60529:
Insulation class to EN/IEC 61140:
Cable entries (KLE) (standard version):
Terminals:
Between connecting wires keep an distance of >5 mm at 250 V
Test torques:
Pressure screw of KLE M25 for min. cable Ø
Pressure screw of KLE M25 for max. cable Ø
Terminals
Cover screws
Material:
Housing colour:
Weight (standard version):
Illuminant:
1.2 dTLS 85...
Apparatus marking to 94/9/EC and directive:
EC type examination certificate:
Luminaire
Compensation box
Rated voltage:
Rated current:
with diffuser 70 W
with diffuser 250 W
with parabolic reflector 250 W
Power factor ϕ
70 W
Power factor ϕ 250 W
Perm.ambient temperature in original packing:
Permissible ambient temperature:
Other temperatures possible with special versions.
Degree of protection to EN/IEC 60529:
Insulation class to EN/IEC 61140:
Cable entries (KLE) (standard version):
Terminals:
Between connecting wires keep an distance of >5 mm at 250 V
Test torques:
Pressure screw of KLE M25 for min. cable Ø
Pressure screw of KLE M25 for max. cable Ø
Terminals
Cover screws
Material:
Housing colour:
Weight (standard version):
Illuminant:
II 2 G Ex de II C T3
DMT 03 ATEX E 039
BVS 03 ATEX E 106X
230 V +6 / - 10 %, 50 / 60Hz
Type
) 85250
) 85400
) 85250
) 85250
) 85400
85150
-50° C up to +80° C
-20° C up to +50° C (standard version)
IP65 (standard version)
I - is complied with by the luminaires
2xM25 1x Ø 8 -17mm, 1x screwed plug
each terminal 2 x 1.5 - 4.0 mm² (L+N+PE)
5.0 Nm
3.5 Nm
2.5 Nm
5.5 Nm
housing Cast light metal with special paint
bezel ring Grey cast iron with special paint
Grey (RAL 7032)
approx. 30.0 kg (without compensation box)
approx. 37.0 kg (with compensation box)
to 400W HME - Mercury vapour high-pressure lamp
to 250W HSE - Sodium vapour high-pressure lamp
to 250W HIE - Metal vapour high-pressure lamp
to 150W Incandescent lamp
II 2 G Ex de II C T3
DMT 03 ATEX E 039
BVS 03 ATEX E 106X
230 V +6 / - 10 %, 50 / 60Hz
Type
85070 electronic ballast 0.4 A
85250S
85250P
0.9
-50° C up to +80° C
-20° C up to +50° C (standard version)
IP65 (standard version)
I - is complied with by the luminaires
2xM25 1x Ø 8 -17mm, 1x screwed plug
each terminal 2 x 1.5 - 4.0 mm² (L+N+PE)
5.0 Nm
3.5 Nm
2.5 Nm
5.5 Nm
housing Cast light metal with special paint
bezel ring Grey cast iron with special paint
Grey (RAL 7032)
approx. 25.0 kg (without compensation box)
approx. 32.0 kg (with compensation box)
to 70 W HST-DE - Sodium vapour high-pressure lamp
to 150 W HST-DE - Sodium vapour high-pressure lamp
to 250 W HIT-DE - Metal vapour high-pressure lamp
