2 2 . . 5 5 P P o o w w e e r r s s u u p p p p l l y y

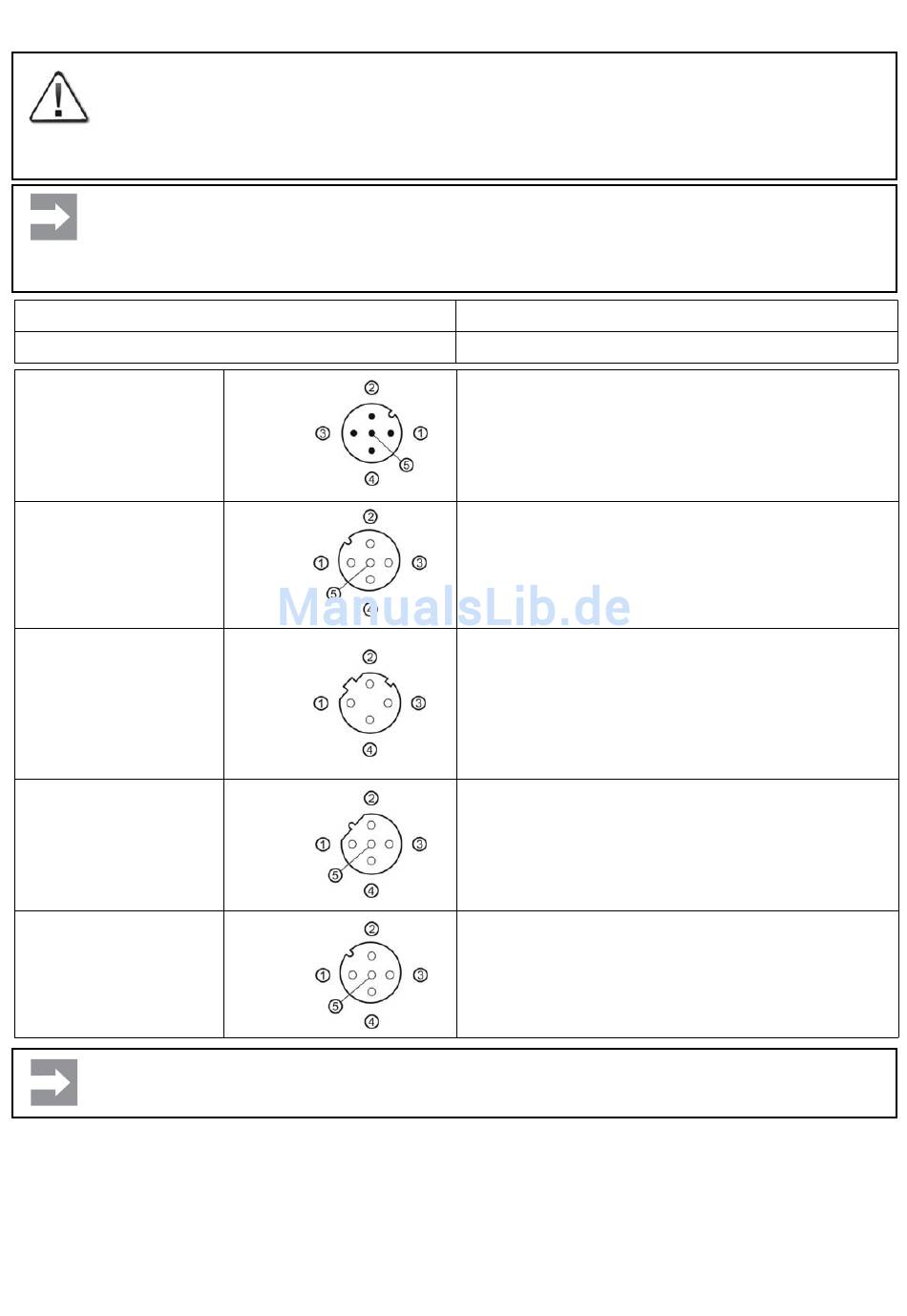

Supply voltage
Rating
supply voltage
- AUX M12 pin
A-keyed
suplly voltage
- AUX M12 connector
A-keyed
Ethernet connector
- Ports M12 D-keyed
RS232
M12 B-keyed connec-
tor
Relais contact
M12 A-keyed connec-
tor
C C a a u u t t i i o o n n
Insecure outputs. Operations on the IE-SW8-M-IP67 only realise by qualified em-
ployees. Use a power supply unit according to DIN EN 60742 (VDE 0551). Secure
all electrical outputs.
- The switch operates with Auto-MDIX technology, so straight-through or crossover
cables can be used to connect network interfaces or other network devices.
- The chassis connecting serves as an additionally ground.
In all power schemes a fuse of 4 A slow is required in the power supply lines.
10 ... 35 V DC / 10 ... 24 V AC
5 W
PIN 1: + 24 V DCUI1
PIN 2: + 24 V DC UI2
PIN 3: GND UI
PIN 4: GND UI
PIN 5: PE
0
PIN 1: + 24 V DC UI1
PIN 2: + 24 V DC UI2
PIN 3: GND UI
PIN 4: GND UI
PIN 5: PE
0
PIN 1: Transmission data + (TD+)
PIN 2: Transmission data - (RD+)
PIN 3: Receiver data + (TD-)
PIN 4: Receiver data - (RD-)
Shield over metallic tread connected with
functional earth
PIN 1: n.c.
PIN 2: TxD
PIN 3: GND Data
PIN 4: RxD
PIN 5: FE
Pin 1: +24 V DC
PIN 2: relais contact 2 (potentional free)
PIN 3: GND
PIN 4: relais contact 1 (potentional free)
PIN 5: PE
17
