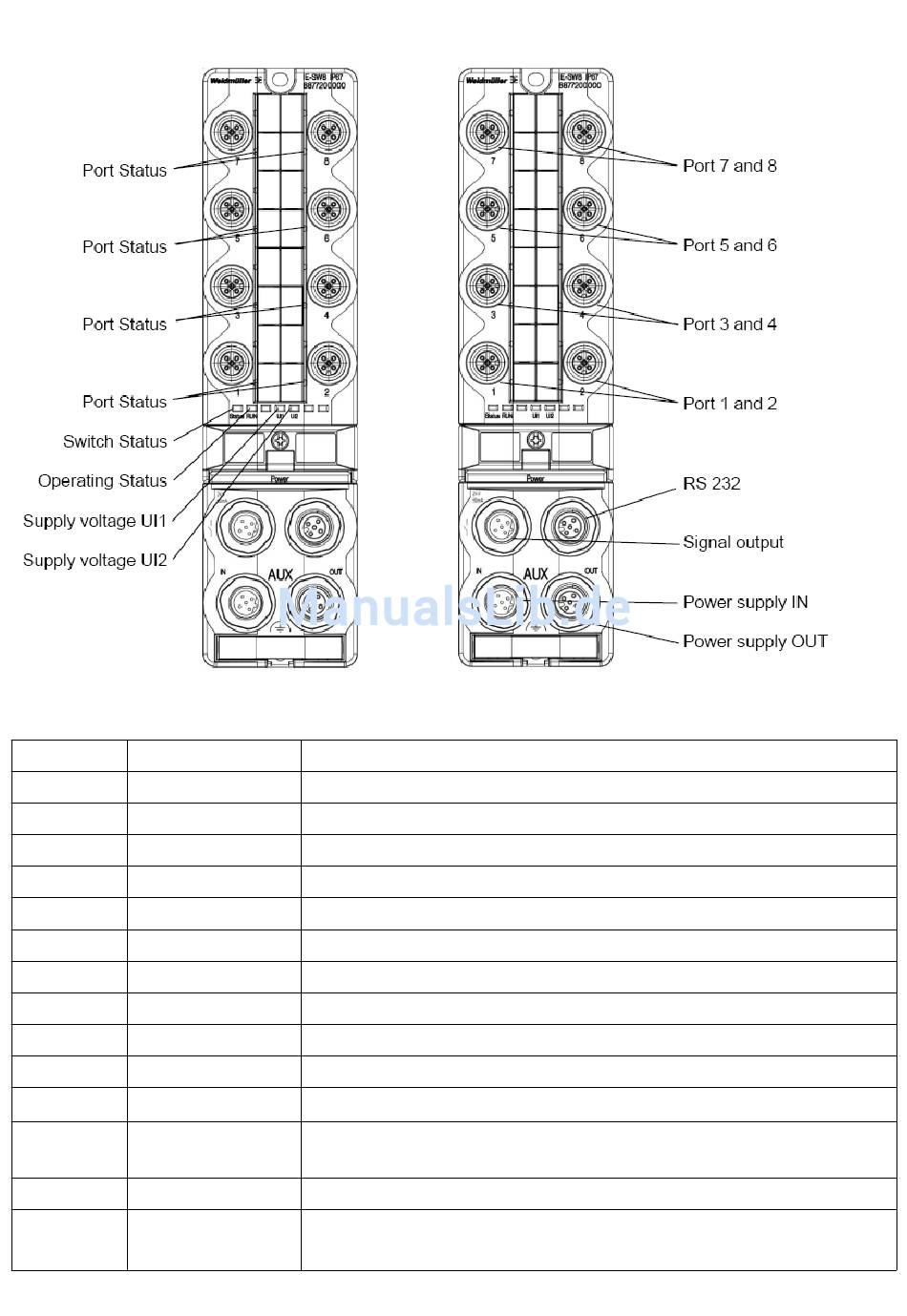

2 2 . . 3 3 D D i i s s p p l l a a y y / / C C o o n n n n e e c c t t i i o o n n
2 2 . . 4 4 L L E E D D
Port
off
green
green flashes
yellow
yellow flashes
Status
green
red
RUN
green
red
off
Power
U1 and U2 off
UI1 green
UI1 red
UI2 green
UI2 red
no Link
100 Mbit/s Link
100 Mbit/s Link traffic
10 Mbit/s Link
10 Mbit/s Link traffic
switch is ready for operation
switch is not ready for operation
switch is in operation
reset
not powered
both supply voltage are turned off
supply voltage UI1 is turned on
supply voltage UI2 is turned onpower supply UI1 is insufficient or tur-
ned off
supply voltage UI2 is turned on
supply voltage UI1 is turned onpower supply UI2 is insufficient or tur-
ned off
