Inhaltszusammenfassung für Weidmuller IE-SW5-ECO-FLAT
Seite 1

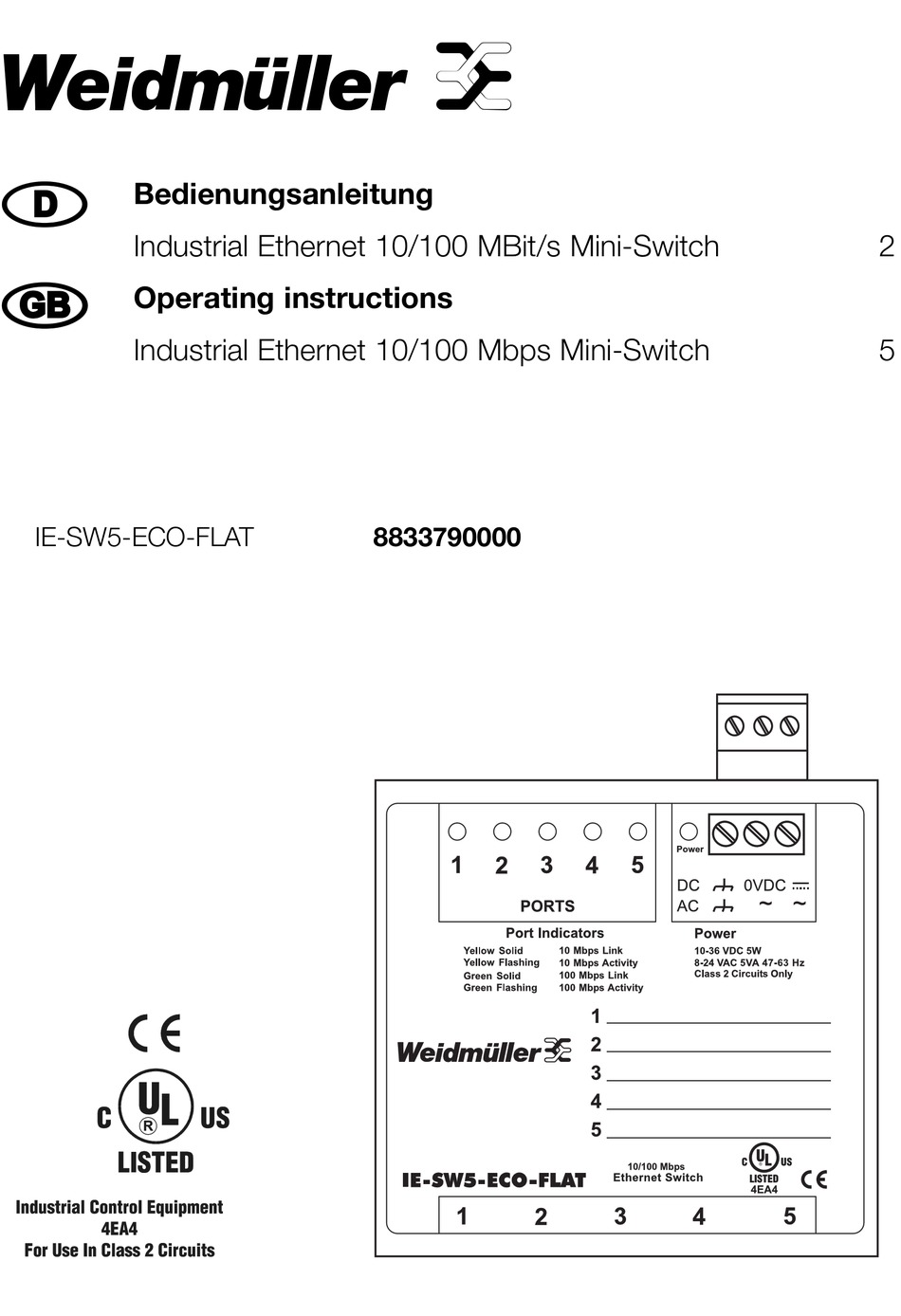

Weidmüller t Bedienungsanleitung Industrial Ethernet 10/100 MBit/s Mini-Switch Operating instructions Industrial Ethernet 10/100 Mbps Mini-Switch IE-SW5-ECO-FLAT 8833790000...
Seite 2
Die Store-und-Forward Operation wurde implementiert und Broadcast, Multicast und Unicast werden von allen Ports unterstützt. Der IE-SW5-ECO-FLAT hat fünf Auto-MDIX Ports für den Anschluss der vorhandenen Geräte. Über eine Power-LED hinaus hat jeder Port eine eigene LED, die Link, Aktivität und Datenrate zeigt und eine, die den Duplex Status überprüfbar macht.
Seite 3
Technische Zeichnung Stromversorgung Möglichkeiten der Stromversorgung Spannung im Bereich von 10-36 V DC oder 8-24 V AC, 5 Watt Leistungsaufnahme; muß entsprechen- den Strom liefern. Kabel sollten entsprechend dimensioniert werden. Betriebserde wird direkt mit Masse verbunden und das Gehäuse ist gegen Masse isoliert. Eingangs-Verbindungen sind gegen Verpolung geschützt.
Seite 4
Netzwerkverbindungen Der Switch arbeitet mit Auto-MDIX Technologie, so dass Crossover und Straight-Through-Kabel genutzt werden können, um Netzwerkinterfaces oder andere Geräte anzuschließen. Gewährleistung für dieses Produkt Die Gewährleistung für alle aktiven Industrial Ethernet Produkte und aktiven SAI-Produkte von Weidmül- ler beträgt 2 Jahre und richtet sich nach den Gewährleistungsbedingungen aus den allgemeinen Ver- kaufsbedingungen des Weidmüller Unternehmens, welches die Produkte an Sie verkauft hat.
Seite 5

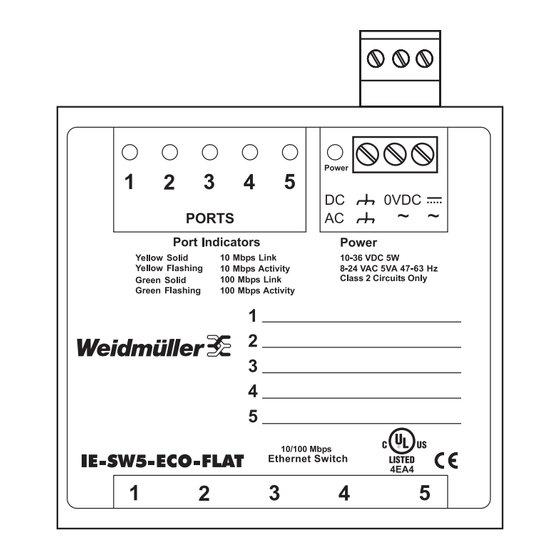

LED, each port has one LED showing link/activity/rate and one showing duplex status. The unit opera- tes from a wide range of low-voltage AC or DC power. The IE-SW5-ECO-FLAT is provided with a writable label for easy identification of the remote device atta- ched to each cable...
Seite 6
Dimensional Drawing Power Options Power Considerations Voltage in the range of 10-36 VDC or 8-24 VAC must deliver current commensurate with 5-watt power consumption. The recommended size for solid power conductors is 16-22 AWG; for stranded conduc- tors, use 16-18 AWG. Ground is directly connected to zero volts and the chassis is isolated from zero volts.
Seite 7
Network Connections The switch employs Auto-MDIX technology so that either straight-through or crossover cables can be used to connect to network interface adapters or to another hub. Warranty of this product Weidmüller gives a 2 year warranty on all its actively processing Industrial Ethernet products and all ac- tively processing I/O-Interface products in accordance with the warranty terms as described in the ge- neral conditions of sale of the Weidmüller company which has sold the products to you.
