Mounting

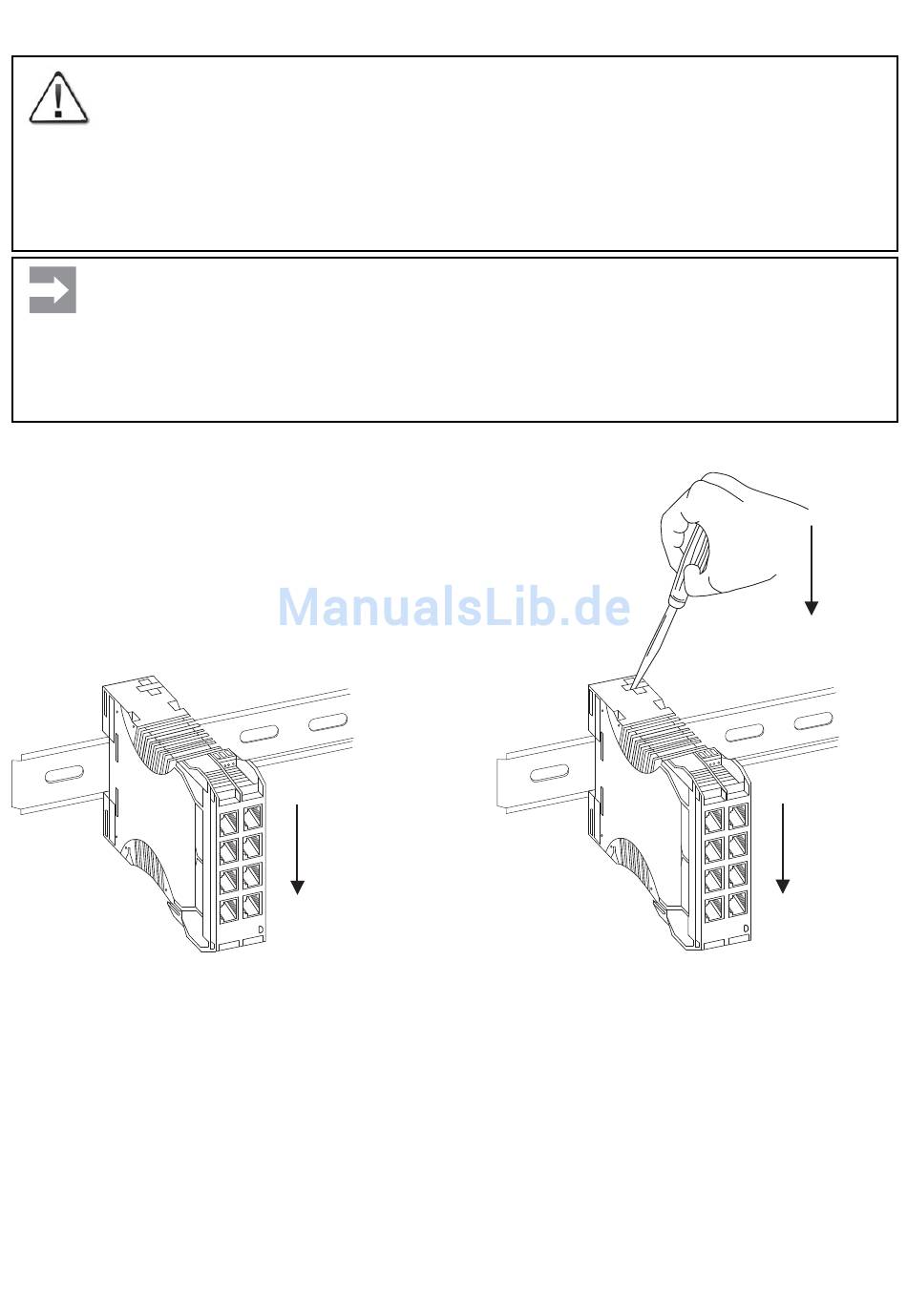

Snap the switch vertically on a horizontal DIN rail.
C C a a u u t t i i o o n n
- The IE-SWx-WAVE is designed for top hat rail mounting according to standard
EN50022. Using a different top hat rail can result in improper mounting. Use a top
hat rail according to standard EN 50022. Pay attention to the mounting instructi-
ons of the manufacturer.
- It is not allowed to mount or demount the IE-SWx-WAVE during operation.
- There must be 2" (ca. 5 cm) free space on both sides (top and bottom) for venti-
lation to the next device. The IE-SWx-WAVE can be mounted side by side with
other WAVE-Line devices.
- To ensure proper ventilation through the device the unit shall be mounted on a
DIN-Rail which is oriented horizontal on the vertical rear wall of the control cabinet.
Demounting
For demounting use a flat-bladed screwdriver,
open the latch at either the top or bottom of
the switch.
