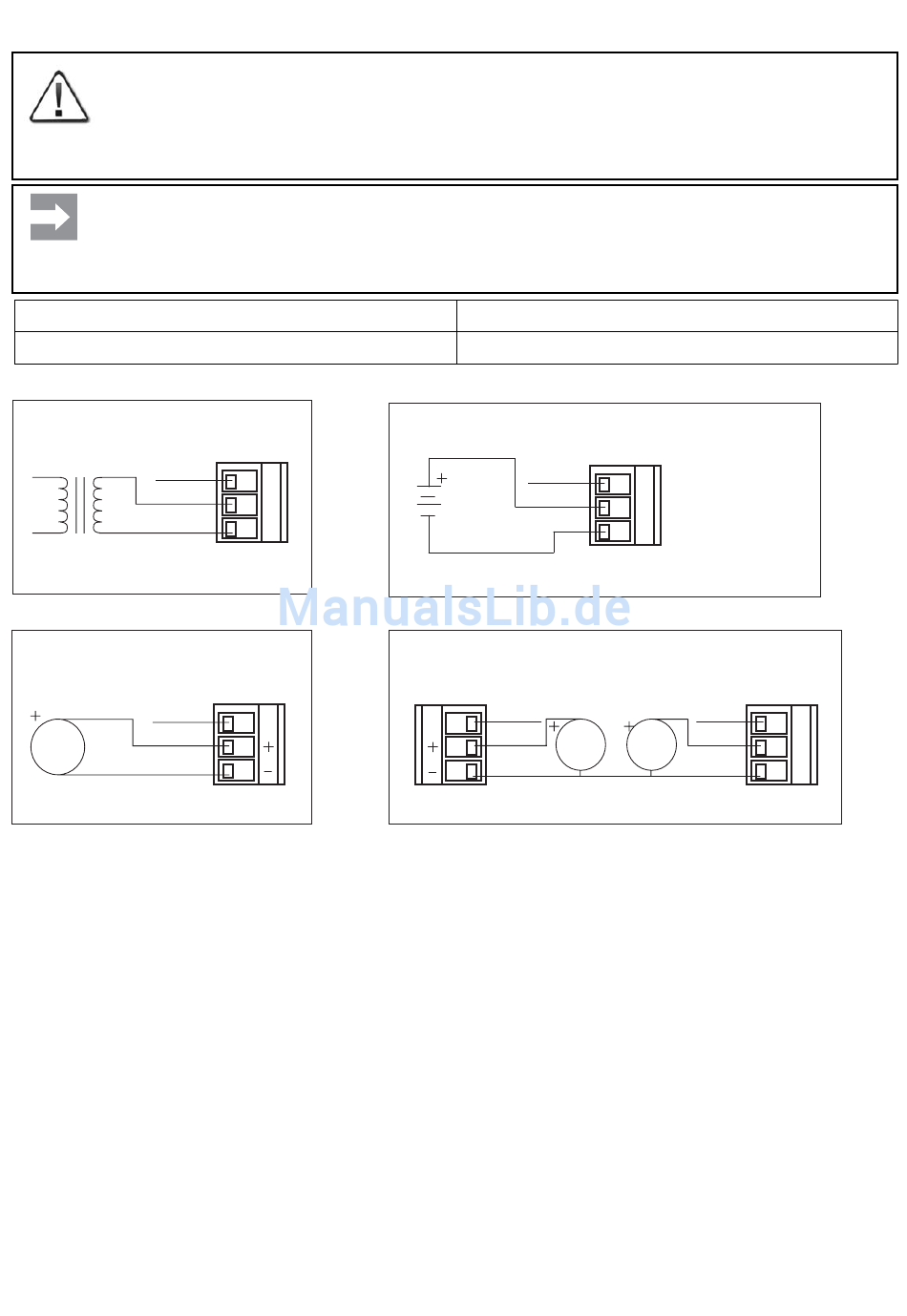

2 2 . . 6 6 P P o o w w e e r r s s u u p p p p l l y y
Supply voltage
Power (max)
AC SUPPLY
Shield
DC SUPPLY
Shield
C C a a u u t t i i o o n n
Insecure outputs. Operations on the IE-SWx-WAVE only realise by qualified em-
ployees. Use a power supply unit according to DIN EN 60742 (VDE 0551). Secure
all electrical outputs.
- The switch operates with Auto-MDIX technology, so straight-through or crossover
cables can be used to connect network interfaces or other network devices.
- The chassis connecting serves as an additionally ground.
4
5
~
6
~
1
2
3
10 ... 35 V DC / 10 ... 24 V AC
4 W / 6 VA
AC SUPPLY WITH BACKUP BATTERY
Shield
(secondary not grounded)
REDUNDANT DC SUPPLY
Shield
1
2
3
19
4
5
~
6
~
Shield
~
~
4
5
6
