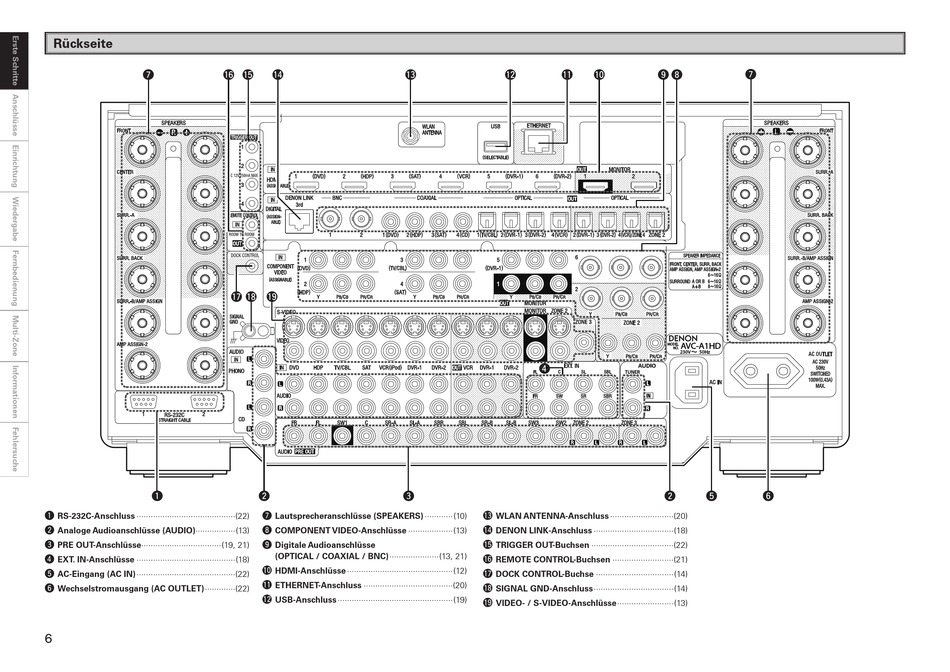

Rückseite
u Q6
q
q RS-232C-Anschluss ··········································(22)
w Analoge Audioanschlüsse (AUDIO)·················(13)
e PRE OUT-Anschlüsse ··································(19, 21)
r EXT. IN-Anschlüsse ··········································(18)
t AC-Eingang (AC IN) ··········································(22)
y Wechselstromausgang (AC OUTLET) ·············(22)

Q5 Q4 Q3
Q7 Q8 Q9
w e
u Lautsprecheranschlüsse (SPEAKERS) ············(10)
i COMPONENT VIDEO-Anschlüsse ···················(13)
o
Digitale Audioanschlüsse
(OPTICAL / COAXIAL / BNC) ·····················(13, 21)
Q0 HDMI-Anschlüsse ·············································(12)
Q1 ETHERNET-Anschluss ······································(20)
Q2 USB-Anschluss ·················································(19)
Q2 Q1 Q0 o
r
Q3 WLAN ANTENNA-Anschluss ···························(20)
Q4 DENON LINK-Anschluss ··································(18)
Q5 TRIGGER OUT-Buchsen ···································(22)
Q6 REMOTE CONTROL-Buchsen ··························(21)
Q7 DOCK CONTROL-Buchse ·································(14)
Q8 SIGNAL GND-Anschluss ··································(14)
Q9 VIDEO- / S-VIDEO-Anschlüsse ························(13)
u
i
w t y
