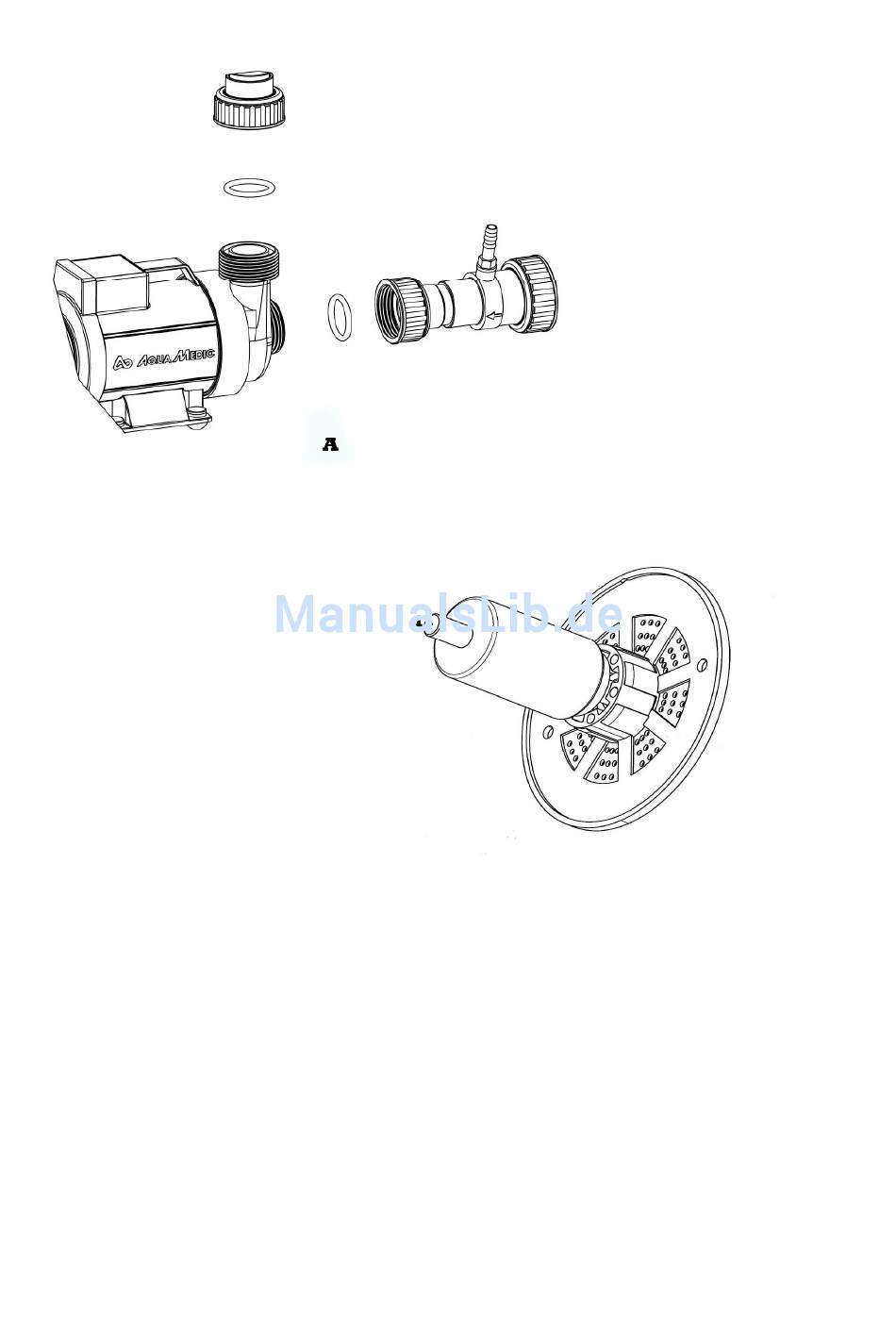

Fig. 2: Venturi pump
Fig. 3: Borehole (1) for water cooling
4. Installation
Check that the sealing rings for the unions are in place.
•
Slot the holding plate for the venturi pump to one side of the skimmer. Push the pump on to the
•
holding plate and connect the pump to its union.
The PVC air tube should be fed to the top of the grey PVC pipe which is located between the two
•
outlet pipes to supply the venturi pump with air. This air tube must not hang down. It
should only jut out 5 cm at the top.
Connect the bottom end of the tube to the air intake of the pump.
The water inlet is located at the opposite side of the outlet pipes. Attach the union and the hose
•
tail (22 x 20 mm).
We recommend a pump with a capacity of 2,000 to 4,000 litres/hour (500 – 1,000 gph) e. g.
•
Aqua Medic Eco Runner 3700 for the water supply.
Take care that the ball valve at the bottom is closed before you start to fill the skimmer! Ensure
•
the availability of a sufficient quantity of usable saltwater.
The single 6.0 takes approx. 50 litres of water, the type 5000 baby ECO approx. 25 litres.
Fit the rubber sealing ring for the bayonet socket of the reaction pipe. Push the bayonet socket
●
into its seating and turn it to the right as far as possible. Then fit the collection cup.
