Remote Controller

The powerful remote controller of the Phantom 4 Pro has a transmission range extending up to 4.3 mi (7 km)*. It
features physical buttons and dials to control exposure, camera tilt, photo capture and video recording.
Built into the remote controller is DJI LIGHTBRIDGE
a live HD view from the Phantom's camera. Dual frequency support makes the HD video downlink more stable. An
internal battery ensures a long battery life and ease of use.

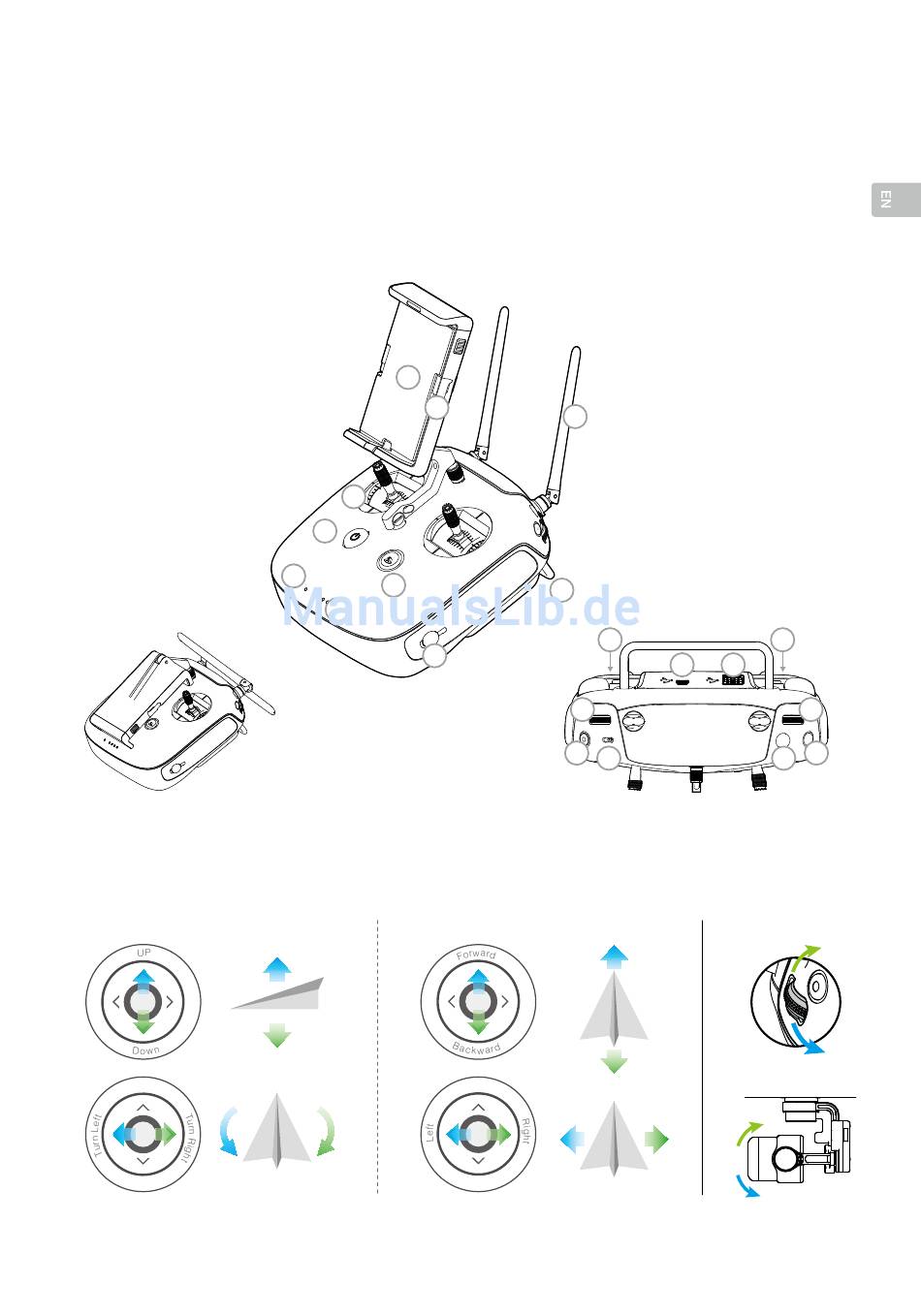

1. Power Button
2. Return-to-Home (RTH) Button
3. Control Sticks
4. Status LED
5. Battery Level LEDs
6. Power Port
7. Mobile Device Holder
8. Small Device Positioning Tabs
(for mobile phones)
9. Antennas
10. Handle Bar
Folded
The default flight control is known as Mode 2. The left stick controls the aircraft's altitude and heading, while the right
stick controls its forward, backward, left and right movements. The gimbal dial controls the camera's tilt.
Left Stick
* The remote controller is able to reach its maximum transmission distance (FCC) in a wide open area with no Electro-Magnetic
Interference, and at an altitude of about 400 feet (120 meters).
TM , which when paired with a compatible mobile device gives you
7
8
3
1
4
2
5
6
Right Stick
11. Gimbal Dial
12. Camera Settings Dial
13. Record Button
14. Flight Mode Switch
15. Shutter Button
16. Intelligent Flight Pause Button
17. C1 and C2 Buttons
9
(customizable)
18. USB Port
19. Micro USB Port
10
17
19 18
11
13
14
17
12
15 16
Gimbal Dial
