Seite 1

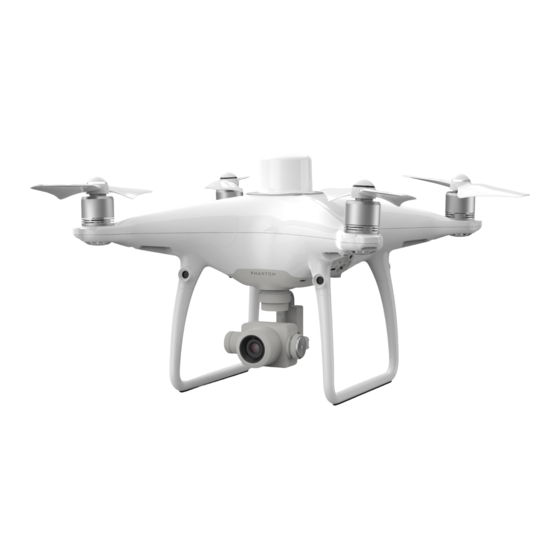

Quick Start Guide Kurzanleitung Guía de inicio rápido Guide de démarrage rapide Guida rapida Snelstartgids Guia de início rápido v1.2...
Seite 3
The camera features a 1-inch 20-megapixel CMOS sensor housed within a high stability gimbal. When it comes to mapping, the high-performance mechanical shutter eliminates rolling shutter distortion when DJI AGRAS aircraft. Users can also import photos to the DJI PC GS Pro application or third-party mapping...
Seite 4
The Phantom 4 RTK remote controller has a transmission range of up to 4.3 mi (7 km) * with controls for camera tilt and photo capture. DJI OcuSync is built into the remote controller, transmitting live HD imaging an operation for convenient project management. Users can also connect the remote controller to a PC to access DJI PC GS Pro for planning and executing operations.
Seite 5
The remote controller uses an easily removable interchangeable Intelligent Battery for long-term operation. Battery Release Buttoon...
Seite 7
Press the propeller down onto the mounting plate and rotate in the lock direction until secure. app indicates * or...
Seite 8
Photogrammetry and waypoint actions can be performed using both PC GS Pro software and the DJI GS RTK app. The following example includes instructions for photogrammetry operation using the DJI GS RTK app. Refer to PC GS Pro User Manual for details (if in use).
Seite 9
Weight (Battery & Propellers Included) 1391 g Max Service Ceiling Above Sea Level 19685 ft (6000 m) Max Ascent Speed Max Descent Speed 3 m/s Max Speed Max Flight Time Approx. 30 minutes Operating Temperature 32° to 104° F (0° to 40° C) Operating Frequency 2.400 GHz to 2.483 GHz (Europe, Japan, Korea) 5.725 GHz to 5.850 GHz (United States, China)
Seite 10
Mechanical Shutter 8 - 1/2000 s Electronic Shutter 8 - 1/8000 s Max Image Size 4864×3648 5472×3648 Video Recording Modes H.264 3840×2160 30p Photo JPEG Video Supported File Systems Supported SD Cards microSD, Max Capacity: 128 GB. Class 10 or UHS-1 rating required Operating Temperature 32°...
Seite 11
Gimbal zum Einsatz. Beim Vermessen mit hoher Geschwindigkeit verhindert der hochleistungsstarke für die Feldplanung mit einer DJI AGRAS verwendet werden. Anwender können darüber hinaus die erfassten Bilddaten in die Anwendung DJI PC GS Pro oder eine andere Kartierungs-Software importieren und in diesen präzise Karten für unterschiedliche Anwendungen erstellen.
Seite 12
Die Phantom 4 RTK Fernsteuerung bietet einen Übertragungsbereich von bis zu 7 km*. Mit ihr können auch Kameraneigung und Fotoaufnahmen gesteuert werden. DJI OcuSync ist in die Fernsteuerung integriert, d. h., ein Live-HD-Bild wird direkt von der Kamera übertragen. Berühren Sie einfach den Bildschirm in der „DJI GS RTK“-App, oder importieren Sie KML/KMZ-Dateien, um Vorgänge für bequemes Projektmanagement zu planen.
Seite 13
Die Fernsteuerung enthält eine herausnehmbare, austauschbare Intelligent Battery, die einen langfristigen Betrieb gewährleistet. Taste zum Lösen des Akkus...
Seite 15
Drücken Sie den Propeller auf die Befestigungsplatte, und drehen Sie ihn in die Verriegelungsrichtung , bis er fest sitzt. in der DJI GS RTK App entweder...
Seite 16
Fotogrammetrie- und Wegpunkt-Vorgänge können in der „PC GS Pro“-Software und der „DJI GS RTK“-App Berühren Sie im Tippen Sie auf der Einstellungen: Höhe, tippen, Hauptmenü der App Karte die Eckpunkte Geschwindigkeit, einen Namen und , wählen Sie an und verschieben...
Seite 17
Gewicht (mit Akku & Propellern) 1391 g Dienstgipfelhöhe über N.N. 6.000 m Max. Steiggeschwindigkeit 5 m/s (bei manueller Steuerung) Max. Sinkgeschwindigkeit 3 m/s Max. Fluggeschwindigkeit Max. Flugzeit etwa 30 Minuten Betriebstemperatur 0 bis 40 °C Betriebsfrequenz 2,400 GHz bis 2,483 GHz (Europa, Japan, Korea) 5,725 GHz bis 5,850 GHz (USA, China) EIRP 2,4 GHz...
Seite 19
La caméra dispose d'un capteur CMOS de 1 pouce qui capture des photos de 20 mégapixels, dans une nacelle haute précision et anti-tremblement. En matière de cartographie, appareil DJI AGRAS . Les utilisateurs peuvent également importer des photos vers le DJI PC GS Pro ou un logiciel...
Seite 20
de boutons et de molettes physiques pour contrôler l'inclinaison de la caméra et la capture de photos. Le système multi-appareil de la radiocommande peut être utilisé pour coordonner les opérations de cinq appareils maximum en Le schéma ci-dessous illustre la fonction commandée par chaque manche de contrôle, en utilisant le Mode 2 comme exemple.
Seite 21
La radiocommande utilise une Batterie Intelligente amovible et interchangeable qui facilite le fonctionnement dans la durée. Bouton de déverrouillage de la batterie...
Seite 23
Montez l'hélice sur la plaque de dans le sens de verrouillage la mention * ou...
Seite 24
PC GS Pro que de l'application DJI GS RTK. L'exemple ci-dessous comprend des instructions PC GS Pro pour plus de détails (si vous l'utilisez). Appuyez sur Appuyez sur la carte Réglages : altitude, Appuyez sur dans l'écran principal,...
Seite 25
Poids (batterie et hélices incluses) 1391 g Plafond pratique max. au-dessus du 6 000 m (19 685 pieds) niveau de la mer Vitesse ascensionnelle max. 5 m/s (commande manuelle) Vitesse de descente max. 3 m/s Vitesse max. 58 km/h (36 mph) (Mode A) Temps de vol max.
Seite 26
Objectif Champ de vision 84 ° 8,8 mm (équivalent 35 mm : 24 mm), f/2,8 - f/11, mise au point Plage ISO Vidéo : 100 - 3200 (Auto), 100 - 6400 (Manuel) Photo : 100 - 3200 (Auto), 100 - 12800 (Manuel) Obturateur mécanique Obturateur électronique Taille max.
Seite 27
20 megapixel alloggiato in un gimbal altamente stabile. Nell’eseguire una mappatura, l'otturatore meccanico ad alte l’uso di DJI AGRAS . Gli utenti possono inoltre importare le foto nell'applicazione DJI PC GS Pro o in un software di mappatura di terze parti per comporre mappe molto precise per svariati usi.
Seite 28
Il radiocomando Phantom 4 RTK ha un raggio di trasmissione massimo di 7 km* e dispone di comandi per controllare l'inclinazione della fotocamera e lo scatto delle immagini. Nel radiocomando è integrato DJI OcuSync, pratica dei progetti. Inoltre, gli utenti possono collegare il radiocomando a un computer e accedere a DJI PC GS coordinare il funzionamento di un massimo di cinque velivoli contemporaneamente, permettendo ai piloti di lavorare facilmente per consentire una rapida manutenzione.
Seite 29
Il dispositivo di controllo remoto utilizza una batteria intelligente, rimovibile Pulsante di rilascio della batteria...
Seite 31
Gli anelli neri sull'elica Gli anelli argentati vanno associati ai sull'elica vanno motori con i punti associati ai motori neri senza punti neri Prima del decollo, accertarsi che la barra di stato del velivolo nell'app DJI GS RTK indichi...
Seite 32
PC GS Pro e l'applicazione DJI GS RTK. Nel seguente esempio sono riportate le istruzioni per l’esecuzione di una fotogrammetria utilizzando l'applicazione DJI GS RTK. Per informazioni dettagliate, fare riferimento al manuale utente di PC GS Pro (se in uso).
Seite 33
Peso (batteria ed eliche incluse) 1391 g Quota massima di funzionamento 6.000 m (19.685 piedi) sopra il livello del mare 3 m/s Durata massima di volo Circa 30 minuti Temperatura di funzionamento Da 0 °C a 40 °C (da 32 °F a 104 °F) Frequenza di funzionamento Da 2,400 GHz a 2,483 GHz (Europa, Giappone, Corea) Da 5,725 GHz a 5,850 GHz (Stati Uniti, Cina)
Seite 34
Otturatore meccanico 8 - 1/2.000 s Otturatore elettronico 8 - 1/8.000 s Massima dimensione immagine 4864×3648 5472×3648 H.264 3840×2160 30p JPEG Video File system supportati Schede SD supportate Temperatura di funzionamento Da 0 °C a 40 °C (da 32 °F a 104 °F) Frequenza di funzionamento Da 2,400 GHz a 2,483 GHz (Europa, Giappone, Corea) Da 5,725 GHz a 5,850 GHz (Stati Uniti, Cina)
