Screw on the main and hover motors and run the cables to the electronics (see photos on the follo-

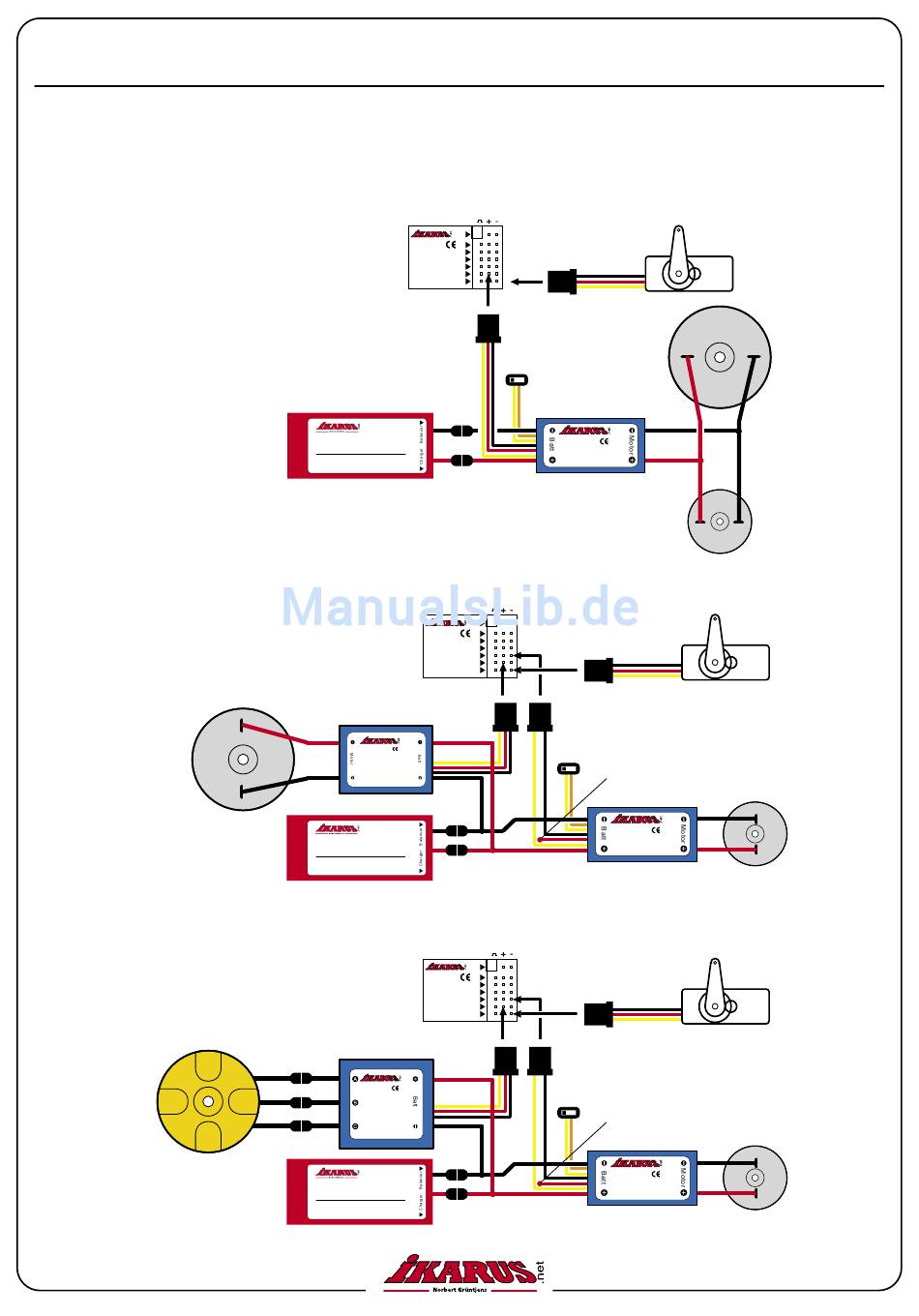

wing pages). Solder them to the controller or controllers (see schematics below).
1-Controller System
2-Controller System
2-Controller System with
Brushless Motor
Electronics (not included in the kit)
# 4023034
Lithium-Polymer
7,4 V/ 1200 mAh/ 2S1 P
Laden/ Charging/ Charge:
max. 1 A max. 8.4 V
Entladen/ Discharging/ Décharge: max. 12 C max. 5.6 V
# 4023032
Controller
30A
BEC 5V/ 2A DC 9 - 13 V
# 4023034
Lithium-Polymer
7,4 V/ 1200 mAh/ 2S1 P
Laden/ Charging/ Charge:
max. 1 A max. 8.4 V
Entladen/ Discharging/ Décharge: max. 12 C max. 5.6 V
# 4023033
Brushless
Controller
18A
BEC 5V/ 2A
DC 7.4 -14.8V
# 4023034
Lithium-Polymer
7,4 V/ 1200 mAh/ 2S1 P
Laden/ Charging/ Charge:
max. 1 A max. 8.4 V
Entladen/ Discharging/ Décharge: max. 12 C max. 5.6 V
Batt
6
# 4023035
5
6-Channel
4
Receiver
3
2
40 MHz
1
# 4023031
Controller 15A
BEC 5V/ 2A DC 5 - 9 V
Batt
# 4023035
6
5
6-Channel
4
Receiver
3
2
40 MHz
1
Batt
# 4023035
6
5
6-Channel
4
Receiver
3
2
40 MHz
1
15
Disconnect
red lead
# 4023031
Controller 15A
BEC 5V/ 2A DC 5 - 9 V
Disconnect
red lead
# 4023031
Controller 15A
BEC 5V/ 2A DC 5 - 9 V
