2 English
CONTENTS
1. Introduction ......................................................................................................................................................... 3
2. In general ........................................................................................................................................................... 3
3.

Operation ............................................................................................................................................................ 3

4. Frost .................................................................................................................................................................... 3
5. Assembly Instruction .......................................................................................................................................... 3
6. Performance ........................................................................................................................................................ 4
7. Warnings on Battery ........................................................................................................................................... 4
8. Battery replacement ........................................................................................................................................... 5
9. Security tips ......................................................................................................................................................... 5
10. Servicing ............................................................................................................................................................. 5
11. Guarantee regulations ........................................................................................................................................ 6
12. Recognising and repairing of mistakes .............................................................................................................. 6
13. Notes on Product Liability ................................................................................................................................... 6
14. Notes on Disposal .............................................................................................................................................. 6
15. EU Declaration of Conformity ............................................................................................................................. 6
16. Technical Data .................................................................................................................................................. 12
SAFETy INSTRUCTION AND WARNINGS
Please read the user manual before using
the pump
1. INTRODUCTION
We would like to congratulate you on the purchase of our pump. We appreciate your trust. That's why functional security
and operational safety stands on first place for us.
To prevent damage to persons or property, you should read this user manual carefully. Please observe
all safety precautions and instructions for proper use of the pump. Failure to follow the instructions
and safety precautions can result in injury or property damage. Please keep this manual with the
instructions and safety instructions carefully in order to at any time you can restore them.
2. IN GENERAL
Solar Pond Pump Kits are high-quality fountain pump systems for energy use in outdoor or indoor use.
The perfect eye-catcher in your garden or seed tray. Through the use of high-quality solar technology
with Li-Ion batteries are the Solar Pond Pump Kits mains-independent and anywhere to use immediately.
2.1 It's recommended NOT to conduct yourself technical modifications. First, it is not certain whether these
changes are technically correct and, secondly, because no guarantee can be granted.
2.2 Transport damages are immediately to be reported to the package distributor and to us in written
form. Failure to give timely notice to the shipping company, and are therefore rejected your claims from
the transport company, so we can not accept these claims as well. In your legal obligation to cooperate to
minimize damage, we point out expressly herewith.
3. OPERATION
l Unpack all components carefully. You should have received the following parts:
1pc Upper column / 1pc Upper reservoir / 1pc Lower column / 1pc Lower reservoir / 1pc Base / 1pc pump /
1pc LED light / 1pc Solar panel / 1pc Solar panel bracket / 1pc Extension tube / 1pc Ground spike
To protect the product, place all parts on a soft surface before assembly.
l Remove the protective film from the solar panel (if any).
l Position the solar panel so that it receives direct sunlight. The fountain can not work if the solar panel is shaded.
Adjust the solar panel angle to maximise the amount of solar energy collected. Connect the pump on the panel
(see item 5). Check whether the flow is fully open (or else promoted little or no water).
Warning sign
4. FROST
Frost can cause damage to the pump. In freezing the pump, pipes and water tank must be
emptied, rinsed with clean water and stored dry.

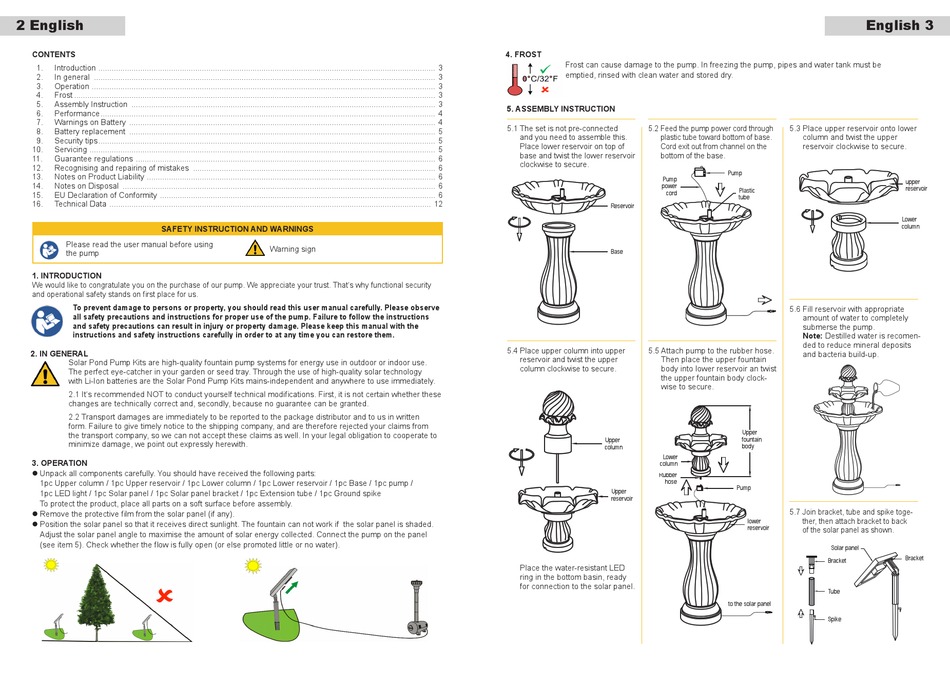

5. ASSEmBLy INSTRUCTION
5.1 The set is not pre-connected 5.2 Feed the pump power cord through
and you need to assemble this. plastic tube toward bottom of base.
Place lower reservoir on top of Cord exit out from channel on the
base and twist the lower reservoir bottom of the base.
clockwise to secure.
Pump
power
cord
Reservoir
Base
5.4 Place upper column into upper 5.5 Attach pump to the rubber hose.
reservoir and twist the upper Then place the upper fountain
column clockwise to secure. body into lower reservoir an twist
the upper fountain body clock-
wise to secure.
Upper
column
Lower
column
Rubber
hose
Upper
reservoir
Place the water-resistant LED
ring in the bottom basin, ready
for connection to the solar panel.
English 3
5.3 Place upper reservoir onto lower
column and twist the upper
reservoir clockwise to secure.
Pump
upper
reservoir
Plastic
tube
Lower
column
5.6 Fill reservoir with appropriate
amount of water to completely
submerse the pump.
Note: Destilled water is recomen-
ded to reduce mineral deposits
and bacteria build-up.
Upper
fountain
body
Pump
5.7 Join bracket, tube and spike toge-
ther, then attach bracket to back
lower
reservoir
of the solar panel as shown.
Solar panel
Bracket
Bracket
Tube
to the solar panel
Spike
