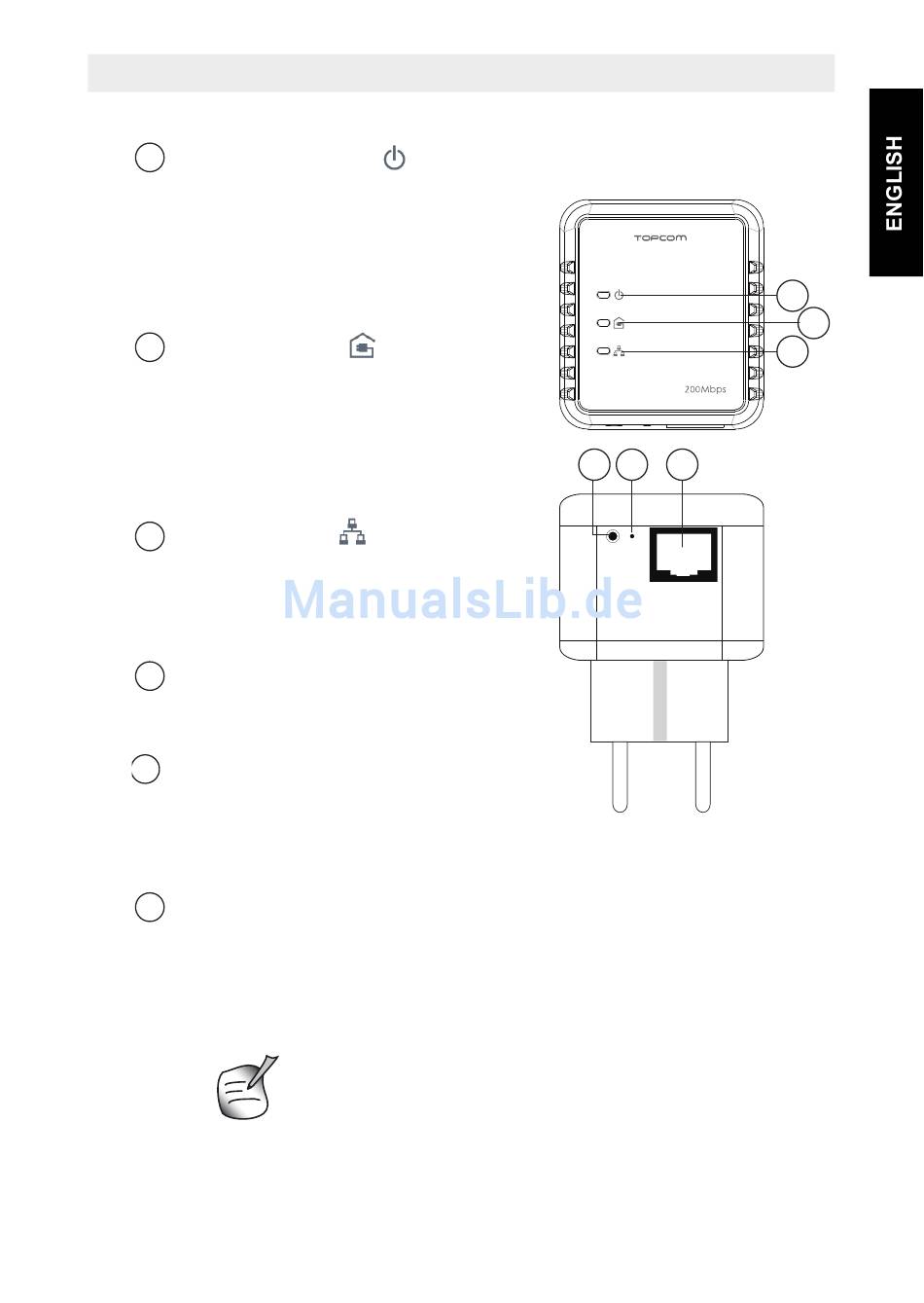

4 Description
Power supply LED
1
– On: normal operation
– Flashing (0.5 seconds on/0.5 seconds
off): in connection mode.
– Slow flashing (4 seconds on/11 seconds
off): in stand-by mode (energy saving
mode)
Powerline LED
2
Shows the quality of the connection
with other Powerline plugs.
– Green: excellent quality.
– Orange: good quality.
– Red: poor quality.
The LED flashes during data transfer.
Ethernet LED:
3
– On: successful connection with another
device through an Ethernet cable.
The LED flashes when data is being
transferred.
Ethernet connection (RJ45):
4
For connection to an external device
through an Ethernet cable.
Full reset button:
5
– Push in the reset button, with a paper
clip for example, for 3 seconds to reset
the Powerline. Following reset, the
standard password "HomePlugAV" will be loaded.
Reset/simple connect button
6
– Push down for two seconds to start the connection sequence.
– Push down for 12 seconds to restore the factory settings. The network
password will be erased.
The Powerline plug switches to stand-by
mode (energy saving function) when it is
not connected to a device through an
Ethernet cable for 15 minutes.
PowerLan 6420 mini
Powerlan 6420 mini
6 5 4
1
2
3
7
