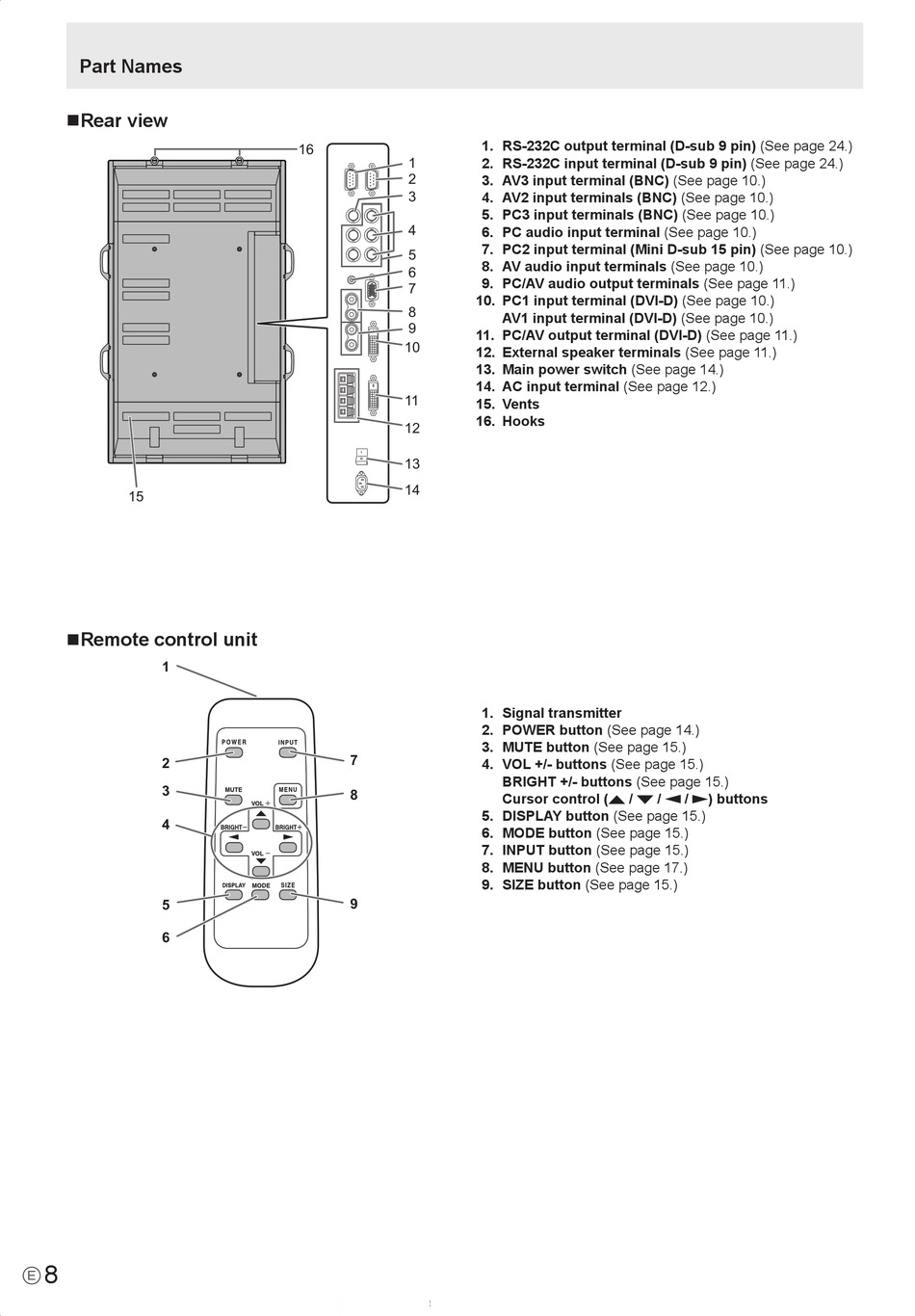

Part Names
Rear view
15
Remote control unit
1
2
3
4
5
6
8 8
E E
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
7
8
9
1. RS-232C output terminal (D-sub 9 pin) (See page 24.)
2. RS-232C input terminal (D-sub 9 pin) (See page 24.)
3. AV3 input terminal (BNC) (See page 10.)
4. AV2 input terminals (BNC) (See page 10.)
5. PC3 input terminals (BNC) (See page 10.)
6. PC audio input terminal (See page 10.)
7. PC2 input terminal (Mini D-sub 15 pin) (See page 10.)
8. AV audio input terminals (See page 10.)
9. PC/AV audio output terminals (See page 11.)
10. PC1 input terminal (DVI-D) (See page 10.)
AV1 input terminal (DVI-D) (See page 10.)
11. PC/AV output terminal (DVI-D) (See page 11.)
12. External speaker terminals (See page 11.)
13. Main power switch (See page 14.)
14. AC input terminal (See page 12.)
15. Vents
16. Hooks
1. Signal transmitter
2. POWER button (See page 14.)
3. MUTE button (See page 15.)
4. VOL +/- buttons (See page 15.)
BRIGHT +/- buttons (See page 15.)
Cursor control ( /
5. DISPLAY button (See page 15.)
6. MODE button (See page 15.)
7. INPUT button (See page 15.)
8. MENU button (See page 17.)
9. SIZE button (See page 15.)
/ / ) buttons
