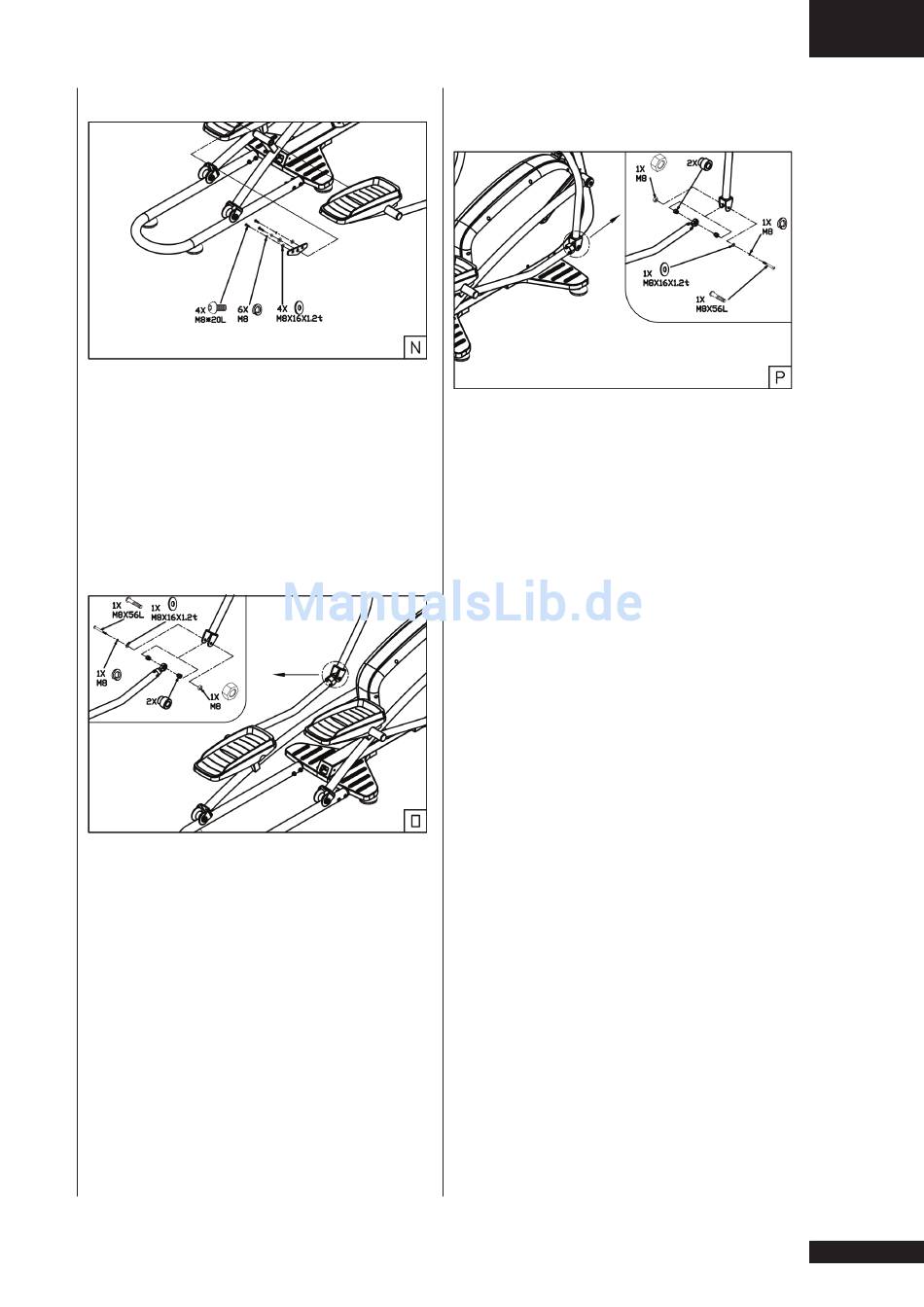

Assembly step N
• Connect pedal right outer pedal post
with the right pedal tube as shown in
picture.
Remark:
First put all screws/ bolts in correct place
before tightening them fully.
Assembly step O
• Fix left outer pedal post to left lower
swivel handle bar shown in picture.
Owner's manual • Pure 4.1
Assembly step P
• Fix right outer pedal post to right
lower swivel handle bar shown in
picture.
Assembly step Q
• The power cord input can be found
on the front side of the trainer
GB
9
