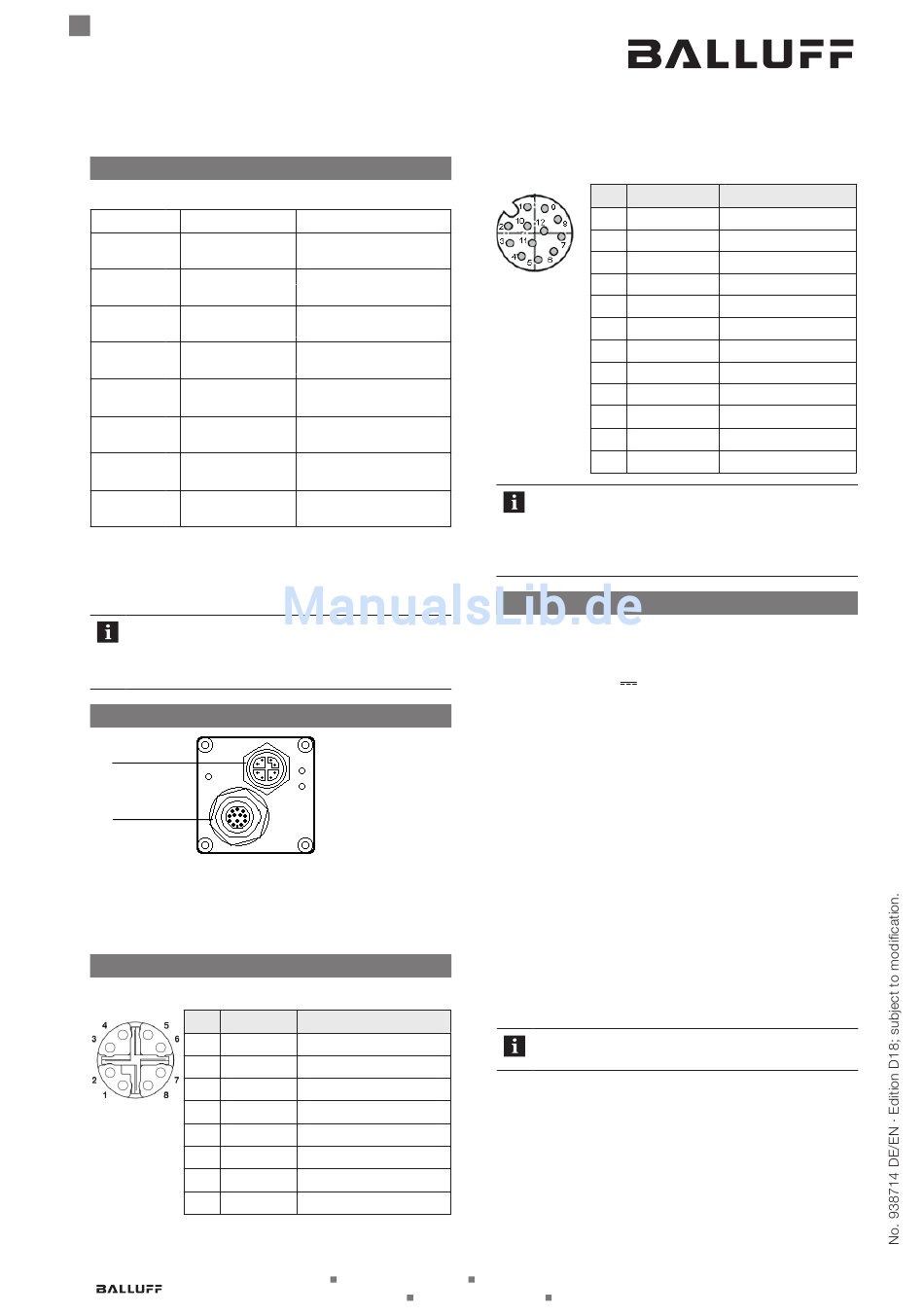

Balluff Camera
Short Guide
Introduction
This short guide applies to the following variants:
Ordering code Product name
BVS002H BVS CA-M1456Z00
-31-000
BVS002J BVS CA-C1456Z00
-31-000
BVS002K BVS CA-M2064Z00
-31-000
BVS002L BVS CA-C2064Z00
-31-000
BVS002M BVS CA-M2464Z00
-31-000
BVS002N BVS CA-C2464Z00
-31-000
BVS002P BVS CA-M4112Z00
-31-000
BVS002R BVS CA-C4112Z00
-31-000
This short guide applies only to the operation of the
Balluff Camera up to opening the BVS Cockpit con-
figuration interface. Detailed operating instructions are
located on the Balluff website under www.balluff.com
Note
Safe operation requires that the operating instruct-
ions for the Balluff Camera and the warning and safe-
ty instructions it contains must be read and observed.
Connections
1
2
Connection Function
Power I/O
Voltage supply of the Balluff Camera including four
digital inputs and four digital outputs.
LAN
Integrates the Balluff Camera in a local network.
Pin assigment
LAN (Gigabit Ethernet) Socket M12, 8-pin, X-coded
Pin Signal
1 BI_DA +
2 BI_DA –
3 BI_DB +
4 BI_DB –
5 BI_DD +
6 BI_DD –
7 BI_DC –
8 BI_DC +
Balluff GmbH
Description
Balluff Camera, monochr.
1.6 MPix, Gigabit Ethernet
Balluff Camera, color
1.6 MPix, Gigabit Ethernet
Balluff Camera, monochr.
3.2 MPix, Gigabit Ethernet
Balluff Camera, color
3.2 MPix, Gigabit Ethernet
Balluff Camera, monochr.
5.1 MPix, Gigabit Ethernet
Balluff Camera, color
5.1 MPix, Gigabit Ethernet
Balluff Camera, monochr.
12.1 MPix, Gigabit Ethernet
Balluff Camera, color
12.1 MPix, Gigabit Ethernet
1 LAN
2
Power I/O
Function
Bidirectional data, Pair A +
Bidirectional data, Pair A -
Bidirectional data, Pair B +
Bidirectional data, Pair B -
Bidirectional data, Pair D +
Bidirectional data, Pair D -
Bidirectional data, Pair C -
Bidirectional data, Pair C +
Schurwaldstrasse 9
Tel. +49 7158 173-0 Fax +49 7158 5010
Power I/O Plug M12, 12-pin
Pin Signal
1 PWR_IN+
2 PWR_IN-/GND Ground
3 DigOut3
4 Opto DigIn0
5 DigOut2
6 DigOut0
7
Opto GND
8
Opto DigIn2
9
Opto DigIn3
+24V_HSD
10
11 Opto DigIn1
DigOut1
12
Note
The digital inputs correspond to the guideline con-
cerning inputs, EN 61131-2, Type 3. The maximum
load on any outputs is 700 mA. The load or supply
must be limited accordingly.
Startup
Besides the Balluff Camera the following is required:
Latest Balluff Camera driver
–
– Power I/O cable
– Power supply 11V - 25V
– LAN cable Gigabit Ethernet
Requirements: at least category 5e acc. to EIA/TIA-568.
– PC with web browser
Google Chrome version 24.0, Mozilla Firefox version 15.0,
Microsoft Internet Explorer version 10 and higher
Step 1: Installing driver
►
Download the latest driver (Windows) from the Balluff website.
Step 2: Establishing a network connection
►
Connect the Balluff Camera via the LAN port.
In general, the network configuration of your PC is set to
Obtain IP address automatically. For the firewall setting, port
80 should be enabled.
The following network structures are possible:
– Direct connection via LAN cable:
IP addresses are set automatically.
– Connection in the same subnet of a local network with
DHCP: IP addresses are set automatically.
Note
The connection may take some time.
Step 3: Switching on the Balluff Camera
► Now connect the power supply at the Power I/O with the
power supply. The start up will take approx. 30 s.
Step 4: Opening a GigE Vision compliant software
The camera can be configured, for example, via the BVS
Cockpit. Start BVS Cockpit and select the "Set up camera"
tool or choose the "Digital In/Outputs" menu item in the
system settings to set the digital inputs and outputs.
