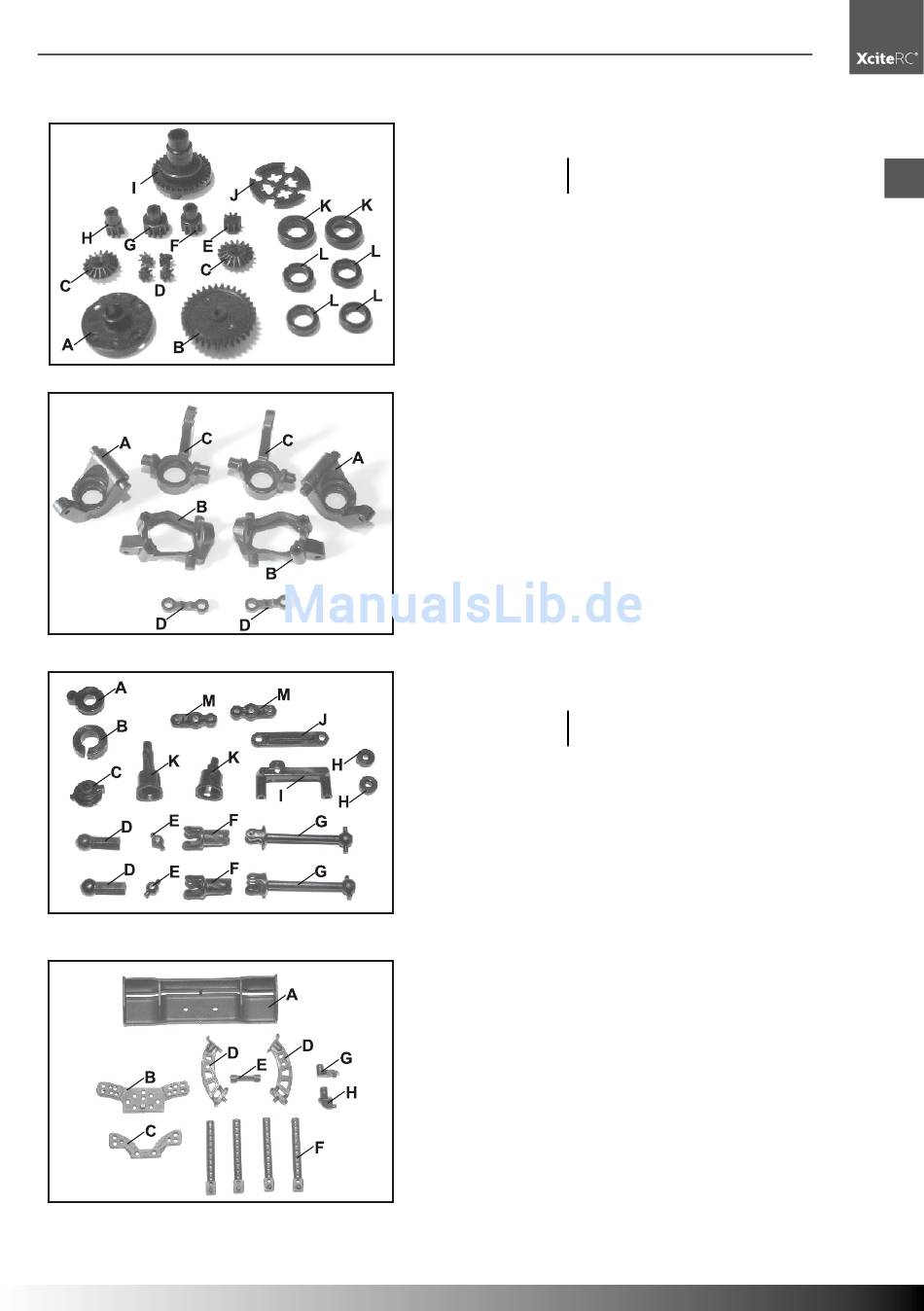

Spare Parts Bag Content
The images may vary from the actual parts.
twenty4 series
30600017
A: Diff. Housing A
K: Diff. Bushing (6x10x3 mm)
B: Spur Gear (34 T)
L: Wheel Shaft Bushing (5x8x3 mm)
C: Diff. Large Bevel Gear (18 T)
D: Diff. Small Bevel Gear (8 T)
E: Drive Pinion Gear (8 T)
F: Motor Pinion (10 T)
G: Motor Pinion (12 T)
H: Motor Pinion (8 T)
I: Diff. Housing B
J: Diff. Small Bevel Gear Mount
30600018
A: Rear Uprights (Left/Right)
B: Front Uprights (Left/Right)
C: Front Steering Hubs (Left/Right)
D: Front Steering Hub Fasteners
30600016
A: Servo Saver Part 1
B: Servo Saver Part 2
C: Servo Saver Part 3
D: Steering Linkage Set End
E: Drive Joint Ball
F: Wheel Shaft
G: Drive Shaft
H: Main Drive Bushing (2x6x2.5 mm)
I: Steering Bushing Unit
J: Steering Ackerman Plate
30600019
A: Rear Wing (B24 / T24 only)
B: Rear Shock Tower
C: Front Shock Tower
D: Wing Stay (B24 / T24 only)
E: Wing Post (B24 / T24 only)
F: Body Posts (T24 / MT24 / DB24 only)
G: Front Body Post (B24 only)
H: Rear Body Post (B24 only)
K: Diff. Outdrive (Long + short)
M: Steering Turning Arm
