Rack models

Removal of the battery module
This operation may be carried out with the UPS supplying power to the load.
A R
L S
o n
P U
lu ti
E v o
0 0
1 5
C
B
A
D

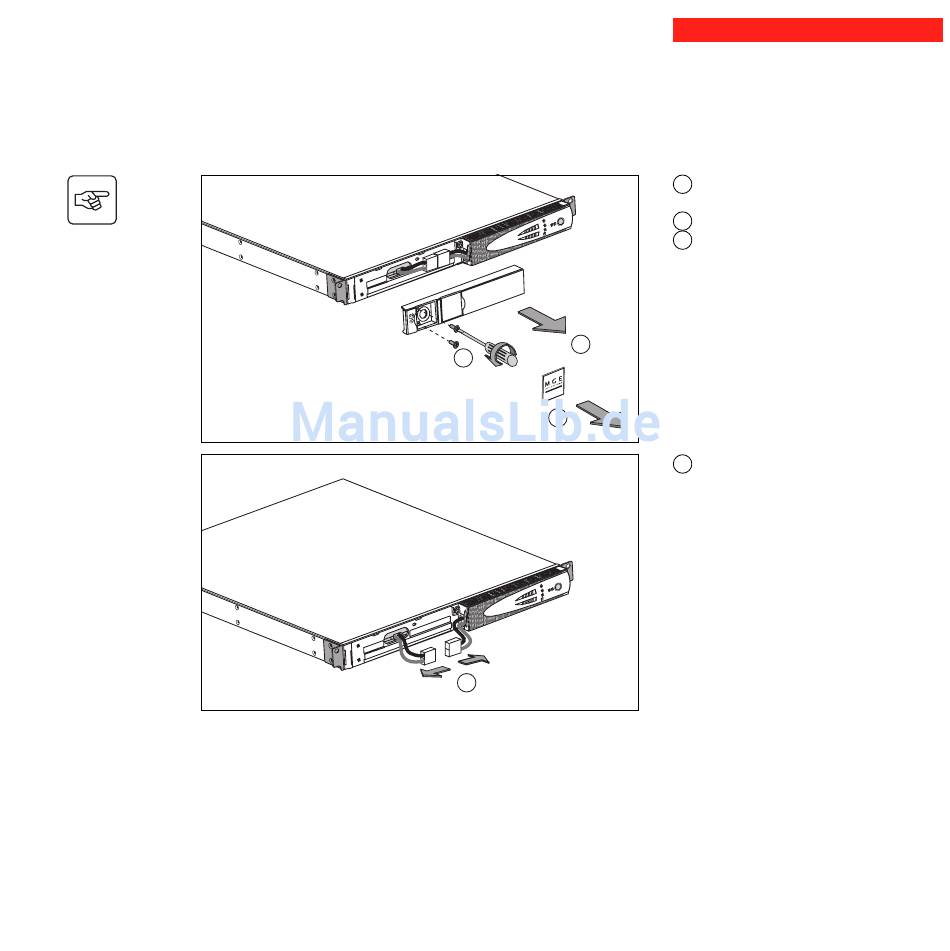

4. Maintenance
A - Unclip the small plate with the MGE
logo on the front panel of the UPS.
B - Remove the two screws.
C - Remove the left-hand side of the front
panel by pulling it forward.
D - Disconnect the battery module by
pulling apart the connectors (never pull on
the cables).
34007117EN/AB
- Page 25
