2.6 Installation of the communications-card option

It is not necessary to shut down the UPS to install the communications card.
This operation must be carried out by qualified personnel.
4

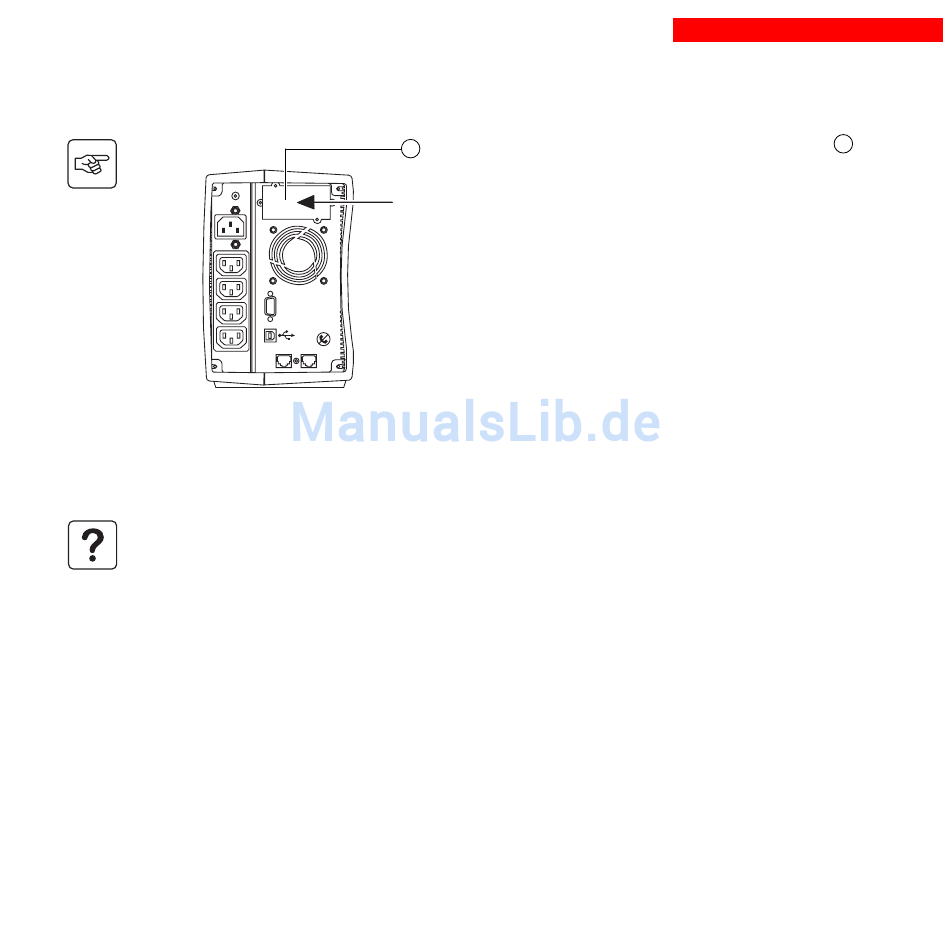

Restricted-access slot for
the communications card
RS232
DATA LINE PROTECTION
IN OUT
2. Installation
1 - Remove the slot cover 4 secured by
two screws.
2 - Insert the card in the slot.
3 - Secure the cover with the two screws.
