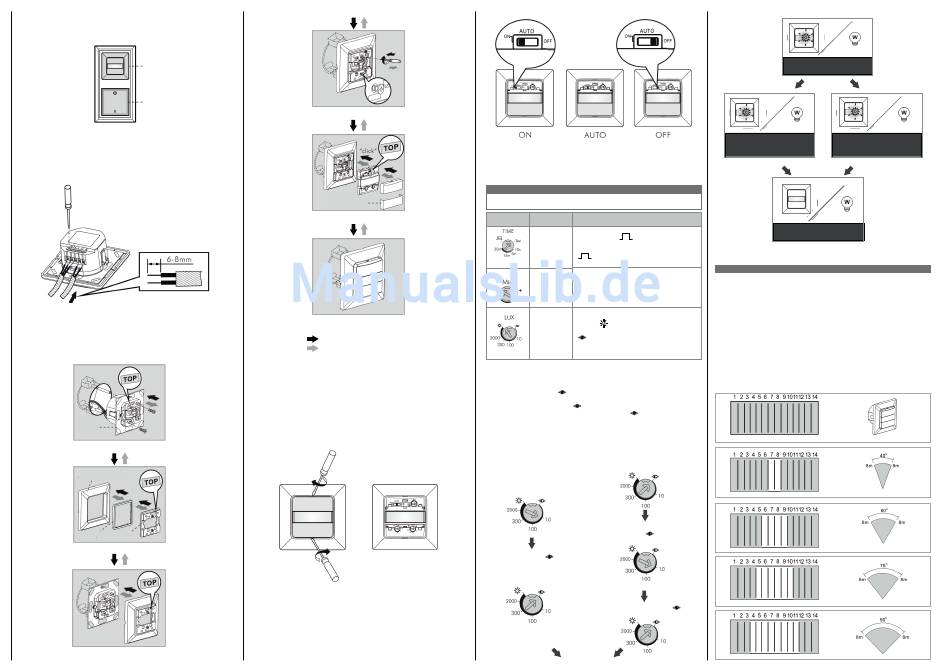

3.4 Installation procedure
The Mc Guard can be wall flush mounted with European standard junction
box. The existing switch with 2-gang or more can be replaced by Mc Guard.
(See FIG. 8)
Mc Guard Detector
Switch
FIG. 8
3.4.1 Flush mount with European standard junction box
3.4.1.1 Disassemble the plastic frame and front cover from the detector.
3.4.1.2 Unscrew the terminal and refer to the wiring diagram (See FIG.5 -
FIG.7) to insert the power cables into the corresponding terminal blocks.
Please be noted to strip off 6 - 8mm of cable sheathing by tool (See FIG.9).
FIG. 9
3.4.1.3 Screw the terminal and make sure the wires are securely fixed.
3.4.1.4 Put the wired detector into the European junction box
(See FIG.10-A).
3.4.1.5 The adapter is applied on the top of the decorative frame (See
FIG.10-B). Then the press cover screws lock in inner cover . At last,
placing the surface cover to finish the installation (See FIG.10-C -
FIG.10-E)
inner-
cover
FIG 10-A
decorative frame
adapter
press cover
FIG 10-B
FIG 10-C
FIG 10-D
surface cover
FIG 10-E
FIG 10-F
Installation procedure
Dismantle procedure
3.5 Dismantle the plastic frame
To dismantle a fixed Mc Guard, please refer to FIG.10-A to FIG.10-C &
FIG.11 and use the proper screwdriver to take off the covers.
4
OPERATION
4.1 Open the top cover
4.1.1 Open the covers at upper and down the lens, you can see the slide
switch and knops. (See Fig 11 and 12) Adjust them as you desired.
FIG. 11 FIG 12
4.1.2 Slide switch function (See FIG. 13)
AUTO: Set slide switch at the middle, detector is in AUTO mode.
ON : Push the slide switch leftward to ON position,ON mode is activated,
load will continue ON for 4hrs, LED flashes on 1sec and off 5sec,
then return to AUTO mode automatically. Even slide switch is set to
ON, detector enters into AUTO mode once the power is re-supplied
again.
OFF : Push the slide switch rightward to OFF position, detector is in OFF
mode, lighting keeps OFF permanently.
FIG. 13
4.1.3 After finishing the settings, put the covers back.
4.1 Time, Mic & Lux knob setting
NOTE
Make sure the slide switch is on the position of AUTO while adjusting the
knob.
Knob Function Knob settings
Time : Adjustable from 10 Sek. to 30 Min,
Set delay
1s
Test and
off time for
Test : Walk test operation (2sec on / 2sec off).
lighting
1s : Short impulse for staircase timer switch
control (1sec on / 9sec off).
Acoustic
„+" : Enable acoustic sensor with max. sensitivity.
sensor
function
"-" : Disable acoustic sensor function.
adjustment
Set the Range: Adjustable from approx. 10Lux) to
light value ∞
„ " ( ).
for
switching
learn: The actual ambient light level
on light
(10 - 2000Lux) can be read in.
4.3 Lux learning function with knob
Learning procedure:
4.2.1 Adjust the knob to " " when the ambient light level matches with the
desired value (See FIG.14-A)
4.2.2 When the knob is set to " " originally, it should be adjusted to other
position more than 1 sec, then goes back to " " (See FIG.14-B.)
4.2.3 Then the load is off. LED starts to flash slowly indicating entering into
learning mode. Learning will be completed within 25 seconds.
Afterwards, the LED and load will keep on 5sec or LED flash quickly
for 5sec and load is off to confirm successful learning (See FIG. 14-C)
4.2.4 After learning procedure, the detector returns to AUTO mode with LED
and load being off..
Adjust knob to other
position from "
Adjust knob to " "
from other position
1sec after, goes back to "
FIG. 14-A
FIG. 14-B
LED flashes slowly for 25sec
& Load is off
LED and load keep on 5sec LED flashes quickly for 5sec &
Load is off (the actual light
the actual light level range
level range is out of 10 - 2000Lux)
is 10 - 2000Lux)
LED and load off
Detector switches to AUTO mode
(FIG. 14-C)
NOTE
- When the actual light level is out of the range 10 - 2000Lux, detector will
learn 25sec, then the red LED flashes quickly for 5sec. When the actual
light level is below 10Lux, Lux value is set to 10Lux, or is above 2000Lux,
Lux value is setto 2000Lux.
- Installer should be away from the detector to avoid affecting the luminous
flux that reaches the detector when learning Lux value.
4.4 Usage of lens shield label
The attached lens shield label is used to reduce the detection range. With
the different numbers of labels used, the different coverage can be
obtained. Fox example, to install the detector at cthe height of 1.2m, the
detection range refer to FIG. 15.
„
„
