EN
handlebar clamp support (Ref. D) (Fig. 15 and 16),
and slide the tip of the strap (Ref. B) through the
notch in the anti-slip rubber (Ref. G) (Fig. 17).

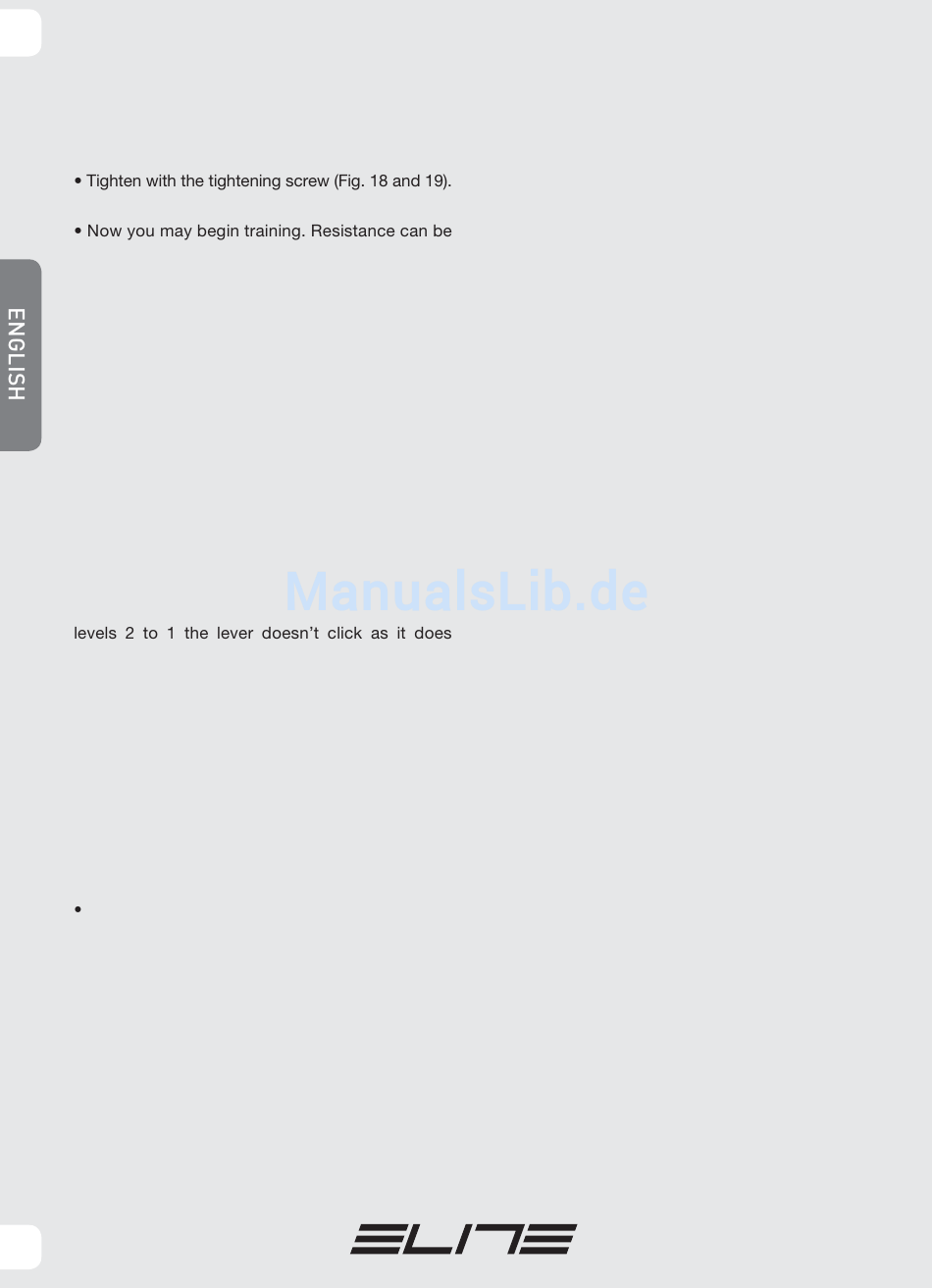

adjusted from a minimum (value 1) to a maximum
(value 8).
!!WARNING!!
The selected resistance level is visible on the
command lever.
!!WARNING!!
At the minimum level (1), when trying to decrease
resistance, the command lever (A) will move
without changing resistance.
At the maximum level (8), when trying to increase
resistance, the command lever (A) will move
without changing resistance.
Note: When switching from levels 7 to 8 and from
between other levels. The unit is functioning nor-
mally and this is not an anomaly.
!!WARNING!!
When tightening the command lever pay attention
to the adjusting cable which must not contact the
moving parts of the bicycle.
BICYCLE REMOVAL
Remove the remote regulation shifter from the
handlebar.
4
