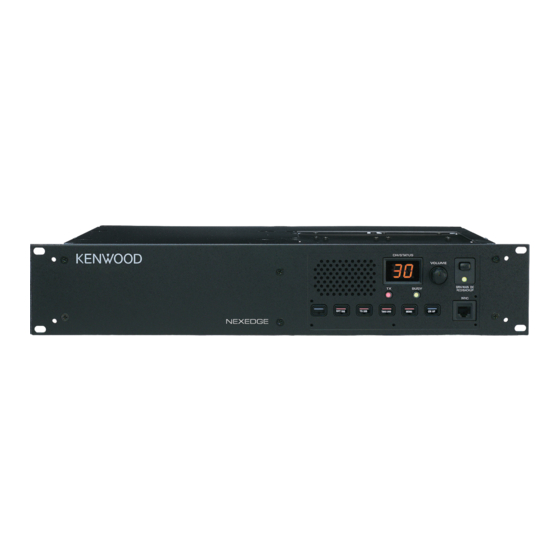

VHF DIGITAL BASE-REPEATER/ UHF DIGITAL BASE-REPEATER
NXR-710/ NXR-810
INSTRUCTION MANUAL
THANK YOU!
We are grateful you purchased this Kenwood repeater. We
believe this easy-to-program repeater will be highly effective in
your communications system, and will keep personnel operating
at peak efficiency.
PRECAUTIONS
• Do not expose the unit to rain or moisture; to prevent fire or
electric shock.
• Do not open the unit under any circumstances; to avoid risk
of electric shock.
• Do not expose the unit to long periods of direct sunlight, nor
place it close to heating appliances.
• Do not place the unit in excessively dusty and/or humid
areas, nor on unstable surfaces.
• If you detect an abnormal odor or smoke coming from the
unit, disconnect the power from the unit immediately. Contact
your Kenwood service center or dealer.
NOTICES TO THE USER
◆ Government law prohibits the operation of unlicensed radio
transmitters within the territories under government control.
◆ Illegal operation is punishable by fine and/or imprisonment.
◆ Refer service to qualified technicians only.
◆ This repeater is intended for use as a fixed base station with
the antenna located outdoors on the rooftop or on an antenna
tower.
◆ This repeater is designed for a 13.2 V DC power source!
Never use a 24 V DC or higher source to power the repeater.
◆ Use only the supplied DC cord.
◆ Do not remove the ferrite core attached to the DC cord. Doing
so may cause interference with radio communications.
Information on Disposal of Old Electrical and Electronic Equipment and
Batteries (applicable for EU countries that have adopted separate waste
collection systems)
Products and batteries with the symbol (crossed-out wheeled bin) cannot
be disposed as household waste.
Old electrical and electronic equipment and batteries should be recycled at
a facility capable of handling these items and their waste byproducts.
Contact your local authority for details in locating a recycle facility nearest
to you.
Proper recycling and waste disposal will help conserve resources whilst
preventing detrimental effects on our health and the environment.
Notice: The sign "Pb" below the symbol for batteries indicates that this
battery contains lead.
NOTIFICATION
This equipment complies with the essential requirements of Directive
1999/5/EC.
The use of the warning symbol
restrictions of use in certain countries.
This equipment requires a licence and is intended for use in the
countries as below.
AT BE DK
IE IT LI
SE CH GB
LT MT PL
means the equipment is subject to
FI FR DE GR
LU NL NO PT
CY CZ EE HU
SK SI BG RO
The AMBE+2 TM voice coding Technology embodied in this product
is protected by intellectual property rights including patent rights,
copyrights and trade secrets of Digital Voice Systems, Inc. This voice
coding Technology is licensed solely for use within this Communications
Equipment. The user of this Technology is explicitly prohibited from
attempting to extract, remove, decompile, reverse engineer, or
disassemble the Object Code, or in any other way convert the Object
Code into a human-readable form. U.S. Patent Nos. #5,870,405,
#5,826,222, #5,754,974, #5,701,390, #5,715,365, #5,649,050,
#5,630,011, #5,581,656, #5,517,511, #5,491,772, #5,247,579, #5,226,084
and #5,195,166.
Firmware Copyrights
The title to and ownership of copyrights for firmware embedded in
Kenwood product memories are reserved for Kenwood Corporation.
UNPACKING AND CHECKING EQUIPMENT
Note: The following unpacking information is for use by your Kenwood
dealer, an authorized Kenwood service center, or the factory.
Carefully unpack the repeater. We recommend that you identify
the items listed in the following table before discarding the
packing material. If any items are missing or have been damaged
during shipment, file a claim with the carrier immediately.
Hardware fixture
Front glass
Name plates
Cushion
Cushion
Foot
Foot
Grommet
Handle
Screws
Screws
DC cord
Lead wire with connector (15 pin)
Fuse
Instruction Manual
INSTALLATION
To install the handles onto the front panel of the repeater, align
the handles with the holes on the front panel, then secure the
handles using the supplied screws.
Please consult your dealer for installing the repeater and
antenna.
MICROPHONE
Connect an optional KMC-30, KMC-35, KMC-27A, KMC-27B,
or KMC-9C Kenwood microphone to the MIC jack on the front
panel.
IS
ES
LV
ISO3166

© B62-2200-00 (E)
09 08 07 06 05 04 03 02 01 00
Item Part Number
J21-8559-XX
B10-2635-XX
B11-1259-XX
G13-1801-XX
G13-1802-XX
J02-0475-XX
J02-0492-XX
J59-0302-XX
K01-0418-XX
N30-4006-XX
N35-3006-XX
E30-3427-XX
E31-3228-XX
F05-1537-XX
B62-2200-XX
Quantity
1
1
