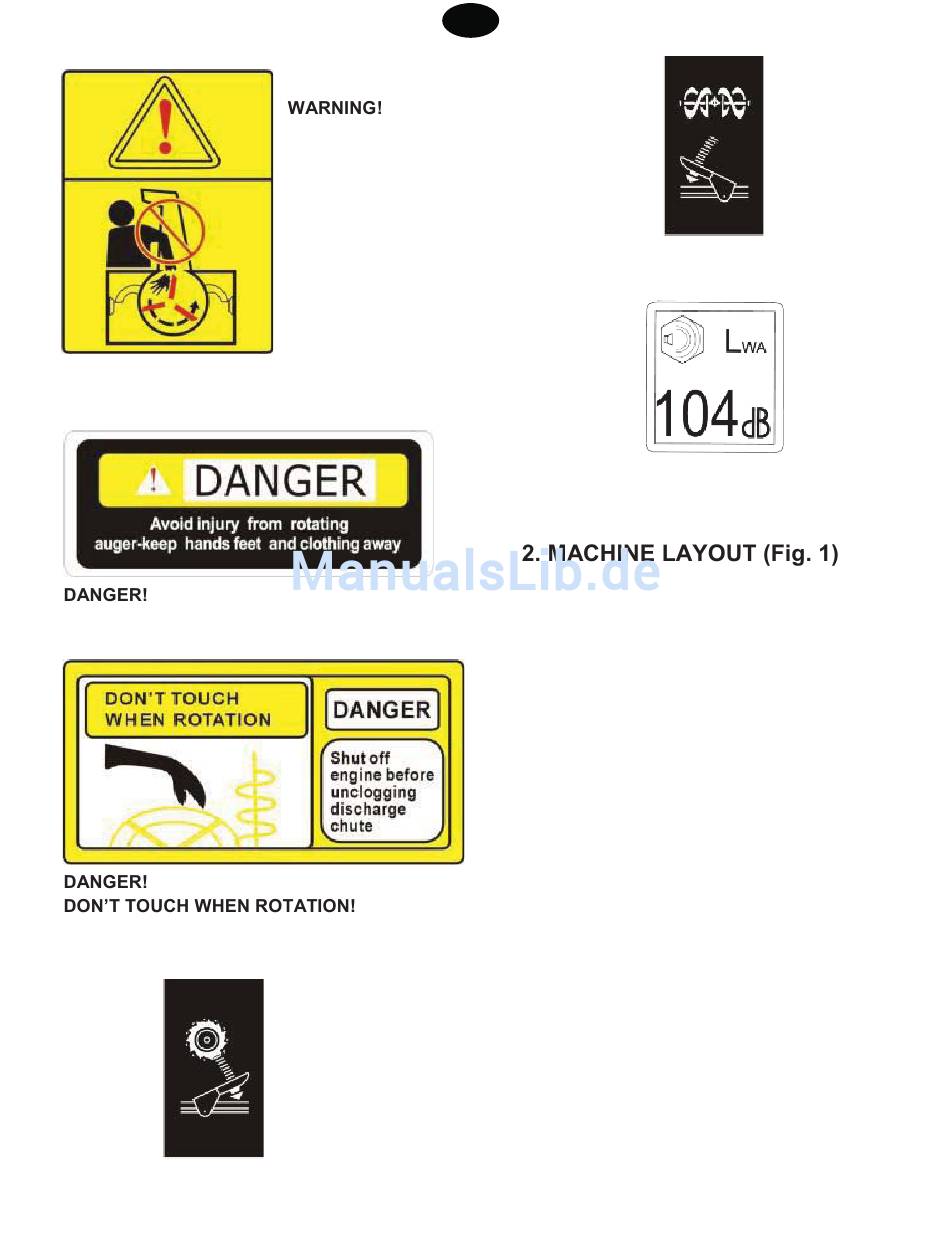

Avoid injury from rotating auger –
keep hands, feet and clothing away!
Shut off engine before unclogging discharge
chute!
Levers for the drive (Actuating lever right)
EN
Risk of injury from
rotating parts!
Never access into the
auger or into
the chute during the
operation of the
Machine.
Levers for the cutting unit (Actuating lever left)
Guaranteed sound power level according to
Directive 2000/14/EC
1 Push bar
2 Control lever for drive unit
3 Control lever for auger unit
4 Adjustment crank for snow ejection unit
5 Gear shift lever
6 Tank
7 Muffler
8 Snow ejection unit
9 Auger unit
10 Sliding shoes
11 Wheels
12 Throttle lever
13 Choke lever
14 Primer
15 Starter grip-recoil starter
16 Ignition switch
17 Knob fuel switch
18 Oil filler cap/dipstick
19 Fuel filler cap
20 Shear pins
