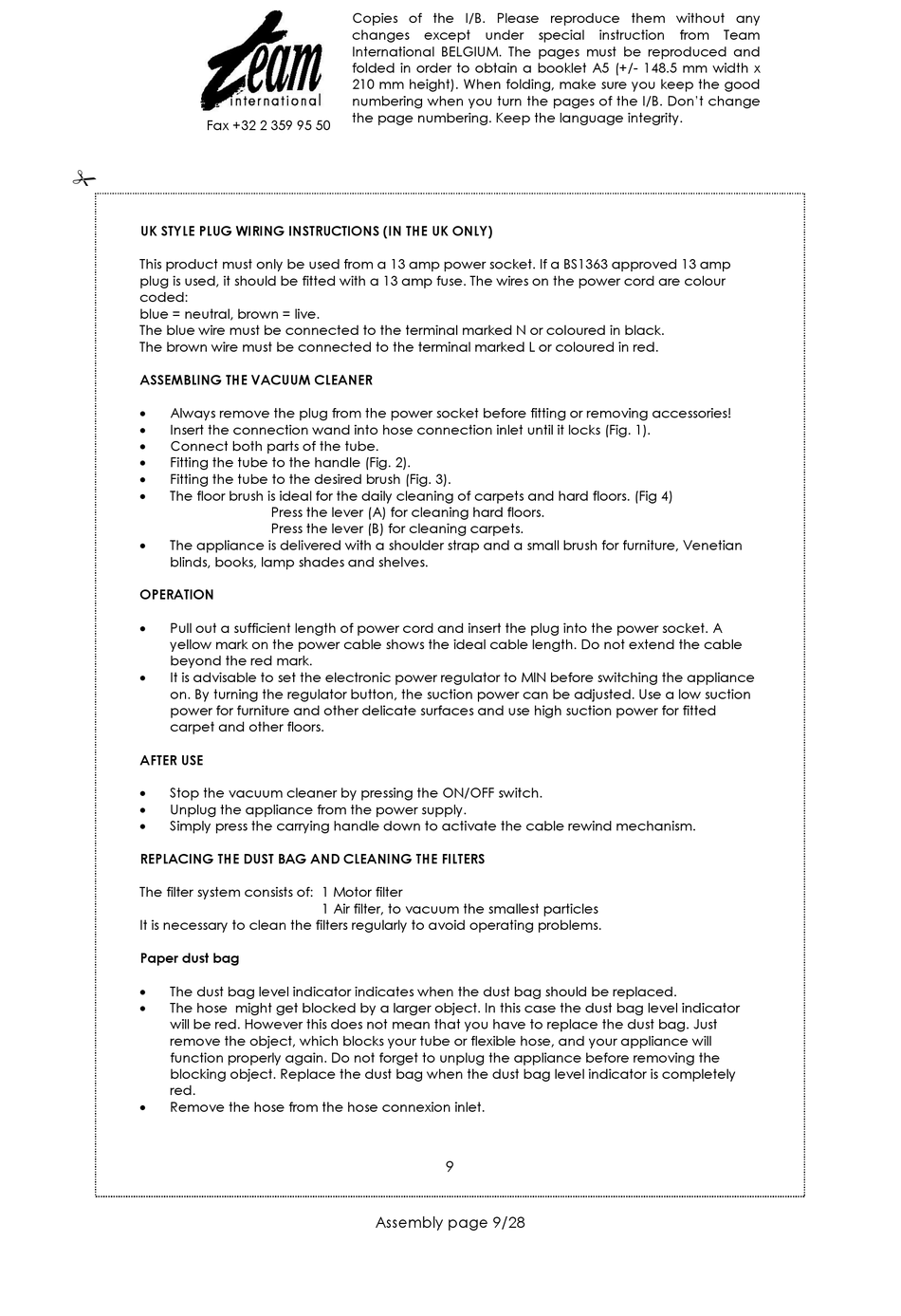

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)
This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp
plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour
coded:
blue = neutral, brown = live.
The blue wire must be connected to the terminal marked N or coloured in black.
The brown wire must be connected to the terminal marked L or coloured in red.

ASSEMBLING THE VACUUM CLEANER

 Always remove the plug from the power socket before fitting or removing accessories!
 Insert the connection wand into hose connection inlet until it locks (Fig. 1).
Connect both parts of the tube.

 Fitting the tube to the handle (Fig. 2).
 Fitting the tube to the desired brush (Fig. 3).
 The floor brush is ideal for the daily cleaning of carpets and hard floors. (Fig 4)
 The appliance is delivered with a shoulder strap and a small brush for furniture, Venetian
blinds, books, lamp shades and shelves.

OPERATION

 Pull out a sufficient length of power cord and insert the plug into the power socket. A
yellow mark on the power cable shows the ideal cable length. Do not extend the cable
beyond the red mark.
 It is advisable to set the electronic power regulator to MIN before switching the appliance
on. By turning the regulator button, the suction power can be adjusted. Use a low suction
power for furniture and other delicate surfaces and use high suction power for fitted
carpet and other floors.
AFTER USE
 Stop the vacuum cleaner by pressing the ON/OFF switch.
 Unplug the appliance from the power supply.
 Simply press the carrying handle down to activate the cable rewind mechanism.
REPLACING THE DUST BAG AND CLEANING THE FILTERS
The filter system consists of: 1 Motor filter
It is necessary to clean the filters regularly to avoid operating problems.
Paper dust bag
 The dust bag level indicator indicates when the dust bag should be replaced.
 The hose might get blocked by a larger object. In this case the dust bag level indicator
will be red. However this does not mean that you have to replace the dust bag. Just
remove the object, which blocks your tube or flexible hose, and your appliance will
function properly again. Do not forget to unplug the appliance before removing the
blocking object. Replace the dust bag when the dust bag level indicator is completely
red.
 Remove the hose from the hose connexion inlet.
Copies of the I/B. Please reproduce them without any
changes except
International BELGIUM. The pages must be reproduced and
folded in order to obtain a booklet A5 (+/- 148.5 mm width x
210 mm height). When folding, make sure you keep the good
numbering when you turn the pages of the I/B. Don‟t change
the page numbering. Keep the language integrity.
Press the lever (A) for cleaning hard floors.
Press the lever (B) for cleaning carpets.
1 Air filter, to vacuum the smallest particles
