ac current (50/60Hz)
Range Resolution
200A 100mA
frequency (automatic range sel.)
Range Resolution
40-51Hz 0,01Hz
51-510Hz 0,1Hz
0,51-1kHz 0,001kHz
inward sensitivity: 5a ac rms min.
Non-contact AC
voltage
U
sage

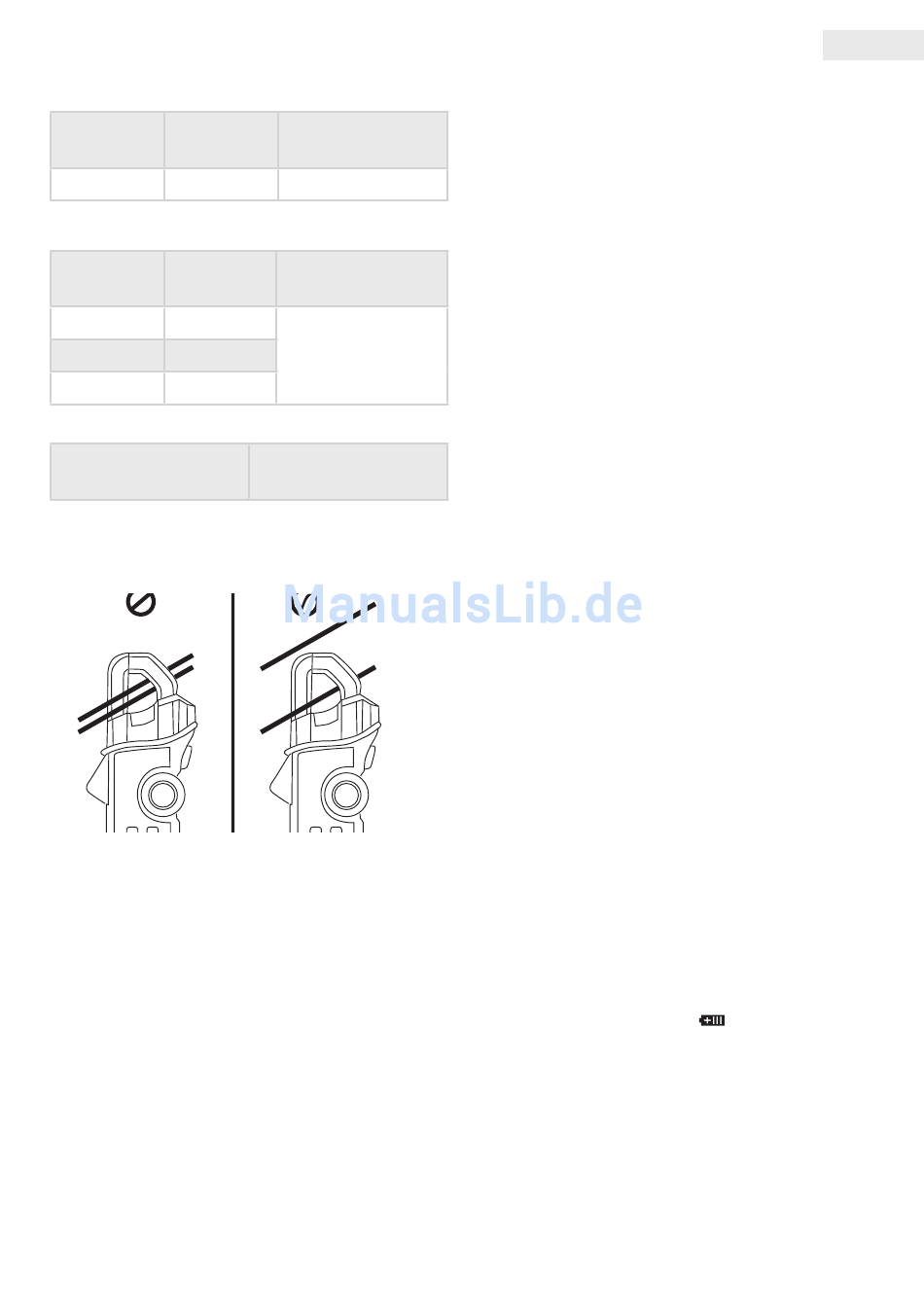

ac current measurement
+
-
Set the function selection switch to ACA range.
•
Pull the trigger and place the clamps over and
•
around the measured conductor. Do not leave
any space between the ends of the clamps.
Read the ACA value from the screen.
•
dc current measurement
Set the function selection switch to DCA
•
range.
Press the ZERO button to nullify the display
•
Pull the trigger to open the clamps.
•
Place the clamps over and around the
•
measured conductor. Do not leave any space
between the ends of the clamps.
Read the DCA value from the screen.
•
non-contact ac voltage measurement
Touch the detector to the measured
•
conductor's insulation.
Accuracy
(% read value)
± (3,0% + 8 digit)
Accuracy
(% read value)
± (1,2% + 5 digit)
100V AC - 600V AC
50/60Hz
+
-
If the voltage can be measured, the indicator
•
will light up.
Warning: danger of deadly electric shock!
always verify the detector on a known circuit
before usage!
note: the detector is very sensitive. static electricity or
other energy sources may cause distortion in the proper
functioning of the sensor.
frequency measurement
Set the function selection switch to the Hz
•
position.
Place the clamps around the measured cable.
•
Do not leave any space between the ends of
the clamps.
Read the frequency value from the screen.
•
led lamp
Press and hold the top button on the device to
•
turn on the LED lamp (fig. 1 and 2). To turn it
off let go of the button.
data hold
To hold the measured data press the "Hold
•
Backlight" button. The measured value gets
held on the screen. To return to normal mode
press the "Hold Backlight" button again.
screen backlight
Press and hold the "Hold Backlight" button
•
for about 2 seconds. The data hold function
also activates, you can set that back to normal
mode with another short press of the button.
To turn off the backlight hold down the button
again for 2 seconds.
B
attery replaCeMent
If the low battery signal "
•
screen the battery needs to be replaced.
Unscrew the lid of the battery container, but
•
make sure the device is turned off.
Replace the 2 1,5V AAA batteries.
•
Screw the lid of the battery container back.
•
EN
User Manual
" appears on the
