Step 3
(b)
C
(x4)
D15.4*2T
M8*20L

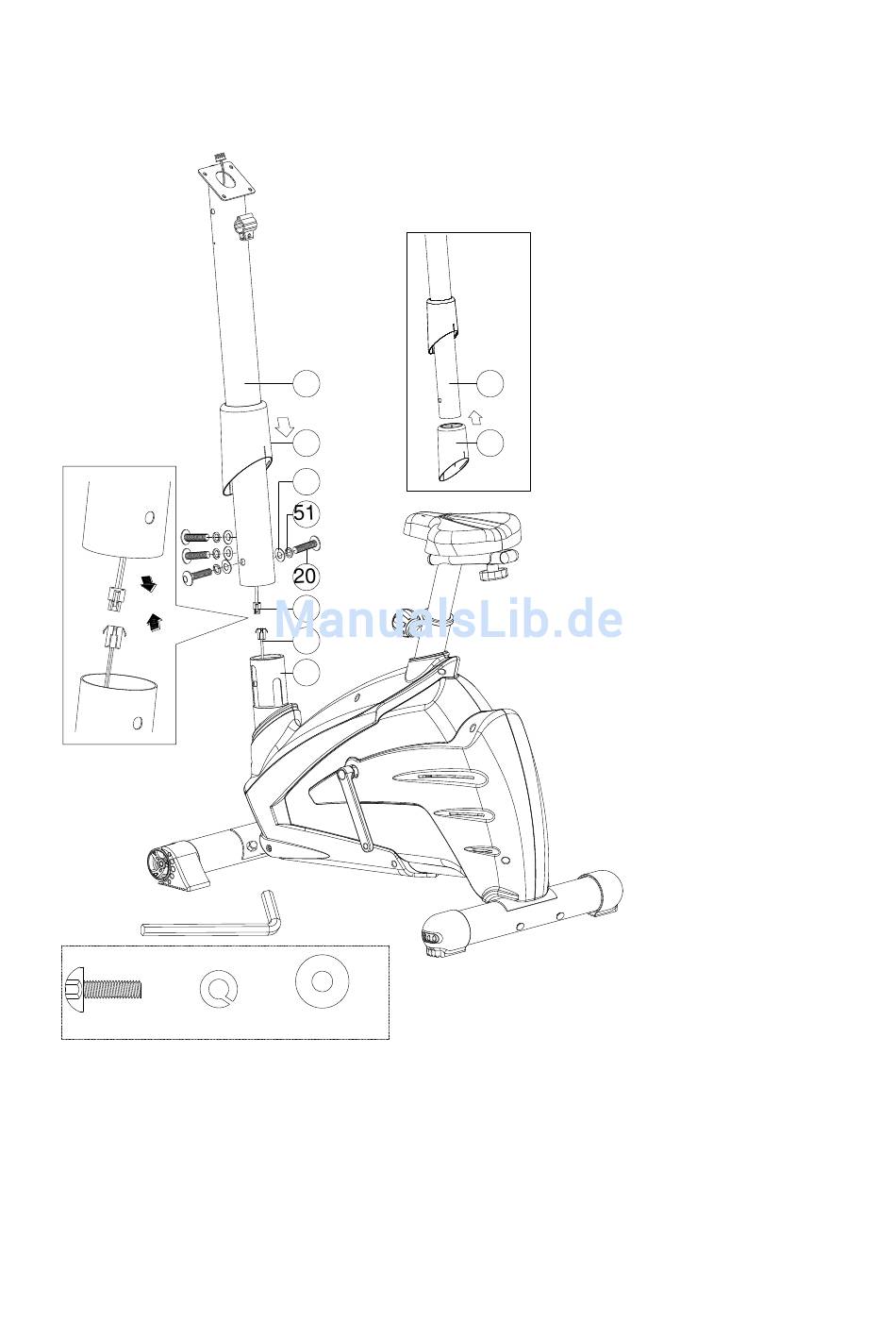

1. Assemble the upper protective cover (28) to the handlebar post (29) shown as fig. a.
2. Connect the upper computer cable (40) with the lower computer cable (65) shown as fig. b.
3. Assemble the handlebar post (29) to the main frame (1) by the Allen bolt (20), the spring washer (51)
and the curved washer (53).
29
28
53
40
65
1
D22*1.5T
9
